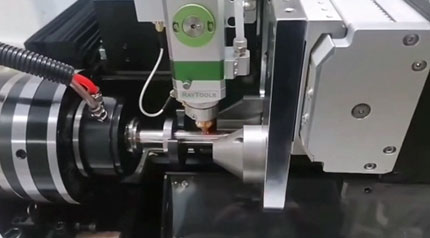

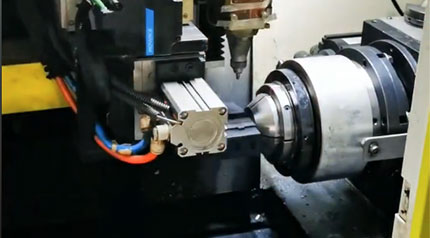

Collet Chuck

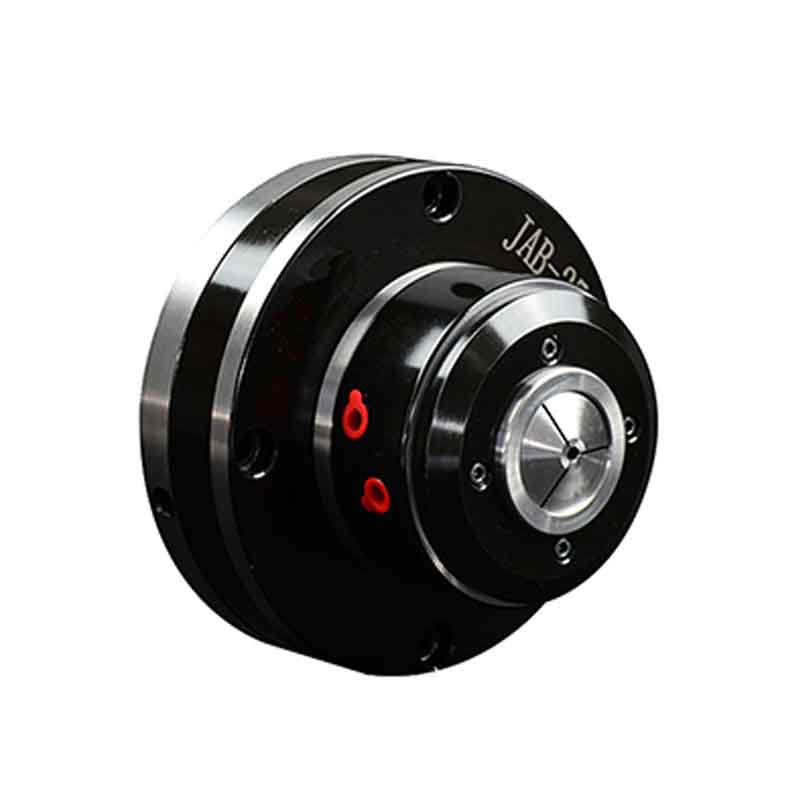

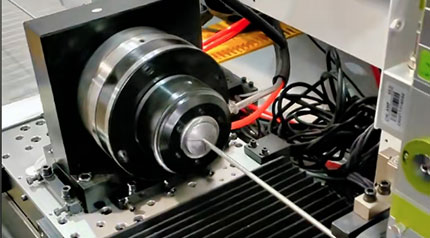

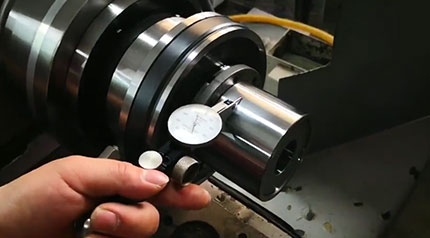

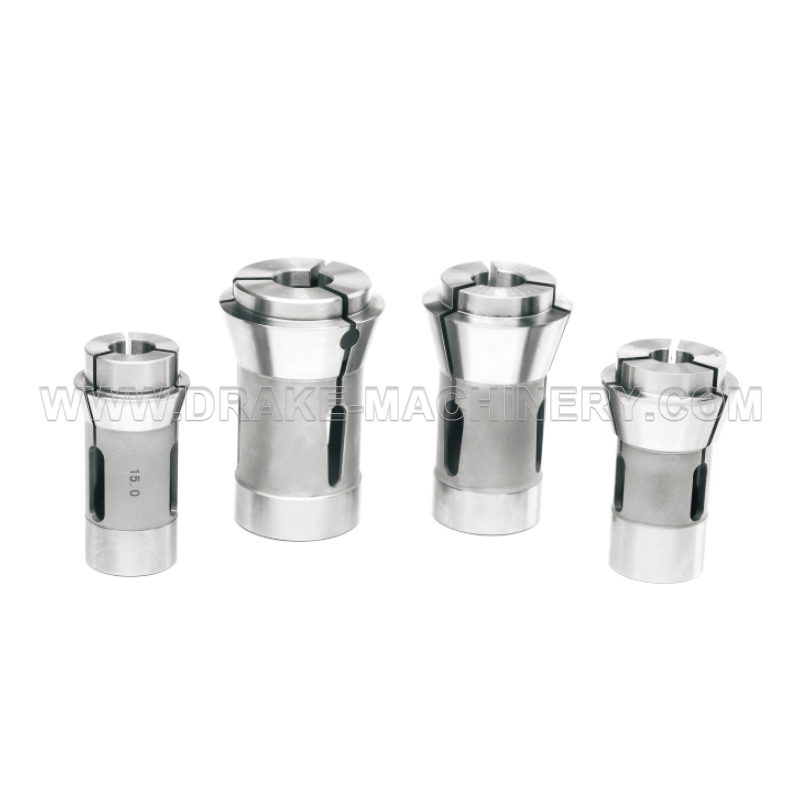

Drake precision technology (changzhou) Co.,Ltd. is a technology enterprise. In order to meet demands of the market, Drake is specialized in the research, development, production and sale of fixture. DRAKE manufactures high quality 2J CNC collets, 5C collets, 16C collets and 3J collets as well as many other sizes such as 1C collets and 3C collets.DRAKE Collet ChuckA Collet Chuck is a type of tool holder used in machining operations to hold workpieces securely in place while they are being machined. It is designed to grip the workpiece tightly and accurately, allowing for precise and efficient machining operations. The collet chuck is a preferred tool holder for applications that require high precision, such as milling, drilling, and reaming. A collet chuck is an essential tool in machining, widely used for holding workpieces or tools in both CNC lathe and manual lathe operations. When precision and repeatability are critical, a hydraulic collet chuck is often preferred for its ability to provide consistent clamping force, making it ideal for CNC collet chucks. There are various CNC collet types available, designed to meet the specific needs of different machining processes. For instance, a lathe collet chuck is specially engineered to securely hold cylindrical workpieces, which is crucial in CNC lathe operations. Leading collet chuck manufacturers offer a range of products that cater to the diverse demands of the industry, ensuring that machinists have the right collet chuck for lathe or CNC collet chuck to achieve high-precision machining tasks.DRAKE can provide all the correct mounting adapters for spindles and rotary tables, as well as drawtube adapters, based on design information provided by the customer to fit your spindles, rotary tables and other machines. to suit your spindle, rotary table and drawtube requirements.These precision lathe chucks will mount directly on American Standard (A4, A5, A6, A8) and Camlock (D4, D5, D6, D8) type spindles. DRAKE lathe chucks are also frequently used on cylindrical grinders, rotary tables and many other machines. The DRAKE Pneumatic Collet Chuck Assembly can be used to convert CNC lathes and grinders to workholding units with 16C, 2J, 3J and 5C collets.    These productivity enhancing CNC collet systems have built-in concentricity adjustment (less than 0.00050" TIR) and can be installed on all standard US spindles in less than 20 minutes. Only one complete lathe collet assembly is required, as each spindle adapter in the assembly accepts any DRAKE 16C, 2J, 3J and 5C collet adapters. The conversion is done quickly and easily by simply removing and replacing the six bolts on the collet adapter, which can also be used on Camlock-type spindles.How does DRAKE make a collet chuck that satisfies you?The manufacturing process of collet chuck can vary depending on the specific design and materials used, DRAKE usually follows the following steps to manufacture collet chucks for our customers.Design: The first step in manufacturing a collet chuck is to design the product. This involves creating detailed drawings and specifications that define the size, shape, and material requirements for the chuck.Material selection: Once the design is complete, the next step is to select the appropriate materials for the collet chuck. The chuck is typically made from high-quality steel or other durable metals that can withstand the rigors of machining operations.Machining: The manufacturing process for a collet chuck involves a variety of machining operations, including milling, drilling, turning, and grinding. These operations are used to shape the various components of the chuck, including the body, collet, and locking mechanism.Heat treatment: After the components have been machined, they are typically heat-treated to improve their strength and durability. This involves subjecting the components to high temperatures and then cooling them in a controlled manner.Assembly: Once the components have been machined and heat-treated, they are assembled into a complete collet chuck. This involves fitting the collet into the chuck body and attaching the locking mechanism.DRAKE has a high level of precision capability and a reservoir of expertise to ensure that the final collet chuck meets the stringent requirements of the machining operation.Understanding the Accuracy of Collet ChucksDRAKE Collet Chuck Benefits and FeaturesDRAKE's extensive line of CNC collet chucks offers many advantages over conventional 3-jaw lathe chucks - especially for workpieces less than 4" in diameter.  Some of these advantages include:Available in American Standard, Camlock and special spindle noseCNC lathes for standard 16C, 2J, 3J and 5C collets, expansion collets and 5C step colletsAccepts 16C, 2J, 3J and 5C collet adapters per spindle mountBuilt-in concentricity adjustment (below 0.00050" TIR)Table driven by machine closuresLight weight allows for higher turning speedsBalanced design for smooth operationEasy and fast setup (less than 20 minutes)Cartridges are unaffected by centrifugal forcesSmall body diameter reduces tool interferenceContinued cost reductionDRAKE  - Collet Chuck ManufacturerWe specialize in manufacturing collet chucks with production capacity, CE and ISO certifications, and dozens of patent certificates. Currently, we are in the process of applying for high-tech enterprise status. Having successfully secured bids from some of the world's top 500 enterprises, our workshop spans 15,000 square meters, and the company has invested over $20 million in state-of-the-art production equipment.We have exported our products to more than 80 countries worldwide, backed by 10 years of export experience. Our strength lies in robust after-sales service and the capability to facilitate foreign trade orders.Our standard products follow common installation methods aligned with international standards. They can serve as direct replacements for similar products from renowned brands.We are equipped to accommodate customized products, accept orders for non-standard products, and welcome OEM orders.

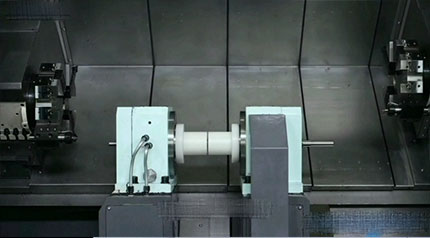

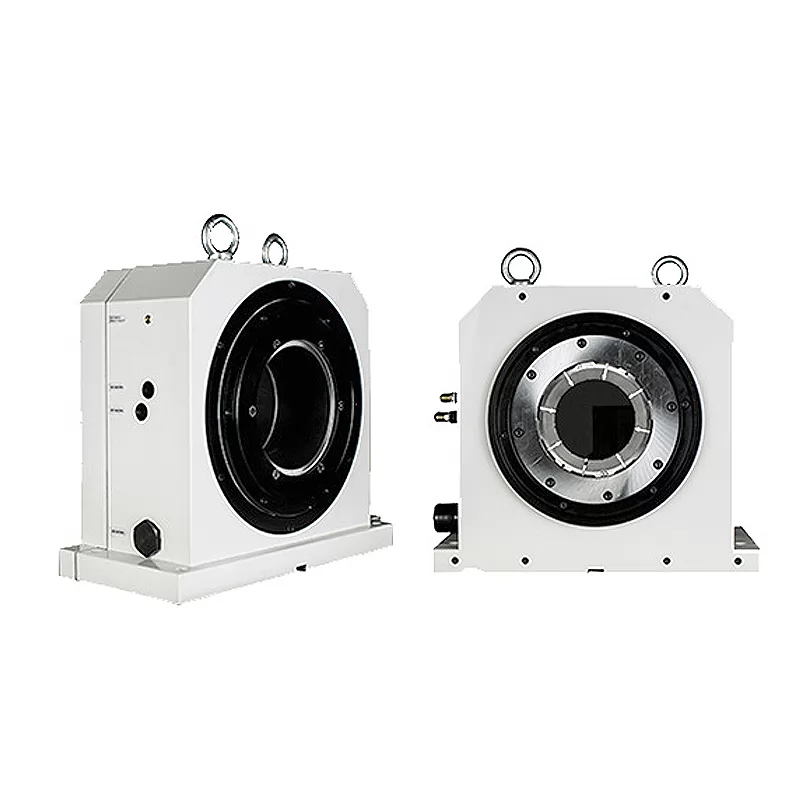

Bi-Directional Spindle Clamp Seat

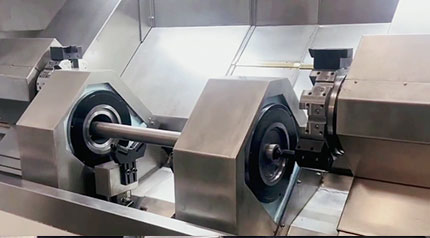

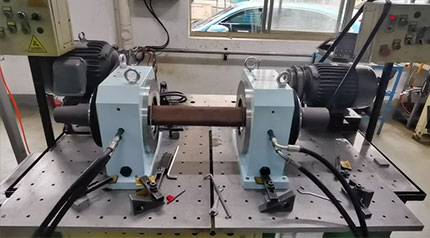

The bi-directional spindle clamp seat is a high-precision mechanical component designed to provide stable, reliable clamping in both forward and reverse spindle rotation. Ideal for CNC machining centers and automatic tool changers, this component ensures consistent axial positioning, vibration resistance, and high clamping repeatability. Engineered with durability and performance in mind, it supports precision machining processes that require rigid and symmetrical clamping solutions.Bi-Directional Spindle Clamp Seat Characteristics:It can be processed at both ends simultaneously, with double efficiency of "zero" concentricity at both ends, greatly reducing the volume and cost. It is a special tool for shaft and tube machining and a higher speed design to perfectly solve various processing requirements. It greatly reduces the length of the spindle. For short material processing, retractable and knife-type designs solve the length limitation of the spindle and make automatic feeding at the rear easier. The configuration of extended head and the use of movable two-set spindle clamping completely solve the double-head machining of super-long workpiece. The latest cartridge clamp design is super-large clamping stroke, which perfectly solves the clamping problem of large tolerance workpiece. (Special clamp products can be designed separately for customer products and processing characteristics)Bi-Directional Spindle Clamp Seat Application: Two-end special turning machine, spindle, shaft and sleeve processing. It is widely used in automobile, electromechanical and other manufacturing industries involving shaft applications.At Drake Machinery, we supply advanced spindle clamp seats with customizable specifications to meet the requirements of different spindle systems. With optimized structure and high-quality materials, our products offer superior performance in high-speed, heavy-duty, and automated machining environments. OEM and special design requests are welcome.Partner with a professional machine tool fixture supplier for long-lasting, performance-driven solutions in your production line.

Turret

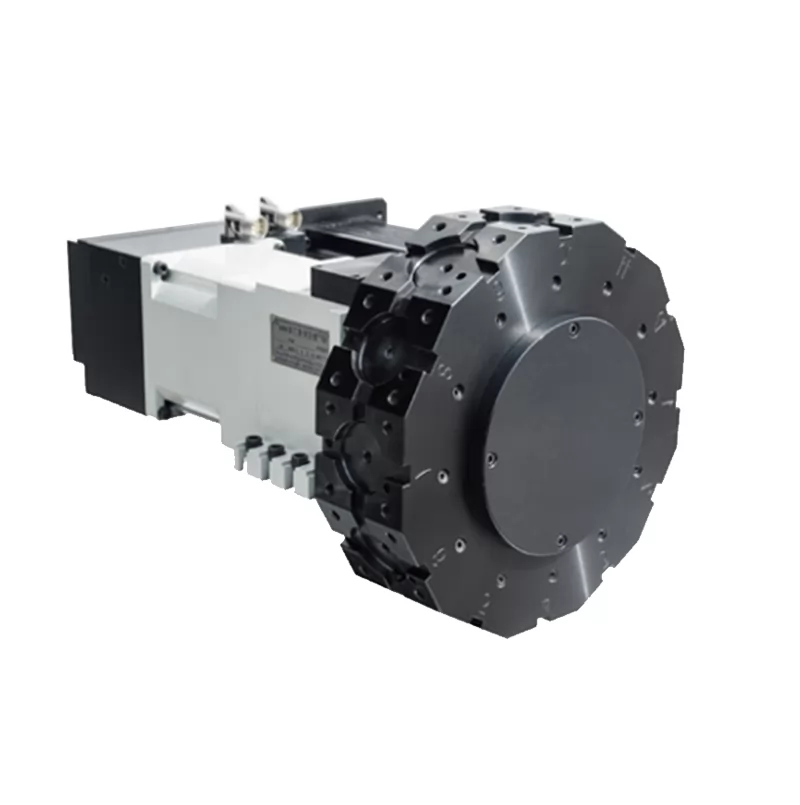

Drake CNC lathe turret is a high-performance tool that offers precision and versatility for a range of turning applications. It features a robust construction with high-strength materials that ensure long-lasting durability and reliable operation. Our turret is designed with advanced technology that enables fast and accurate tool changes, reducing cycle times and increasing productivity. It is available in a variety of sizes and configurations to suit your specific needs, and it can be customized with additional features such as live tooling and automatic tool changers. Our CNC lathe turret is an ideal choice for use in industries such as aerospace, automotive, and medical manufacturing. Get in touch with us today to discuss your needs!Functional analysis of servo turretCNC Lathe TurretVertical tool CNC Turret adopts the working principle of worm gear transmission, face-tooth coupling as fine indexing mechanism, large screw locking and Hall unit sending signal, which has the features of high repeatability, smooth rotation and multi-station. It is the best choice for machining complex parts.Indexing Turret adopts the working principle of coupling as a fine indexing mechanism. It has the features of high repetition accuracy, indexing without lifting table, and large locking force. It is the ideal product for machining equal parts.The CNC Turret power rotates with the direct drive motor. It indexes the position by precise three-piece face-tooth coupling and hydraulic clamping/unclamping of the tool holder disc. It features high rigidity, instant response, high control accuracy, smooth running from low speed to high speed, intelligent bi-directional indexing and shortest path positioning, multiple tool positions, built-in cooling, etc. It is the best choice for high-grade CNC lathe.Power Tool CNC Turret is based on Servo Turret and equipped with servo power head. The advantages are fast tool change, high hydraulic locking force, fixed tools can be installed in various positions and rotary tools can also be installed so that the lathe can perform turning, facing, grooving, tapping, milling polygons and putting the top. The shape is held at one time. This Turret is a key component of high-grade CNC turning center. Selecting Turret Model1.When selecting the Turret model, please check each parameter. Select the number of stations according to the number and complexity of the part program.2. Select the tool specification according to the machine tool model and cutting force. Select front type or rear type Turret according to the cutting direction of the machine tool.3、After the horizontal Turret boring head is installed, bore the inner hole by yourself according to the size of the boring bar and mark it accordingly. When installed later, the tool should be fixed in place.4. the distance from tool protruding out of the upper casing generally does not exceed 2/3 of the upper casing size. please note when placing an order if the limit is exceeded.5. It is forbidden to touch with hands or other things when Turret is running to avoid injury or damage.6. If customers have special requirements or parameter changes, please provide information and contact with our company.
