Home > Products > Tool Holder > VDI SERIES

Radial Drilling And Milling Heads Offset

Inquire Now Next

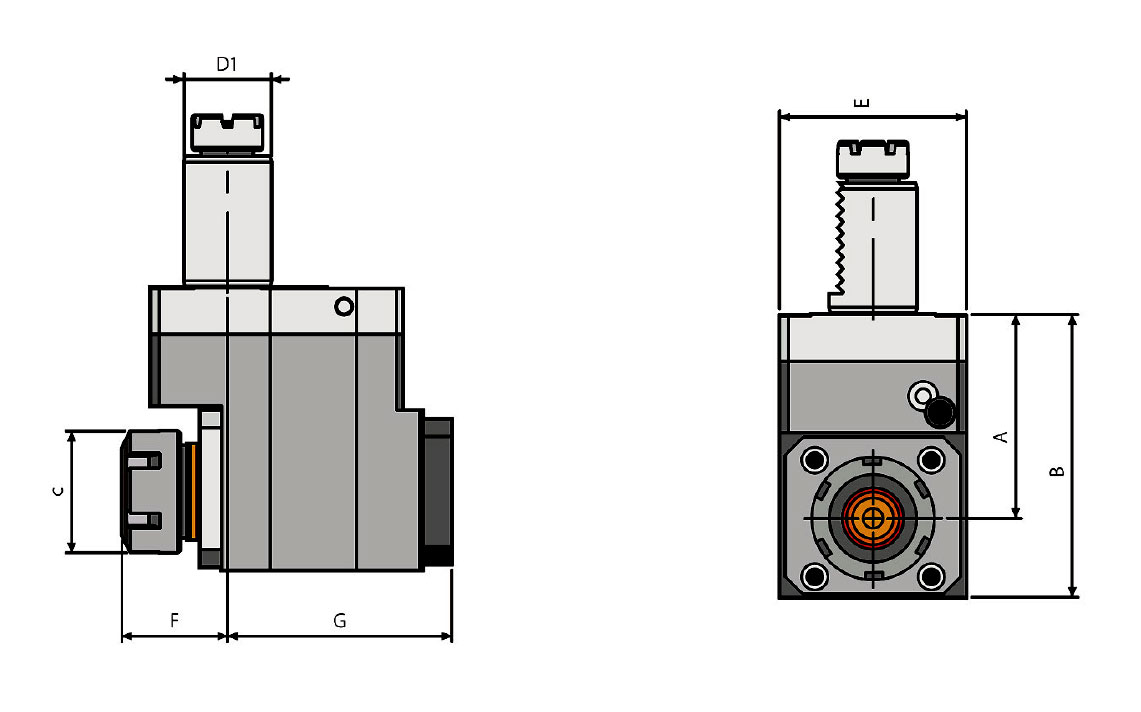

Product Size

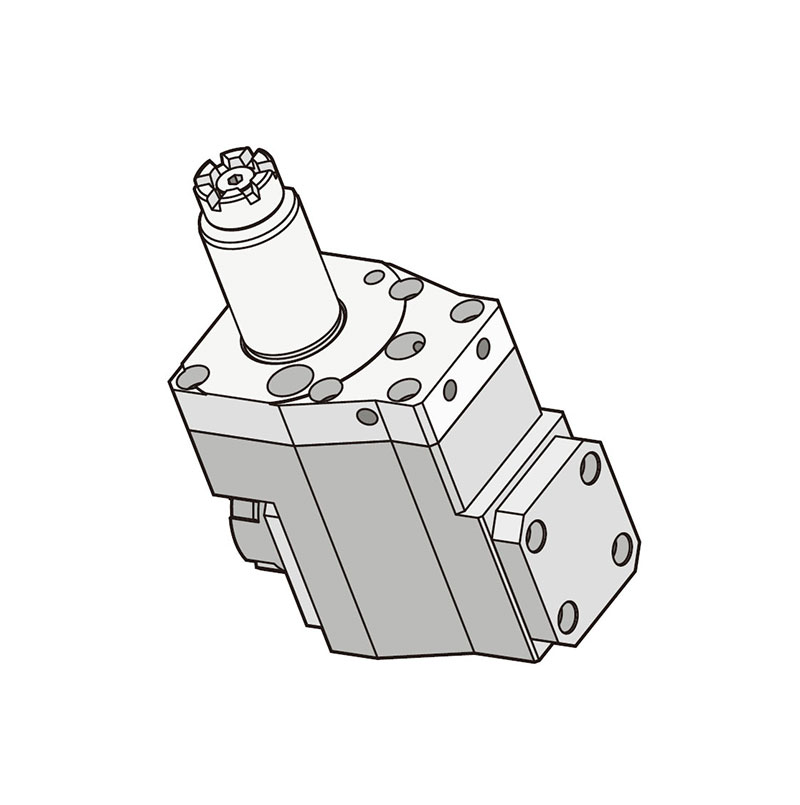

Radial Drilling And Milling Heads Offset

Product Parameters

Order NO.	D1	A	B	C	E	F	G	Maxium R.P.M	N.W.Kg
HB30-ER25	30	70	97	42	64	32	75	5000	3.9
HB40-ER32	40	90	118	50	80	42	112	5000	8.5
HB50-ER40	50	90	128	63	86	45	112	5000	10.8
