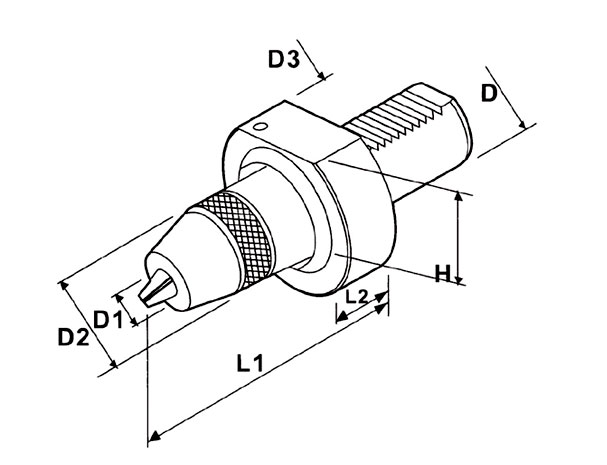

Product Size
Product Parameters
| D | D1 | D2 | D3 | H | L1 | L2 | Order No. |
| 30 | 0.5-8 | 36 | 68 | 28 | 71 | 22 | CHUCK-30-08 |
| 30 | 1-13 | 51 | 68 | 28 | 85 | 22 | CHUCK-30-13 |
| 40 | 1-13 | 51 | 83 | 32.5 | 85 | 22 | CHUCK-40-13 |
| 40 | 1-16 | 57 | 83 | 32.5 | 102 | 22 | CHUCK-40-16 |
| 50 | 1-13 | 51 | 98 | 35 | 85 | 30 | CHUCK-50-13 |
| 50 | 1-16 | 57 | 98 | 35 | 90 | 30 | CHUCK-50-16 |
| 60 | 1-13 | 51 | 123 | 42.5 | 85 | 25 | CHUCK-60-13 |
| 60 | 1-16 | 57 | 123 | 42.5 | 90 | 25 | CHUCK-60-16 |
-
