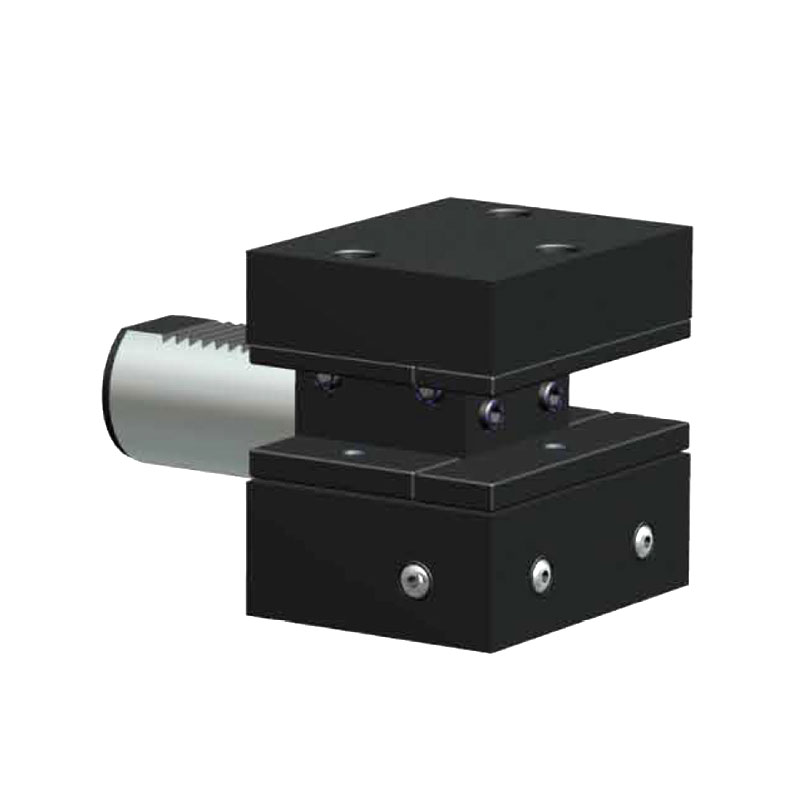

D Series Multi-Station Outer Diameter Tool Holder D2

Inquire Now Next

Product Size

D Series Multi-Station Outer Diameter Tool Holder D2

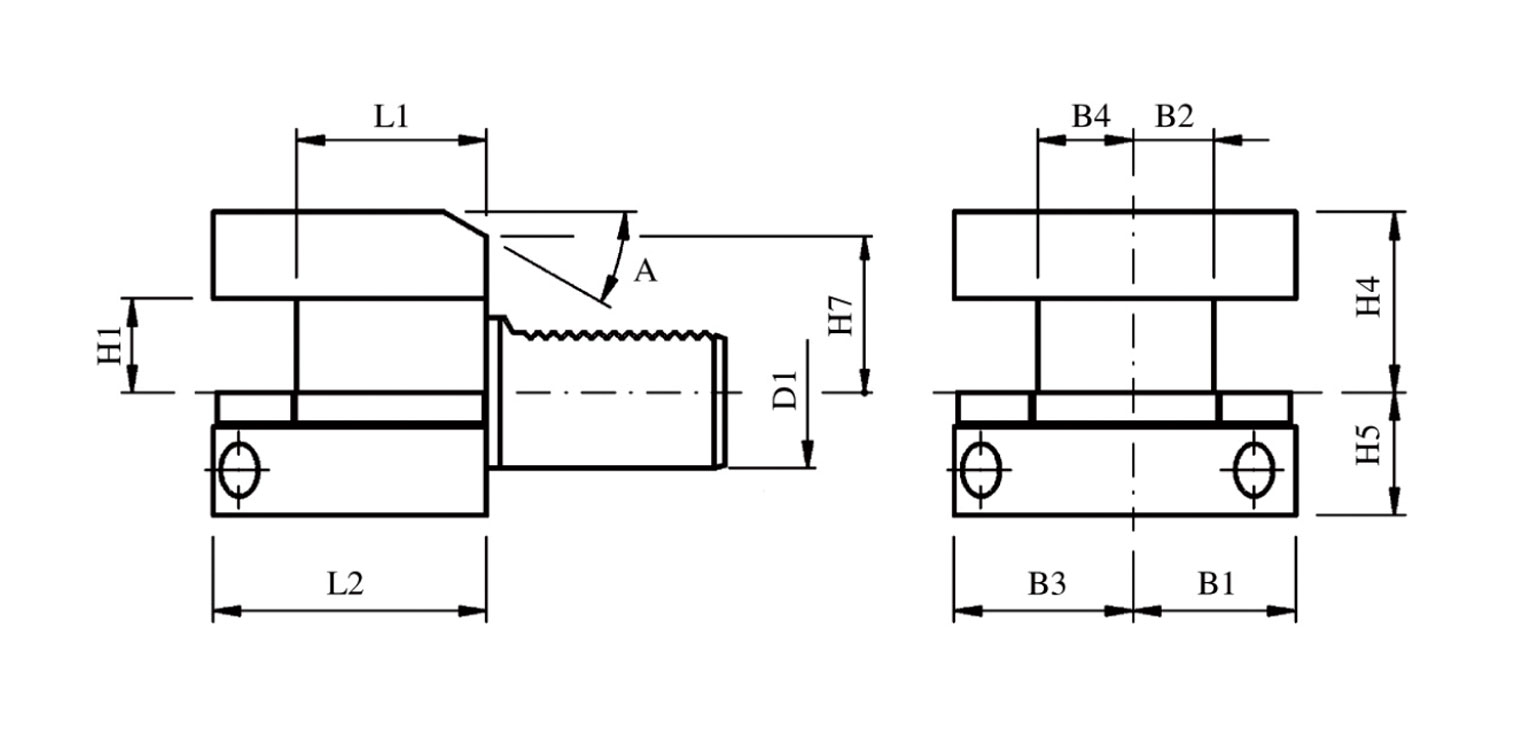

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2 +0.3	B3	B4 +0.3	H4	H5	H7	L1 +0.5	L2	A
D2-25×16	25	16	33	19	33	19	30	25	25	34	48	30
D2-30×20	30	20	35	17	41	23	38	35	28	42	60	25
D2-40×25	40	25	42.5	20.5	47.5	25.5	48	42.5	-	50	72	-
D2-50×32	50	32	50	25.5	55	30.5	60	50	-	60	85	-
D2-60×32	60	32	57.5	32.5	57.5	32.5	62.5	62.5	-	85	110	-
