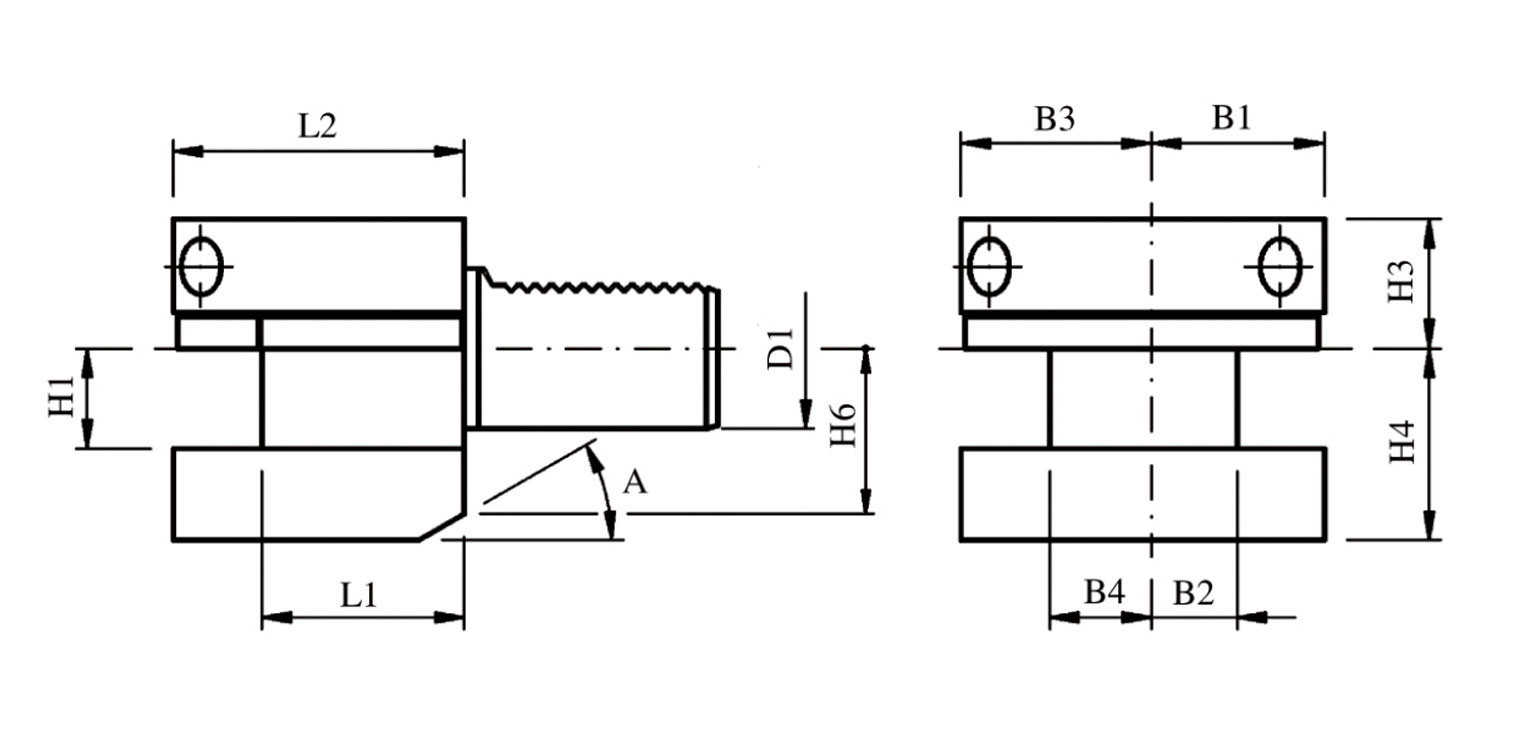

Product Size
Product Parameters
| DIN-Designation | D1 | H1 -0.1 | B1 | B2 +0.3 | B3 | B4 +0.3 | H3 | H4 | H6 | L1 +0.5 | L2 | A |
| D1-25×16 | 25 | 16 | 33 | 19 | 33 | 19 | 22 | 30 | 25 | 34 | 48 | 30 |
| D1-30×20 | 30 | 20 | 35 | 17 | 41 | 23 | 28 | 38 | 30 | 42 | 60 | 25 |
| D1-40×25 | 40 | 25 | 42.5 | 20.5 | 47.5 | 25.5 | 32.5 | 48 | - | 50 | 72 | - |
| D1-50×32 | 50 | 32 | 50 | 25.5 | 55 | 30.5 | 35 | 60 | - | 60 | 85 | - |
| D1-60×32 | 60 | 32 | 57.5 | 32.5 | 57.5 | 32.5 | 42.5 | 62.5 | - | 85 | 110 | - |
-
