Home > Products > Tool Holder > VDI SERIES

Collet Chuck Form E3

Inquire Now Next

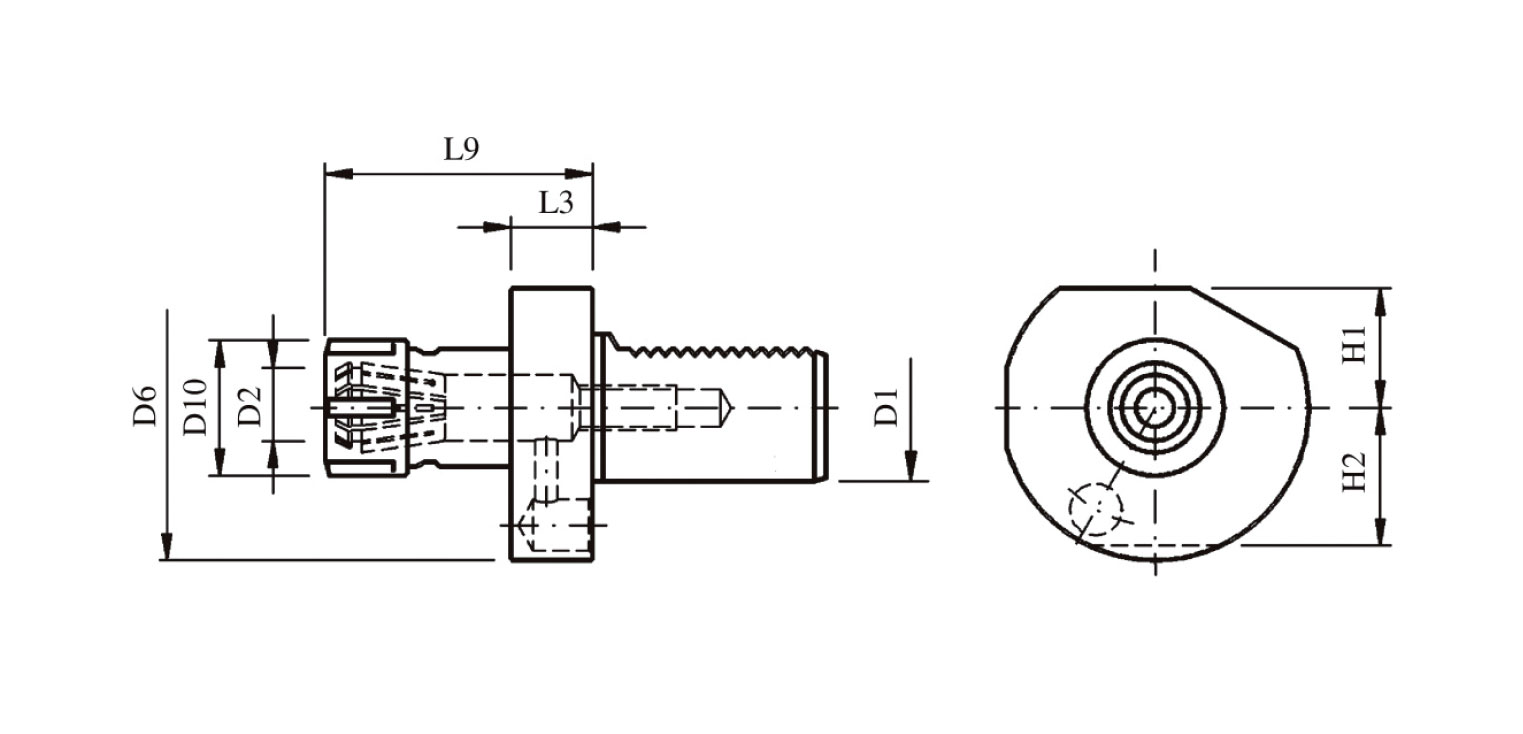

Product Size

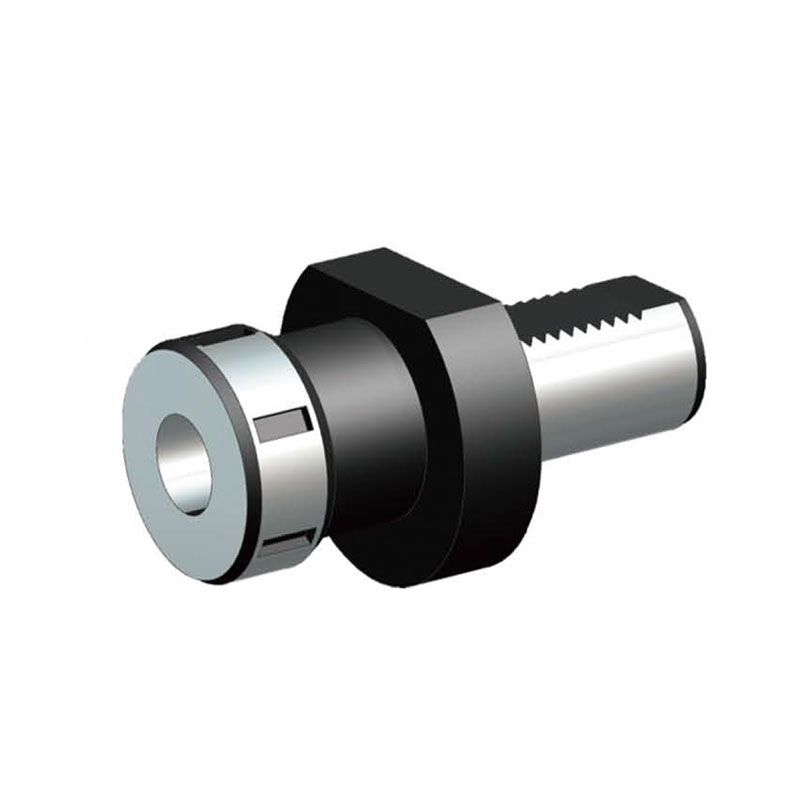

Collet Chuck Form E3

Product Parameters

DIN-Designation	D1	D2	D6	D10 max.	H1	H2	L3	L9 max.	collets
E3-20×16	20	2-16	50	43	23	23	18	57	OZ 16
E3-20×20	20	2-20	50	50	23	23	18	62	OZ 20
E3-25×16	25	2-16	58	43	25	25	18	57	OZ 16
E3-30×16	30	2-16	68	43	28	30	22	57	OZ 16
E3-30×25	30	2-25	68	60	28	30	22	75	OZ 25
E3-40×25	40	2-25	83	60	32.5	-	22	75	OZ 25
E3-40×32	40	4-32	83	72	32.5	-	22	90	OZ 32
E3-50×25	50	2-25	98	60	35	-	30	75	OZ 25
E3-50×32	50	4-32	98	72	35	-	30	90	OZ 32
E3-60×32	60	4-32	123	72	42.5	-	30	90	OZ 32
E3-60×40	60	7.5-40	123	85	42.5	-	30	100	OZ 40
