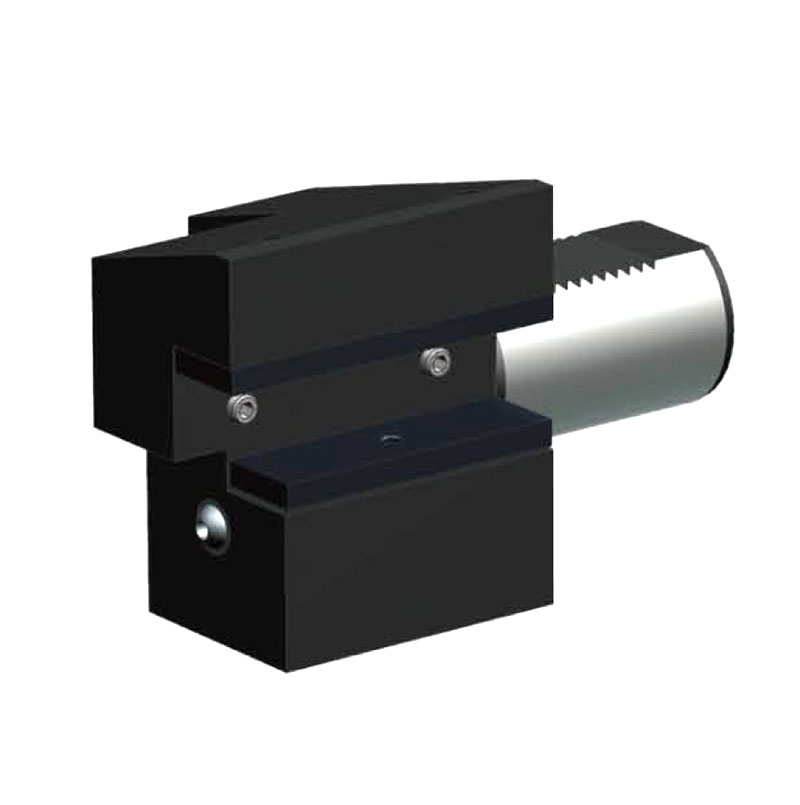

C Series Axial Outer Diameter Tool Holder C3

Inquire Now Next

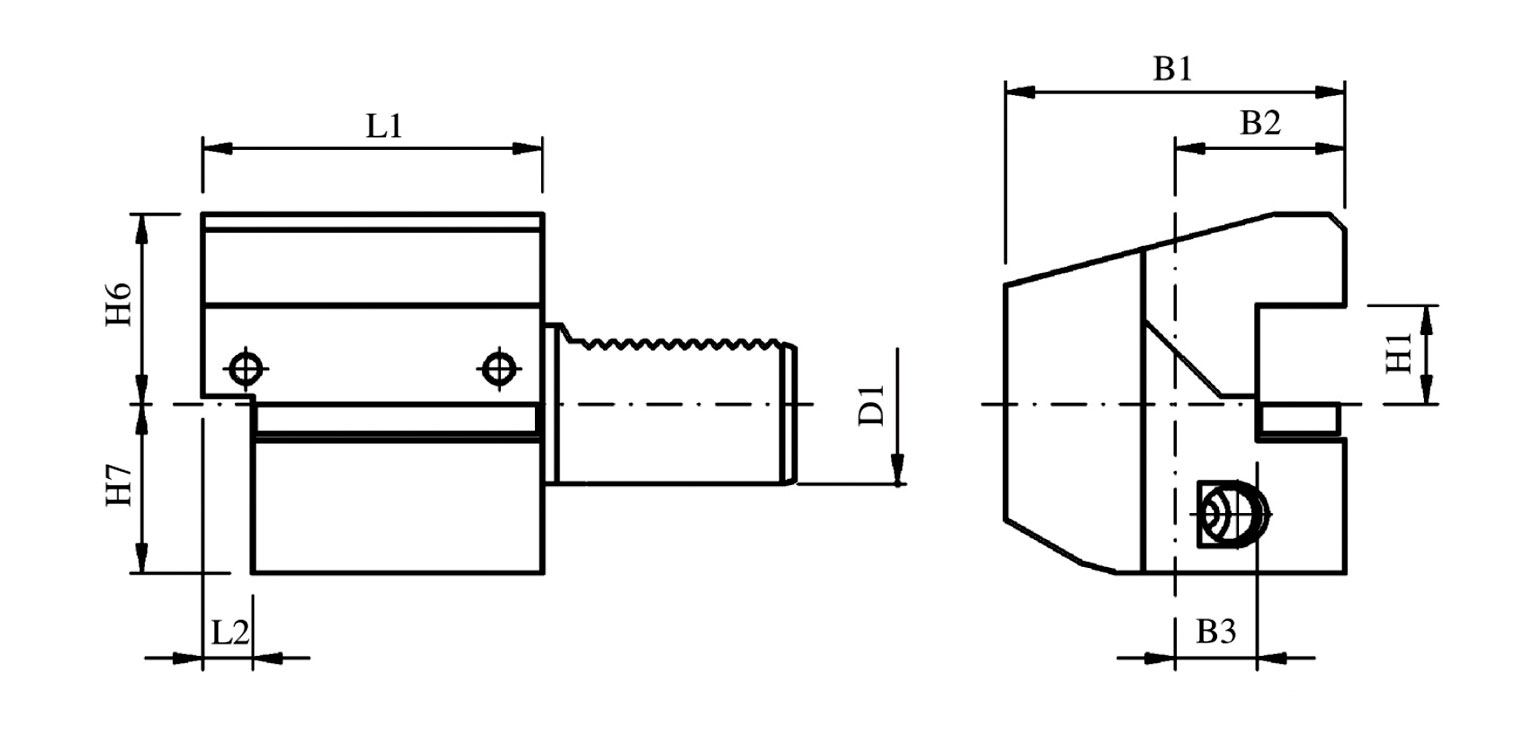

Product Size

C Series Axial Outer Diameter Tool Holder C3

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3 +0.5	H5	H6	L1	L2
C3-16×12	16	12	43	24	13	22	20	44	5
C3-20×16	20	16	52	27	13	30	25	55	7
C3-25×16	25	16	58	33	19	30	25	55	7
C3-30×20	30	20	70	35	17	38	35	70	10
C3-40×25	40	25	85	42.5	20.5	48	42.5	85	12.5
C3-50×32	50	32	100	50	25.5	60	50	100	16
C3-60×32	60	32	125	62.5	32.5	62.5	62.5	125	16
