Home > Products > Tool Holder > VDI SERIES

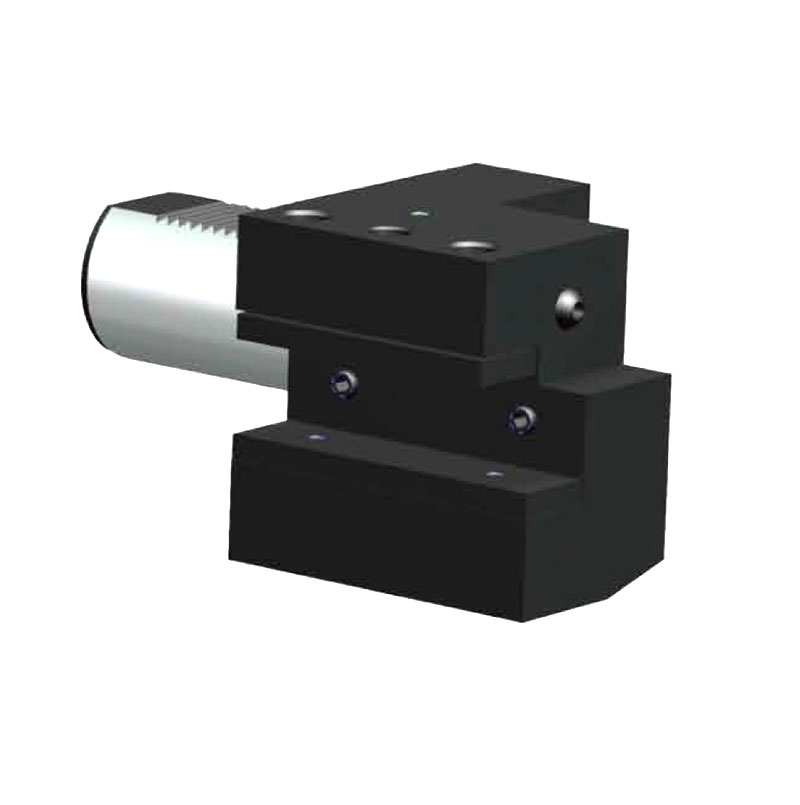

C Series Axial Outer Diameter Tool Holder C2

Inquire Now Next

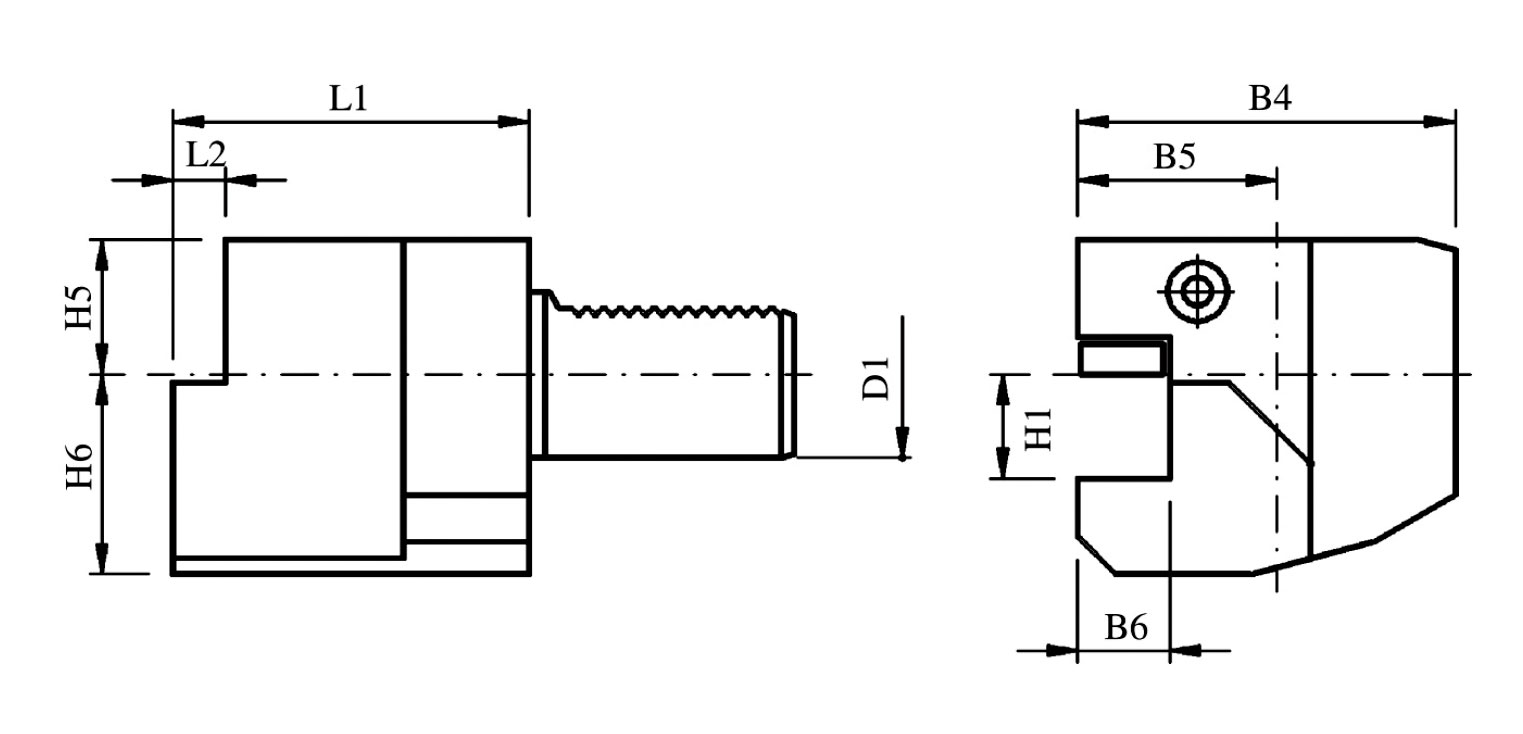

Product Size

C Series Axial Outer Diameter Tool Holder C2

Product Parameters

DIN-Designation	D1	H1 -0.1	B4	B5	B6 +0.5	H5	H6	L1	L2
C2-20×16	20	16	65	40	26	25	30	50	-
C2-25×16	25	16	58	33	19	25	30	55	7
C2-30×20	30	20	76	41	23	28	38	70	10
C2-40×25	40	25	90	47.5	25.5	32.5	48	85	12.5
C2-50×32	50	32	105	55	30.5	35	60	100	16
C2-60×32	60	32	125	62.5	32.5	42.5	62.5	125	16
