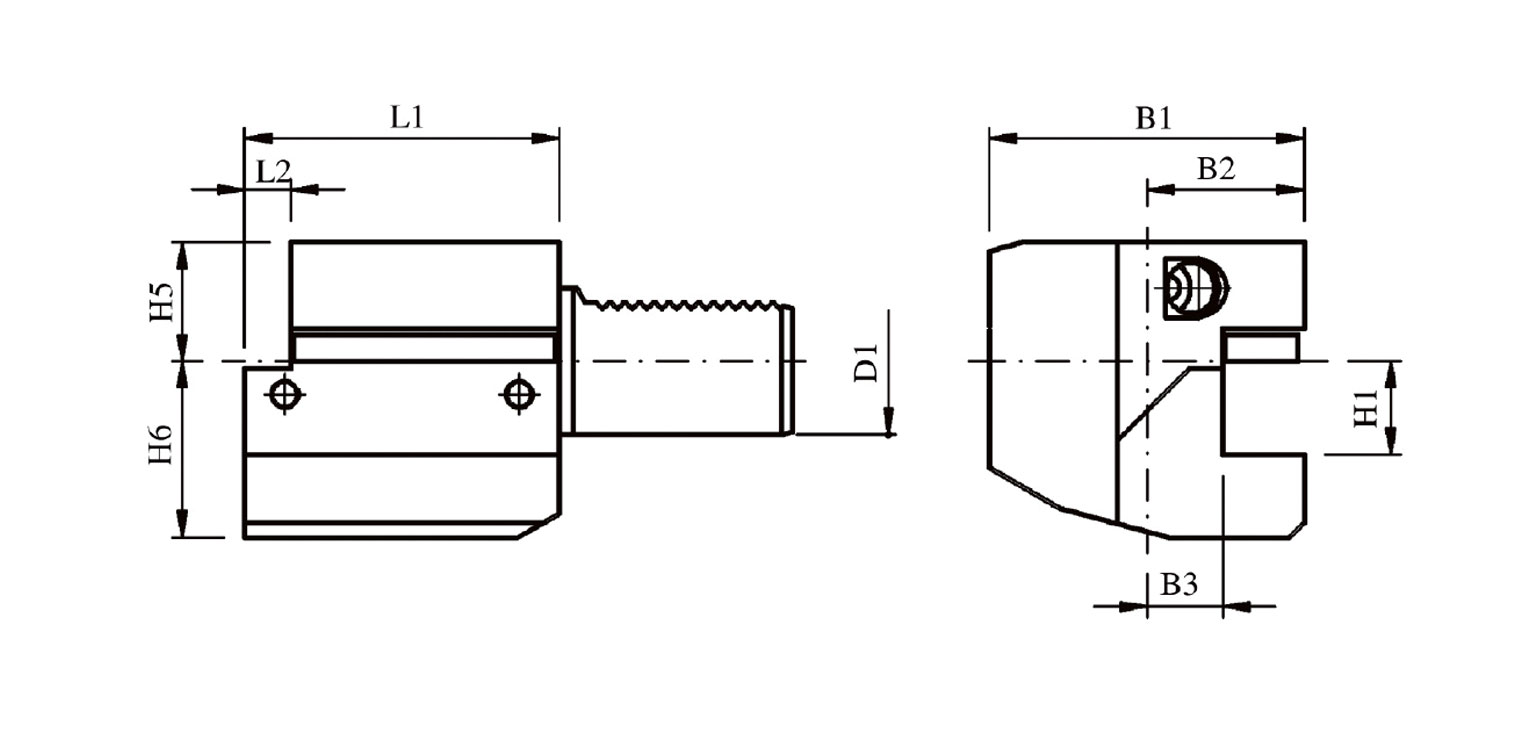

Product Size
Product Parameters
| DIN-Designation | D1 | H1 -0.1 | B1 | B2 | B3 +0.5 | H5 | H6 | L1 | L2 |
| C1-16×12 | 16 | 12 | 43 | 24 | 13 | 20 | 22 | 44 | 5 |
| C1-20×16 | 20 | 16 | 52 | 27 | 13 | 25 | 30 | 55 | 7 |
| C1-25×16 | 25 | 16 | 58 | 33 | 19 | 25 | 30 | 55 | 7 |
| C1-30×20 | 30 | 20 | 70 | 35 | 17 | 28 | 38 | 70 | 10 |
| C1-40×25 | 40 | 25 | 85 | 42.5 | 20.5 | 32.5 | 48 | 85 | 12.5 |
| C1-50×32 | 50 | 32 | 100 | 50 | 25.5 | 35 | 60 | 100 | 16 |
| C1-60×32 | 60 | 32 | 125 | 62.5 | 32.5 | 42.5 | 62.5 | 125 | 16 |
-
