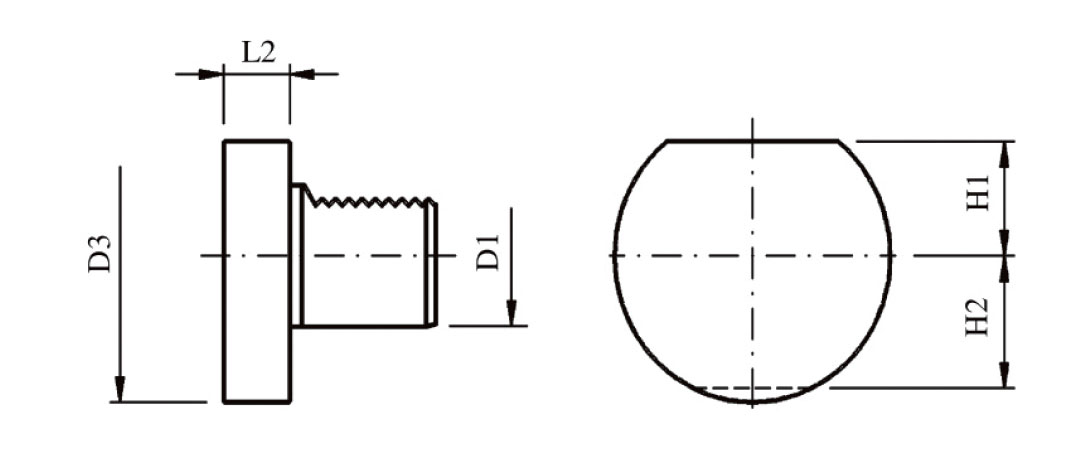

Product Size
Product Parameters
| DIN-Designation | D1 | D3 | H1 | H2 | L2 | material |
| Z2-16 | 16 | 40 | 18 | - | 13 | steel |
| Z2-16 | 16 | 40 | 18 | - | 13 | plastic |
| Z2-20 | 20 | 50 | 23 | 23 | 16 | steel |
| Z2-20 | 20 | 50 | 23 | 23 | 16 | plastic |
| Z2-25 | 25 | 58 | 25 | 25 | 16 | steel |
| Z2-25 | 25 | 58 | 25 | 25 | 16 | plastic |
| Z2-30 | 30 | 68 | 28 | 30 | 16 | steel |
| Z2-30 | 30 | 68 | 28 | 30 | 16 | plastic |
| Z2-40 | 40 | 83 | 32.5 | - | 20 | steel |
| Z2-40 | 40 | 83 | 32.5 | - | 20 | plastic |
| Z2-50 | 50 | 98 | 35 | - | 20 | steel |
| Z2-50 | 50 | 98 | 35 | - | 20 | plastic |
| Z2-60 | 60 | 123 | 42.5 | - | 20 | steel |
| Z2-60 | 60 | 123 | 42.5 | - | 20 | plastic |
-
