Home > Products > Tool Holder > VDI SERIES

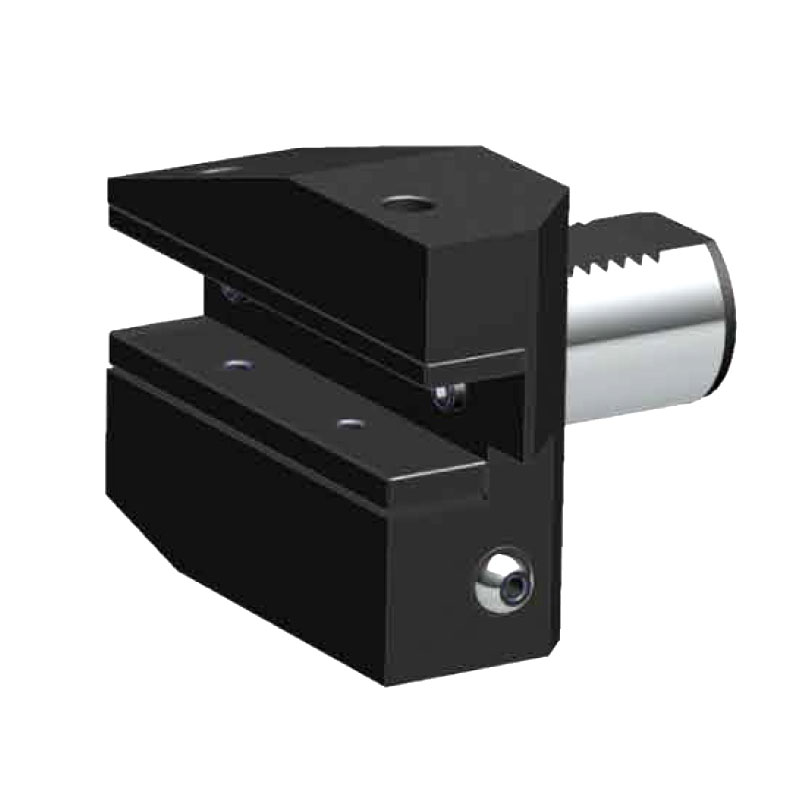

B Series Radial Outer Diameter Tool Holder B7

Inquire Now Next

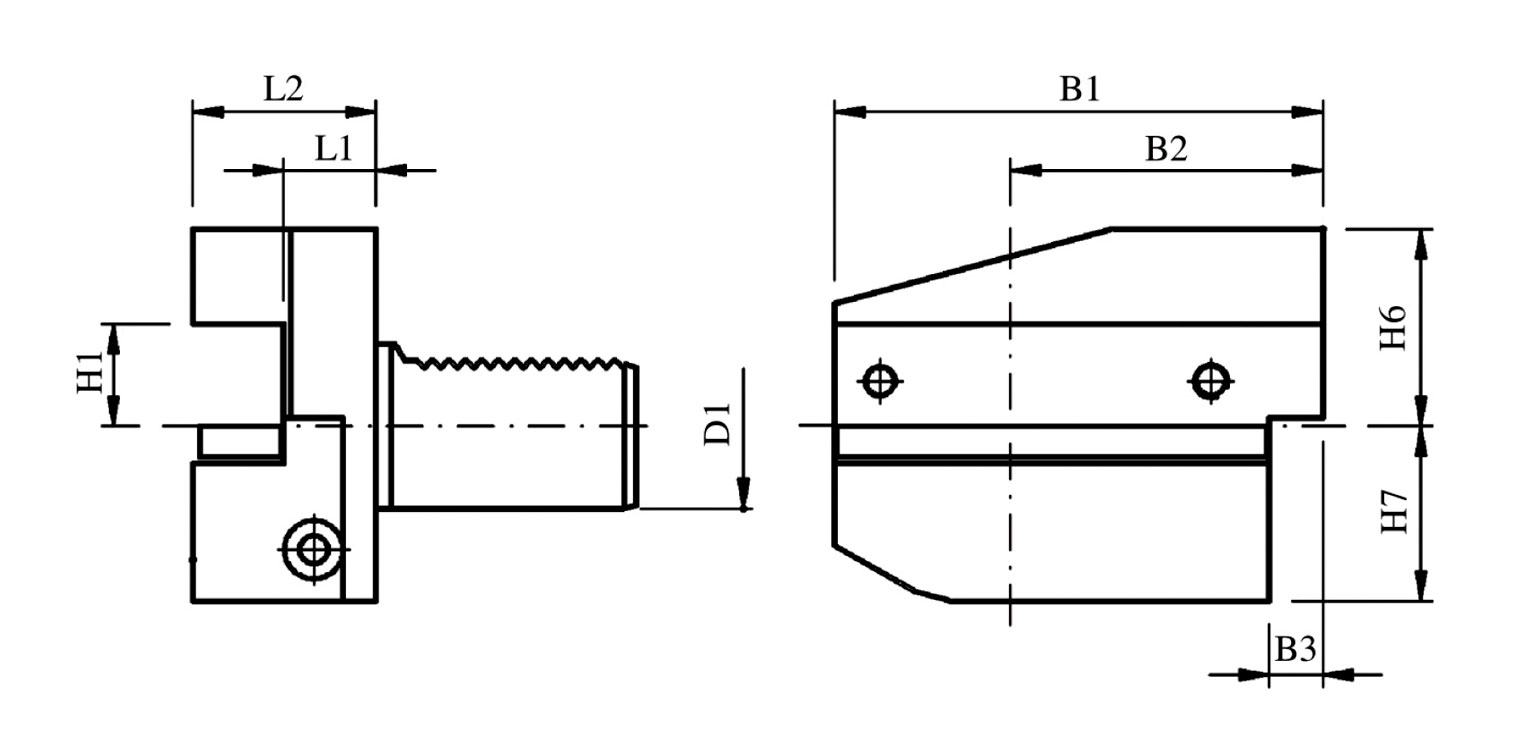

Product Size

B Series Radial Outer Diameter Tool Holder B7

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3	H6	H7	L1 +0.5	L2
B7-20×16×30	20	16	75	50	7	30	25	16	30
B7-30×20×40	30	20	100	65	10	38	35	22	40
B7-40×25×44	40	25	118	75.5	12.5	48	42.5	22	44
B7-50×32×55	50	32	130	80	16	60	50	30	55
B7-60×32×60	60	32	145	82.5	16	62.5	62.5	30	60
