B Series Radial Outer Diameter Tool Holder B6

Inquire Now Next

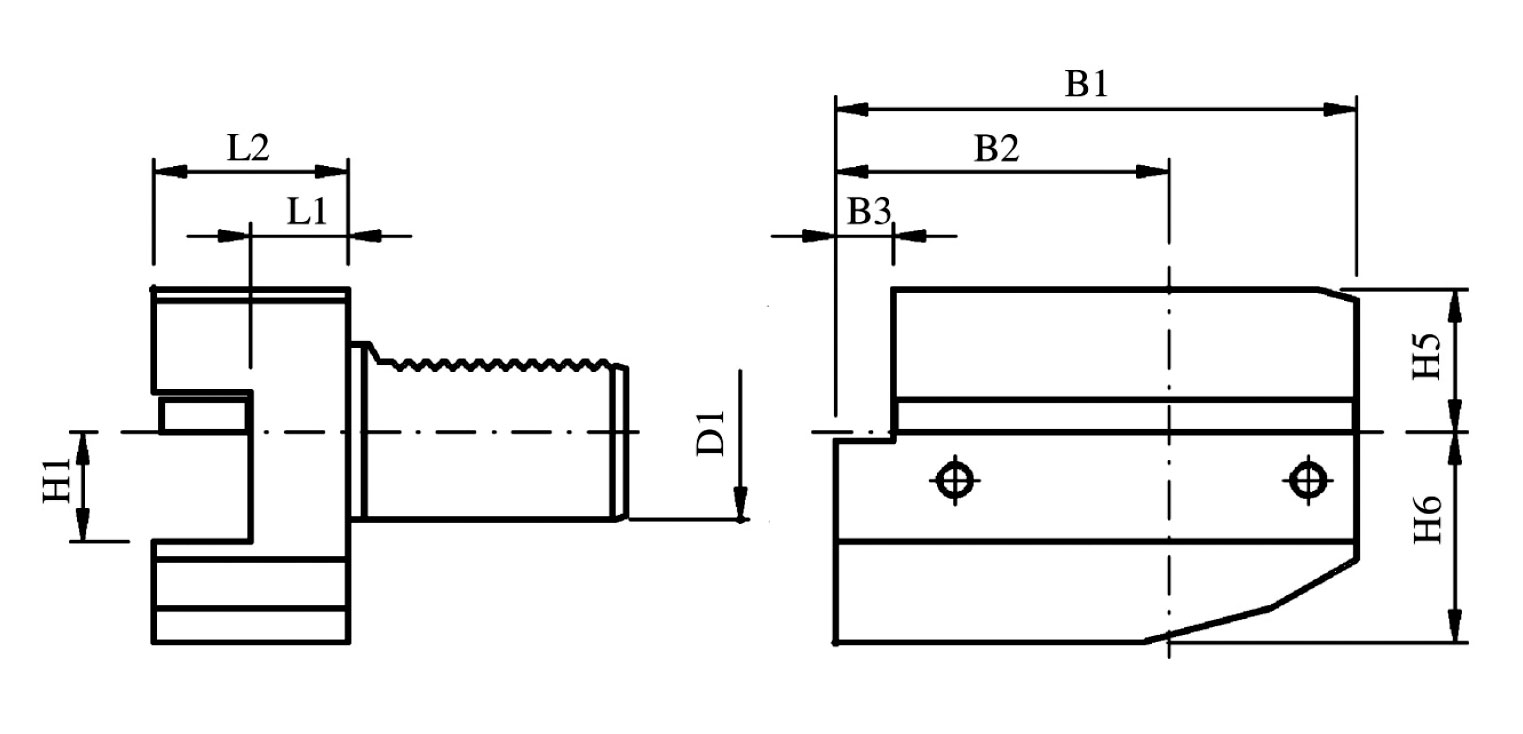

Product Size

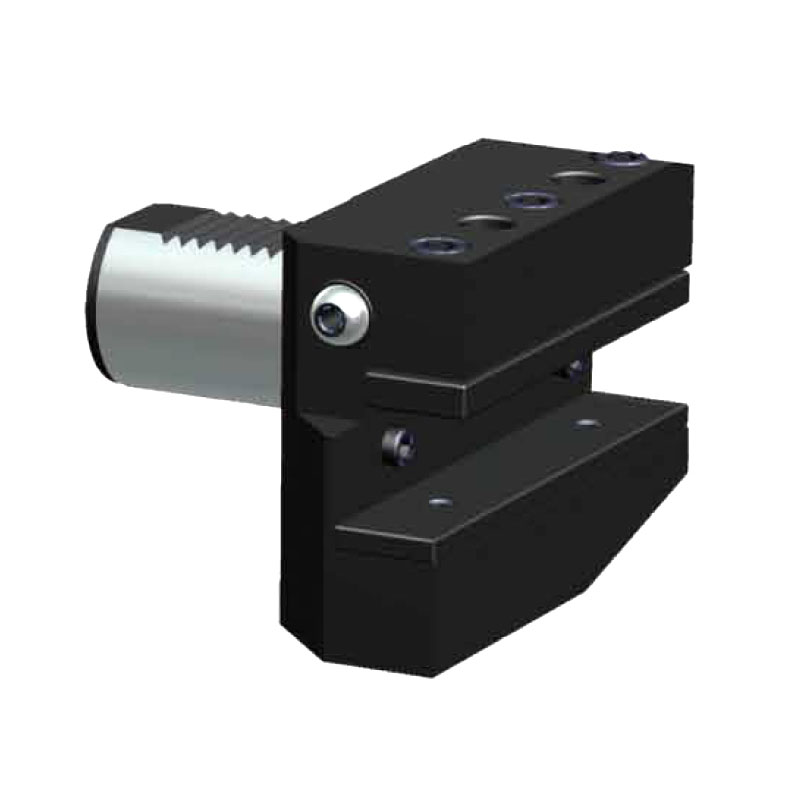

B Series Radial Outer Diameter Tool Holder B6

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3	H5	H6	L1 +0.5	L2
B6-20×16×30	20	16	75	50	7	25	30	16	30
B6-30×20×40	30	20	100	65	10	28	38	22	40
B6-40×25×44	40	25	118	75.5	12.5	32.5	48	22	44
B6-50×32×55	50	32	130	80	16	35	60	30	55
B6-60×32×60	60	32	145	82.5	16	42.5	62.5	30	60
