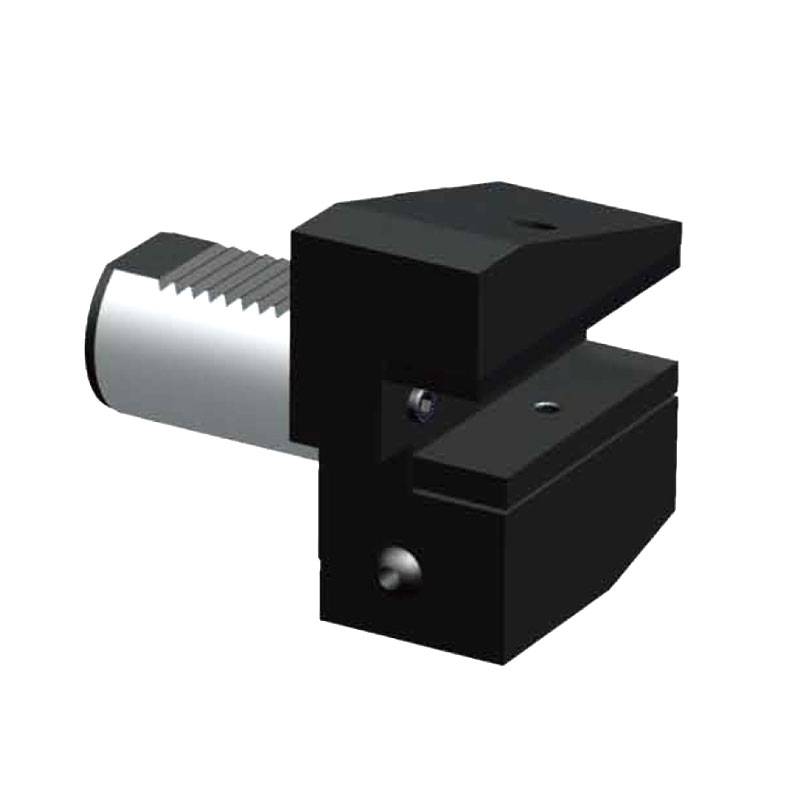

B Series Radial Outer Diameter Tool Holder B4

Inquire Now Next

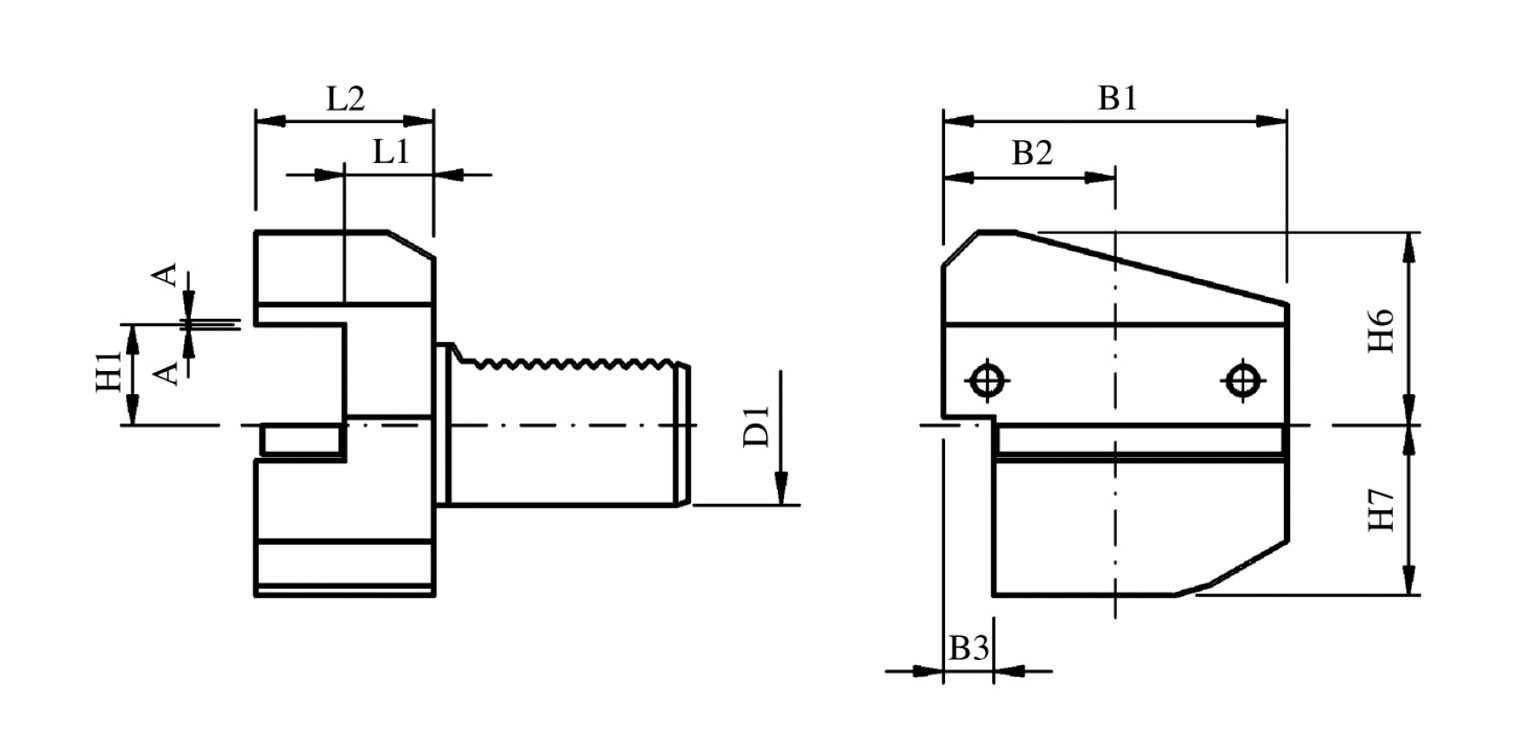

Product Size

B Series Radial Outer Diameter Tool Holder B4

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3	H6	H7	L1 +0.5	L2
B4-20×16×30	20	16	55	30	7	30	25	16	30
B4-25×16×30	25	16	55	30	7	30	25	16	30
B4-30×20×40	30	20	70	35	10	38	35	22	40
B4-40×25×44	40	25	85	42.5	12.5	48	42.5	22	44
B4-50×32×55	50	32	100	50	16	60	50	30	55
B4-60×32×60	60	32	125	62.5	16	62.5	62.5	30	60
