Home > Products > Tool Holder > VDI SERIES

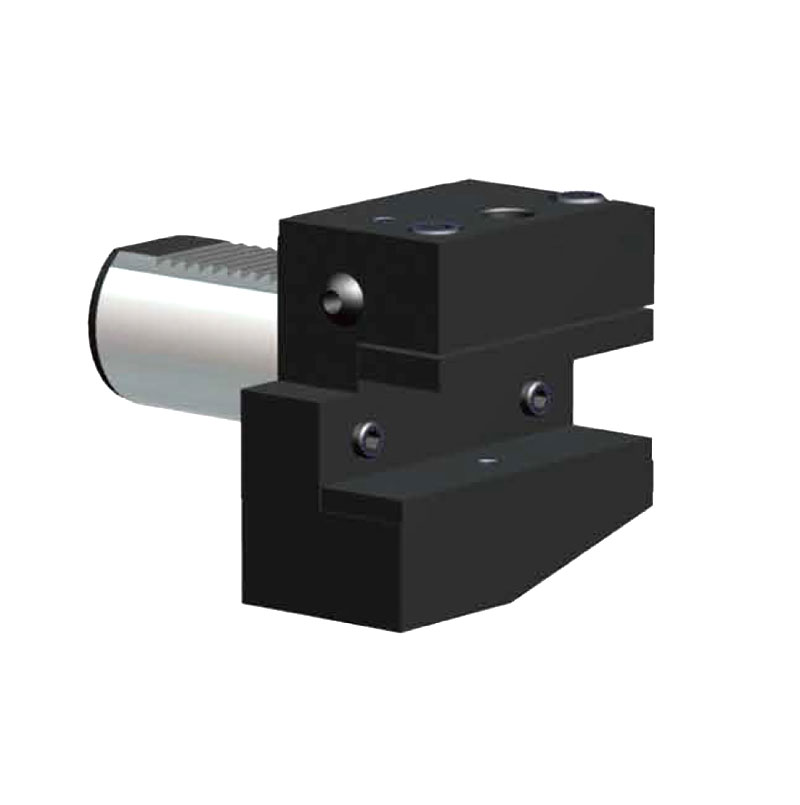

B Series Radial Outer Diameter Tool Holder B2

Inquire Now Next

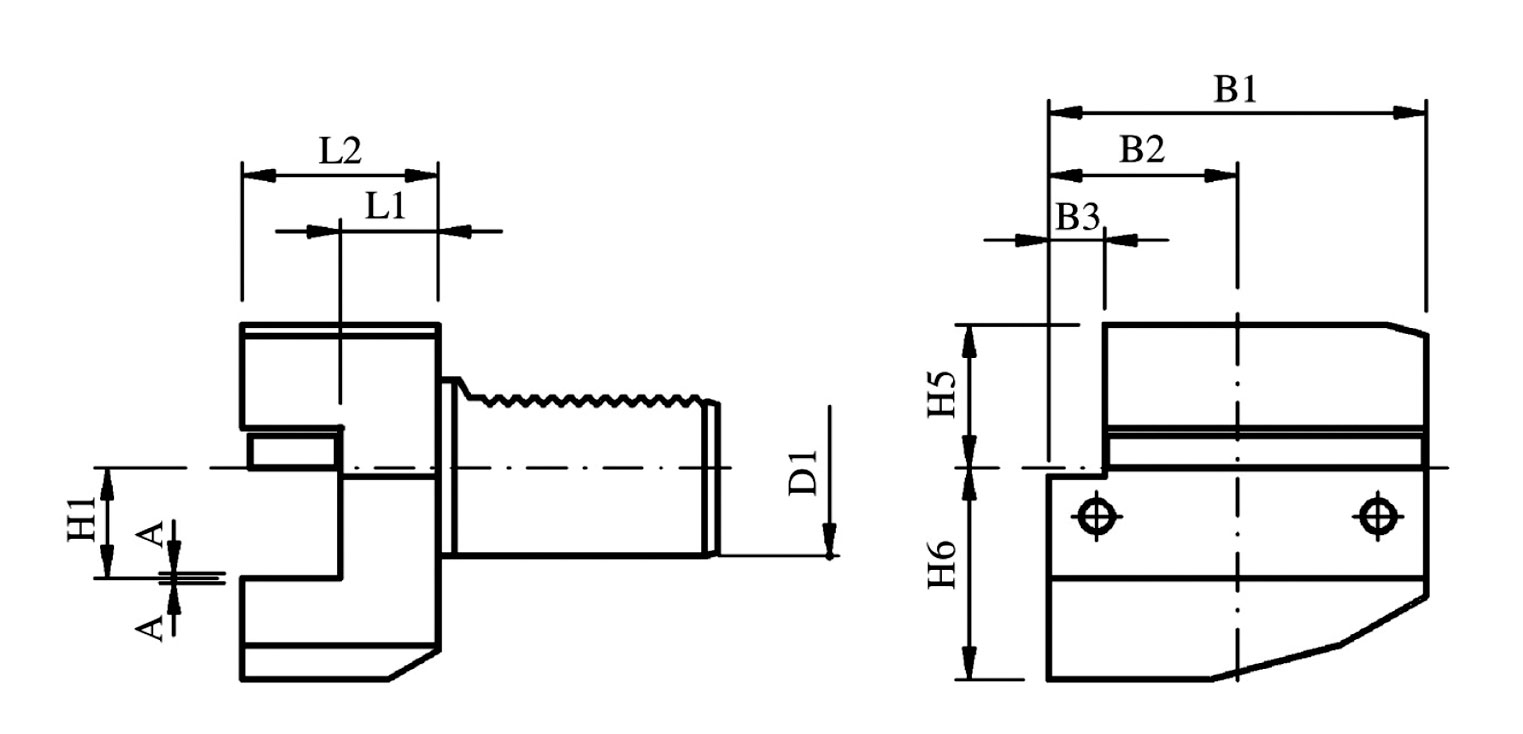

Product Size

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3	H5	H6	L1 +0.5	L2
B2-16x12x24	16	12	42	23	5	20	22	13	24
B2-20×12×30	20	16	55	30	7	25	30	16	30
B2-25×16×30	25	16	55	30	7	25	30	16	30
B2-30×20×40	30	20	70	35	10	28	38	22	40
B2-40×25×44	40	25	85	42.5	12.5	32.2	48	22	44
B2-50×32×55	50	32	100	50	16	35	60	30	55
B2-60×32×60	60	32	125	62.5	16	42.5	62.5	30	60
