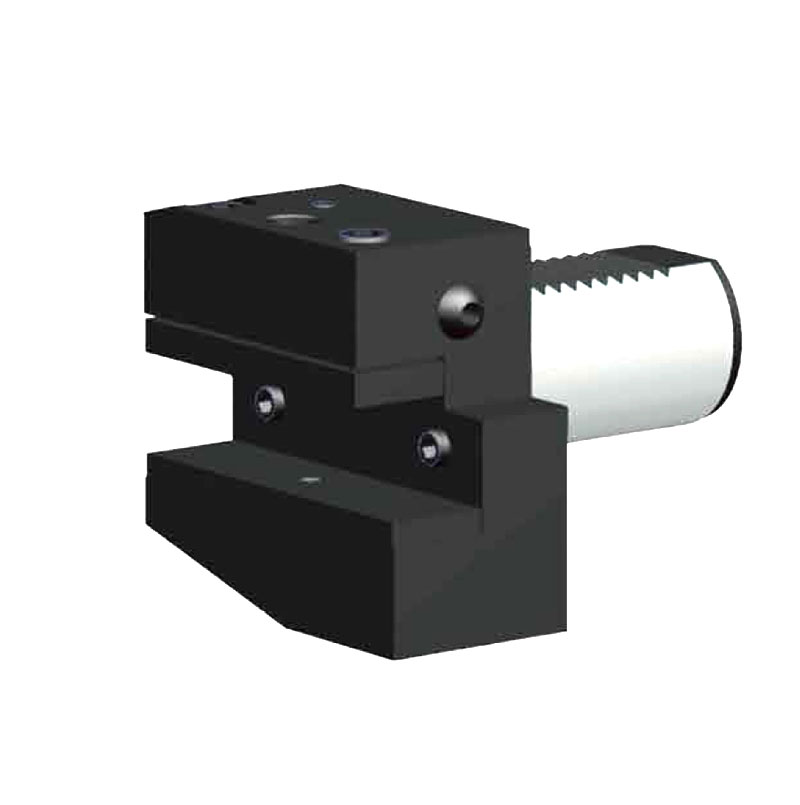

B Series Radial Outer Diameter Tool Holder B1

Inquire Now

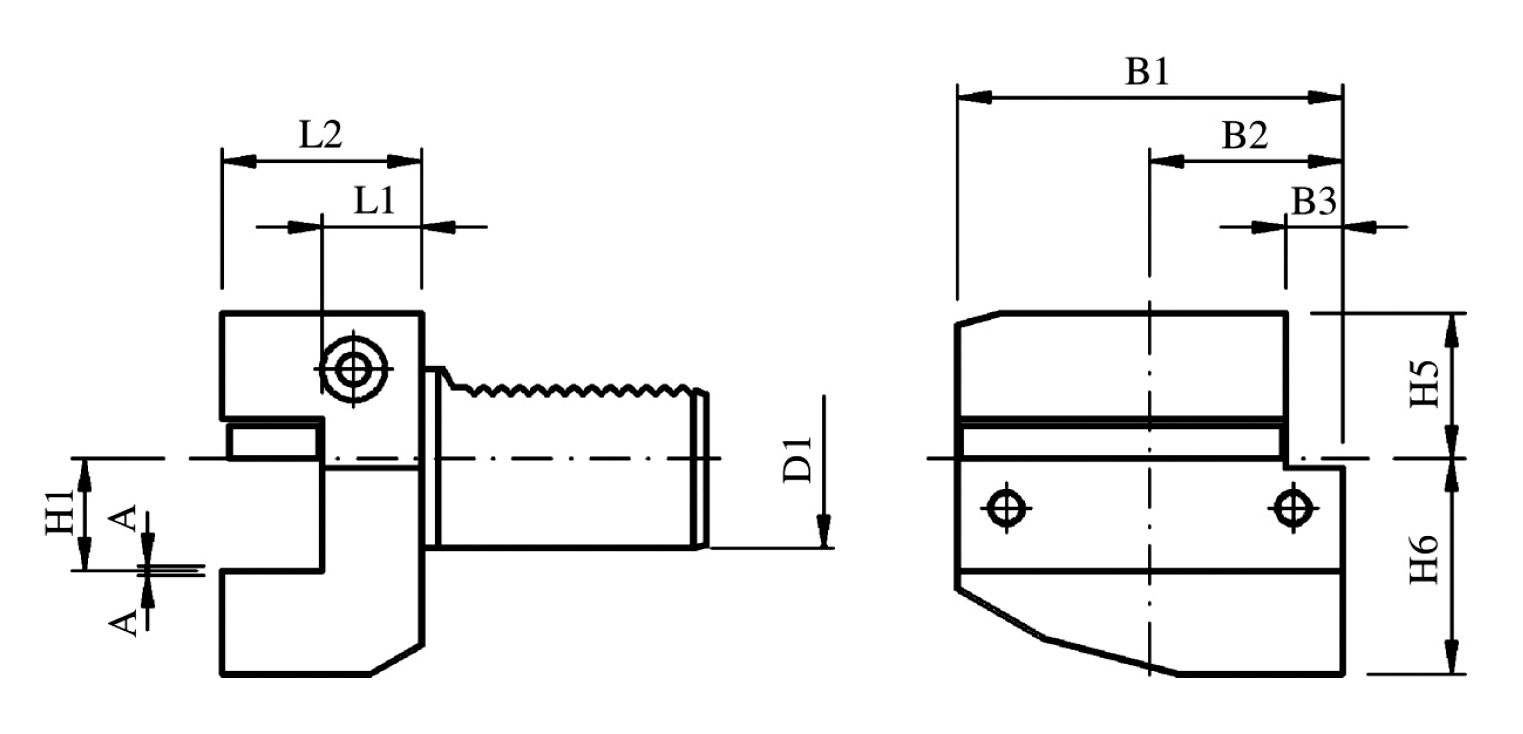

Product Size

Product Parameters

DIN-Designation	D1	H1 -0.1	B1	B2	B3	H5	H6	L1 +0.5	L2
B1-16×12×24	16	12	42	23	5	20	22	13	24
B1-20×16×30	20	16	55	30	7	25	30	16	30
B1-25×16×30	25	16	55	30	7	25	30	16	30
B1-30×20×40	30	20	70	35	10	28	38	22	40
B1-40×25×44	40	25	85	42.5	12.5	32.5	48	22	44
B1-50×32×55	50	32	100	50	16	35	60	30	55
B1-60×32×60	60	32	125	62.5	16	42.5	62.5	30	60
