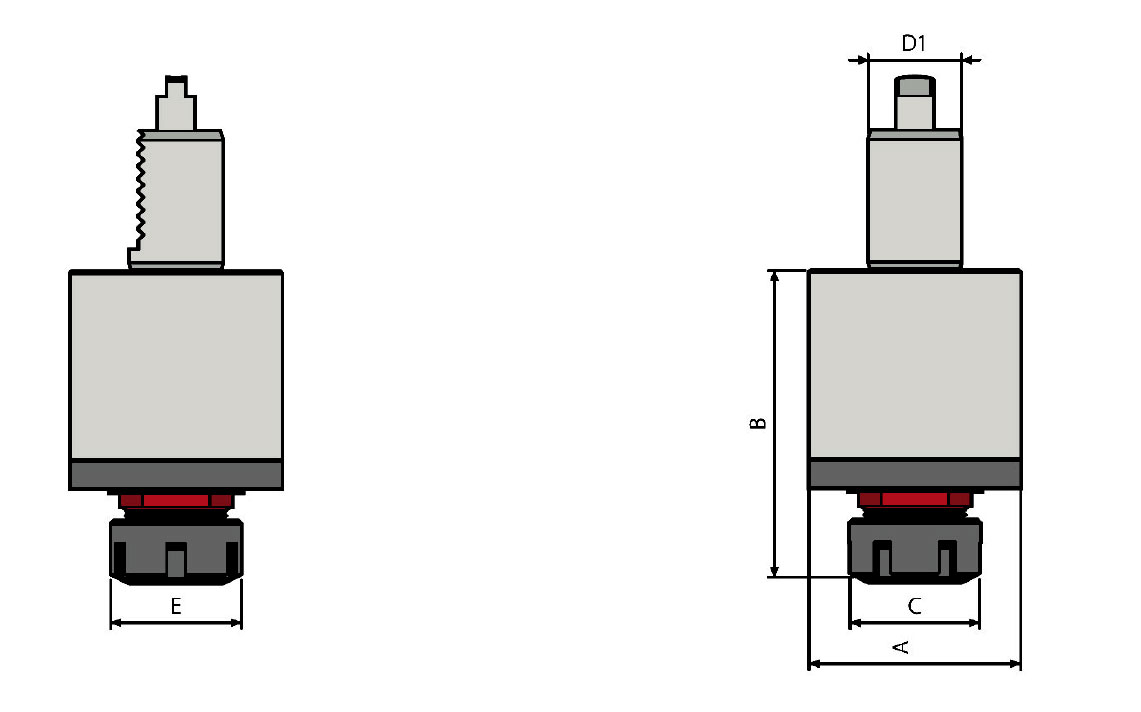

Product Size
Product Parameters
| Order NO. | D1 | A | B | C | Maximun R.P.M | N.W.Kg |
| SA30-ER25 | 30 | 68 | 90 | 42 | 6000 | 2.6 |
| SA40-ER32 | 40 | 83 | 90 | 50 | 6000 | 3.5 |
| SA50-ER40 | 50 | 88 | 127 | 63 | 6000 | 4.9 |
-
