Home > Products > Tool Holder > VDI SERIES

Axial Drilling And Milling Heads Offset

Inquire Now Next

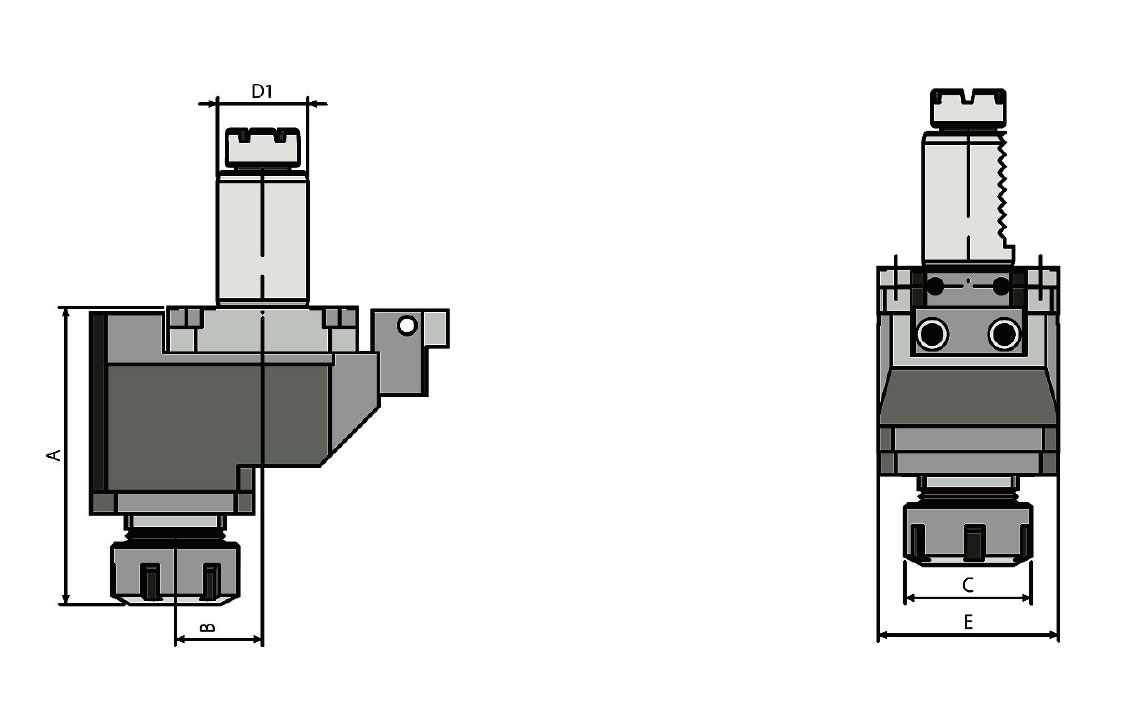

Product Size

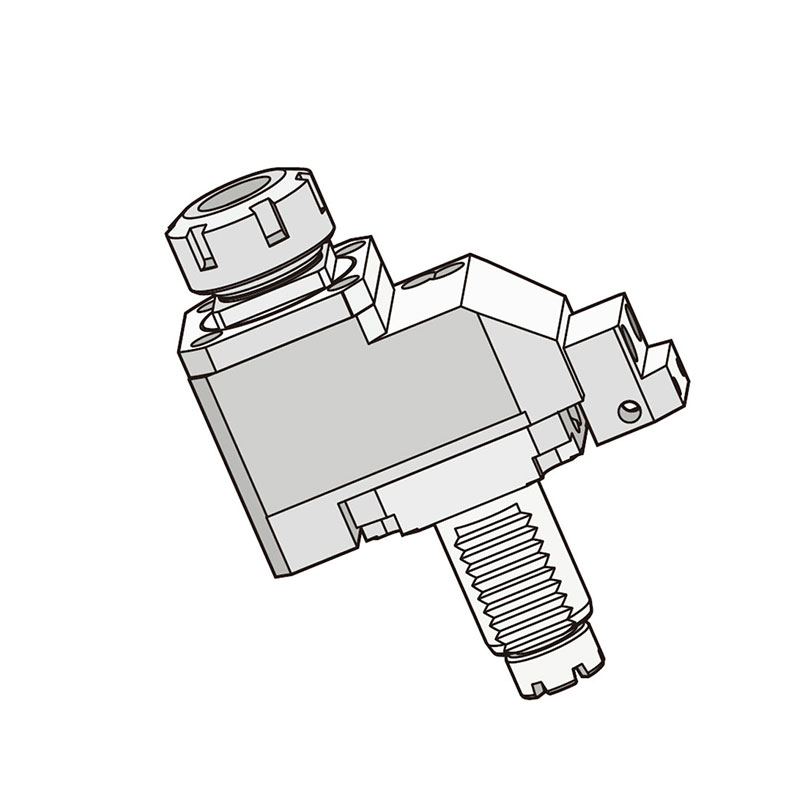

Axial Drilling And Milling Heads Offset

Product Parameters

Order NO.	D1	A	B	C	E	Maxium R.P.M	N.W.Kg
SA20-OFF29-ER16	20	98	29	28	52	4000	2.6
SA30-OFF29-ER25	30	98	29	42	60	4000	3.5
SA40-OFF50-ER32	40	120	50	50	80	4000	4.9
