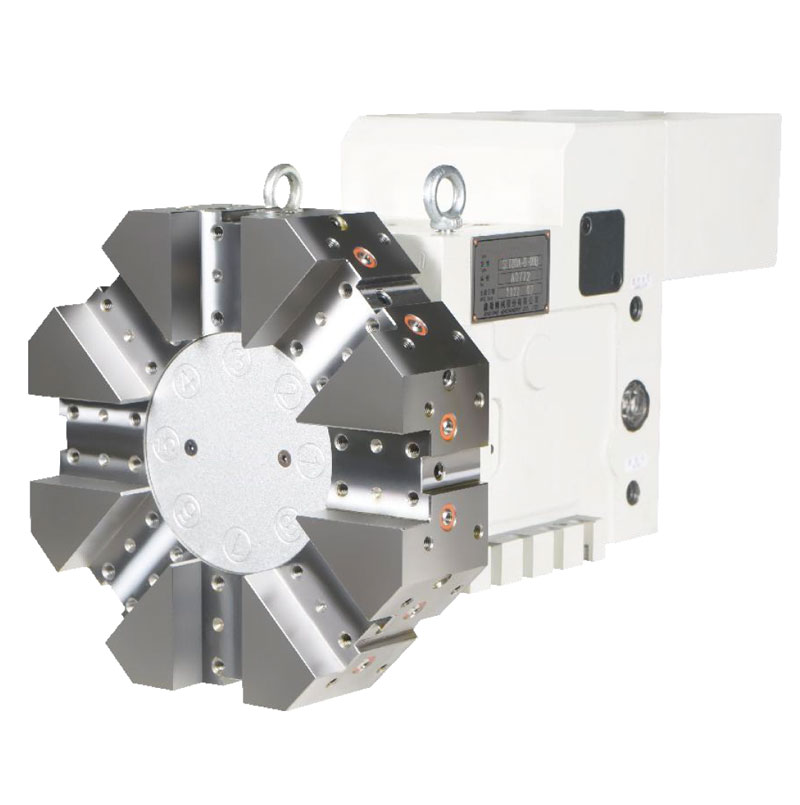

SLT Series Servo Turret

Inquire Now Next

Product Details

1. The servo motor is adopted for tool disc translocation, which has precise indexing accuracy, high speed on tool changing, and supports bidirectional translocation and the nearest tool selection ，

2.   High-precision   triple   hirth   coupling   and   hydraulic clamping devices are used to obtain high indexing accuracy ， reliable clamping and suitable conditions for heavy cutting

3.  Precise  deceleration  institution  is  designed  to  reduce noise and withstand high-torque loads.

4. Turret with 4 ，6 ，8 ，12 or more stations can be produced according to the special needs.

5.  Can  be  customized  30bar.  50bar.  70bar  high  pressure cooling。

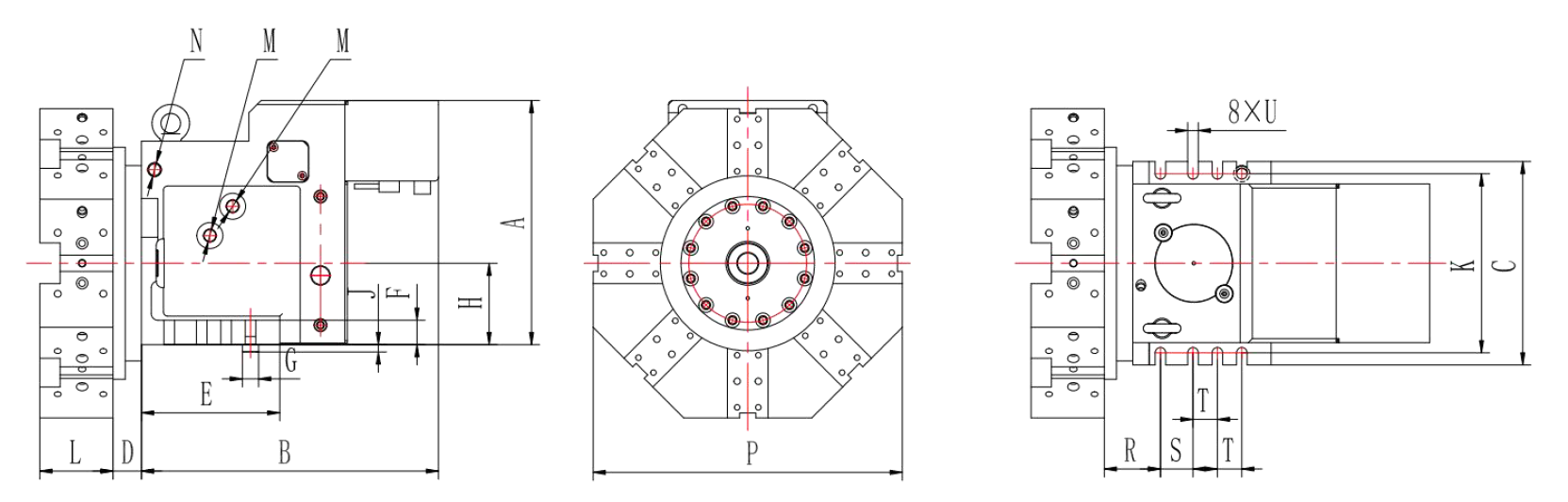

Product Size



Product Parameters

ModelDimension
HABCDEFGJKLMNRSTU
SLT63A632253801853413520Φ157.516555/65PT1/4PT1/424303011
SLT80A802603902103514025Φ177.519080/90PT1/4PT1/425323211
SLT100A1003004002504317030Φ20922090PT3/8PT3/834403013
SLT125A1253304153105219035Φ26928090PT3/8PT3/830444317
   MAIN SPECIFICATIONS
ItemModel
SLT63ASLT80ASLT100ASLT125A
Center Heightmm6380100125
Allowed number of tools
88； 128； 128； 12
Time for 45° ratation and clampingSec.0.91.11.41.8
Time for 180° ratation and clampingSec.1.21.41.92.5
Clamping forcekgf1200280032005200
Hydraulic working pressureMpa3.5±0.53.5±0.53.5±0.53.5±0.5
Flow rateL/min20222530
Indexing Accuracy
±4″±4″±4″±4″
Accuracy of repeatability
±1.6″±1.6 ″±1.6 ″±1.6 ″
Net weight(without tool disc)kg506888150



ModelSLT63ASLT80A/ST80SLT100A/ST100SLT125A

Opposites side8 work stations228270330390
248300350450
330380
12 work stations270340380450
320370480
330420
Boring ToolΦ20Φ25Φ32Φ32Φ40Φ32Φ40Φ50Φ40Φ50
O.D Tool   20   25   25   32
Facing Tool   20   25   25   32

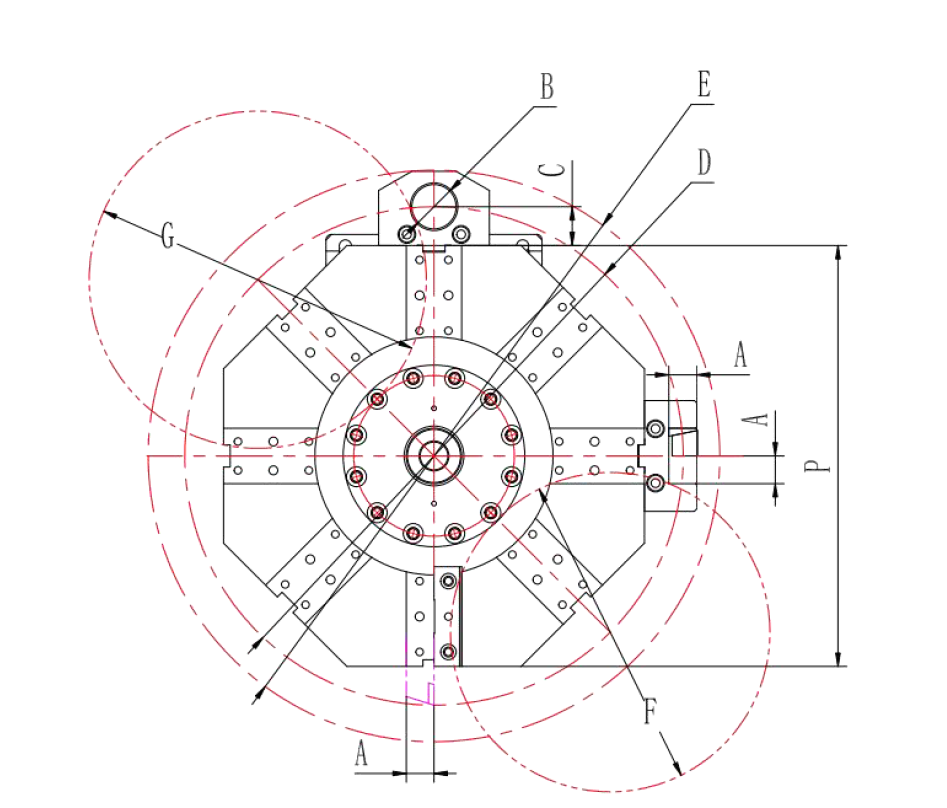

   Servo Turret Dimension


ModelDimension
`P
Opposite edge of cutterhead		A
Outside diameter/end square		B
Outside diameter/end square		C
Outside diameter/end square		D
Outside diameter/end square		E
Outside diameter/end square		F
Outside diameter/end square		G
Outside diameter/end square
SLT63A8 work stations228  20Φ2525Φ278Φ325Φ172Φ187
12 work stations270  20Φ2525Φ320Φ366Φ120Φ140
SLT80A/ST808 work stations270  25Φ4035Φ340Φ406Φ204Φ220
12 work stations340  25Φ4030Φ400Φ466Φ154Φ167
SLT100A/ST1008 work stations330  25Φ4030Φ390Φ456Φ277Φ258
12 work stations380  25Φ4030Φ440Φ506Φ175Φ187
SLT125A8 work stations450  32Φ5040Φ530Φ606Φ327Φ355
12 work stations450  32Φ5040Φ530Φ606Φ207Φ244
