Product Details

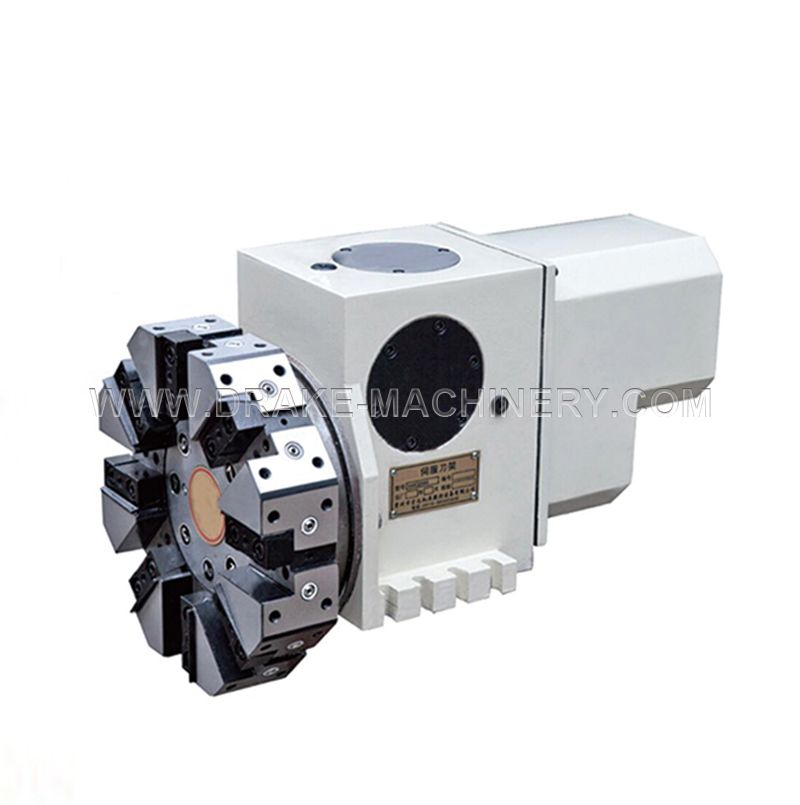

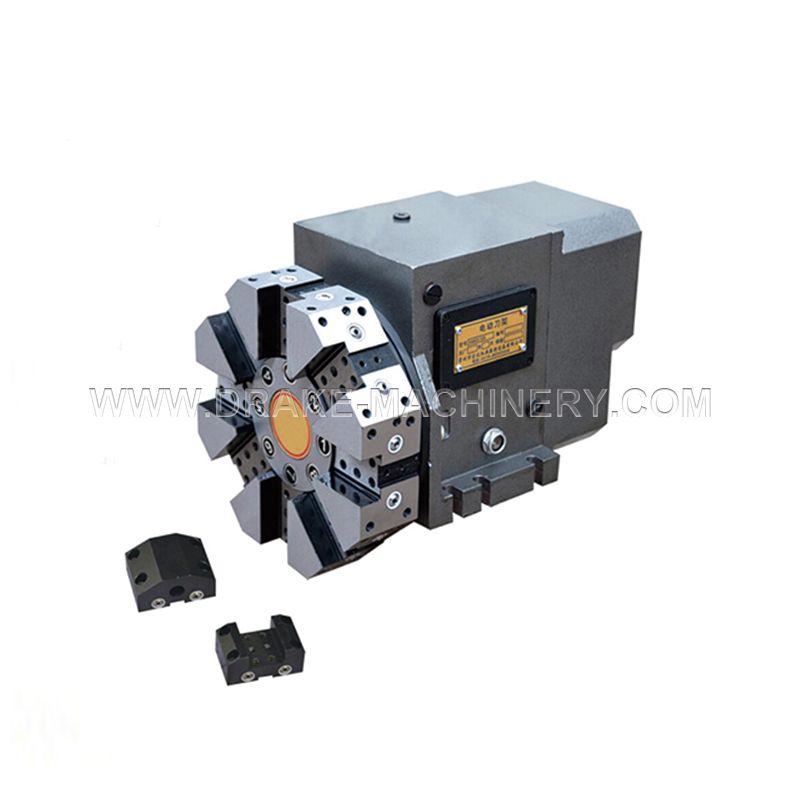

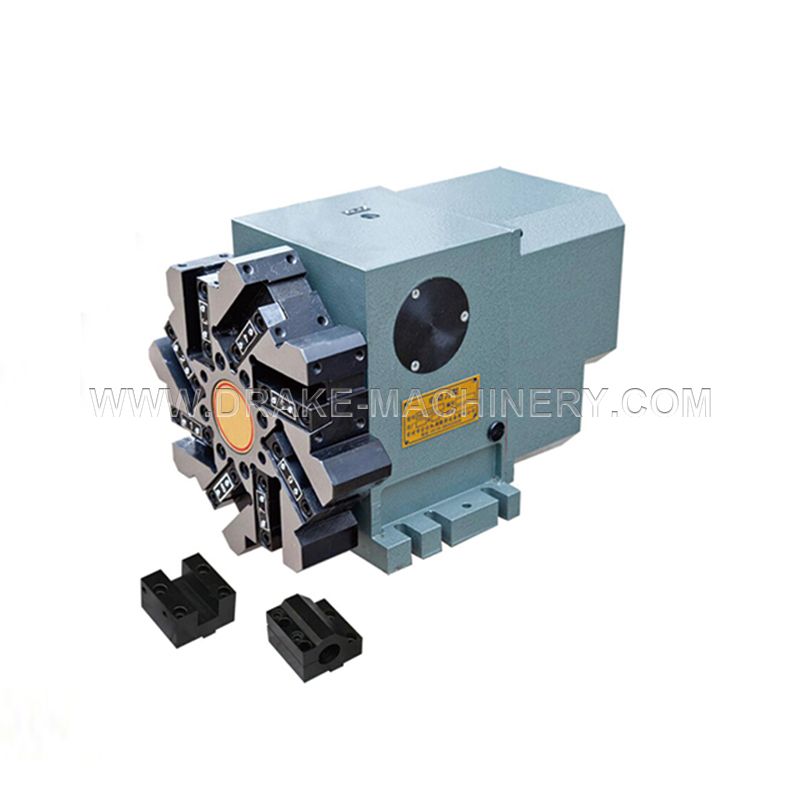

HAk32 series servo NC turret adopts the working principle of servo electric motor transposition, clamping/unclamping tool-holder disk with hydraulic force, 3 pieces face gear coupling as fine indexing mechanism. It features fast change tools, bidirectional shortest indexing path. When it has locked, it can normally work as the hydraulic pressure being lower. It is the best choice for high-grade NC lathe.
1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.
3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.
4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.
5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.
6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

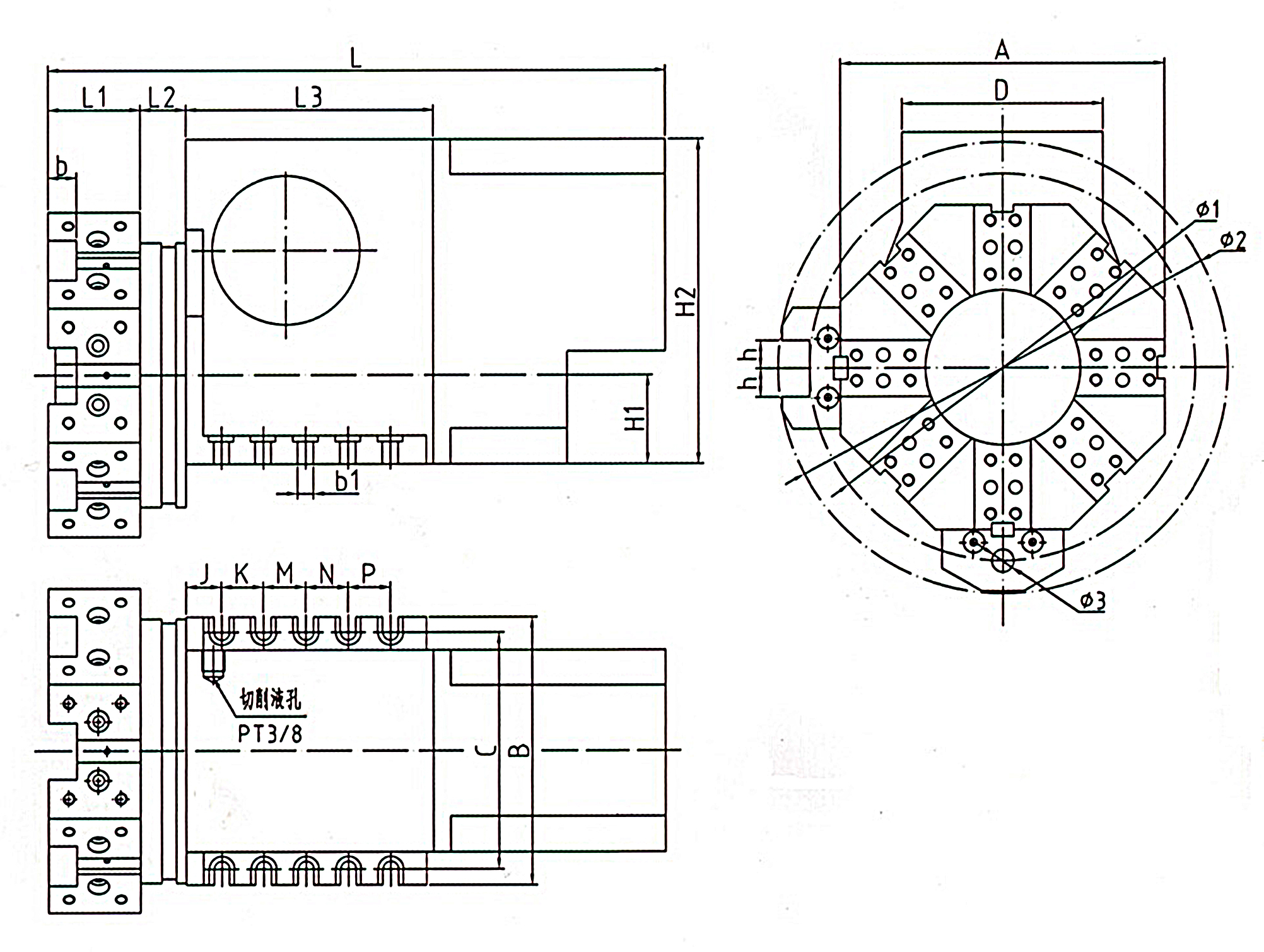

Product Size
Product Parameters
| Model/Data | Working pressure (Mpa) | Flow (L/min) | Center height (mm) | Station number | Repeatability accuracy(") | Time of changing tool(s) | ||
| 30º | 45º | |||||||
| HAK32063 | 3～3.5 | 10 | 63 | 8 | 12 | ±2 | 0.25 | 0.3 |
| HAK32080 | 3～3.5 | 10 | 80 | 8 | 12 | ±2 | 0.25 | 0.3 |
| HAK32100 | 3～3.5 | 15 | 100 | 8 | 12 | ±2 | 0.3 | 0.4 |
| HAK32125 | 3.5～4 | 15 | 125 | 8 | 12 | ±2 | 0.35 | 0.5 |
| HAK32160 | 3.5～4 | 15 | 160 | 8 | 12 | ±2 | 0.4 | 0.55 |
| Model/Dim | A | B | C | D | H1 | H2 | b1 | b | h |
| HAK32063 | 230 | 190 | 168 | 143 | 63 | 230 | 11 | 20 | 20 |
| HAK32080 | 260 | 210 | 188 | 158 | 80 | 250 | 11 | 25 | 25 |
| HAK32100 | 300 | 238 | 213 | 180 | 100 | 300 | 13 | 25 | 25 |
| HAK32125 | 380 | 308 | 280 | 238 | 125 | 345 | 18 | 32 | 32 |
| HAK32160 | 480 | 390 | 352 | 316 | 160 | 450 | 22 | 40 | 40 |
| Model/Dim | L | L1 | L2 | L3 | J | K | M | N | P | φ1 | φ2 | φ3 |
| HAK32063 | 468 | 55 | 31 | 176 | 25 | 30 | 30 | 30 | / | φ286 | φ338 | φ25 |
| HAK32080 | 482 | 62 | 36 | 176 | 25 | 32 | 32 | 32 | / | φ310 | φ366 | φ32 |
| HAK32100 | 542 | 80 | 40 | 195 | 32 | 40 | 30 | 30 | / | φ360 | φ420 | φ32 |
| HAK32125 | 611 | 90 | 51 | 220 | 32 | 44 | 43 | 43 | / | φ460 | φ530 | φ40 |
| HAK32160 | 822 | 120 | 72 | 330 | 48 | 48 | 56 | 48 | 48 | φ580 | φ660 | φ50 |
-
