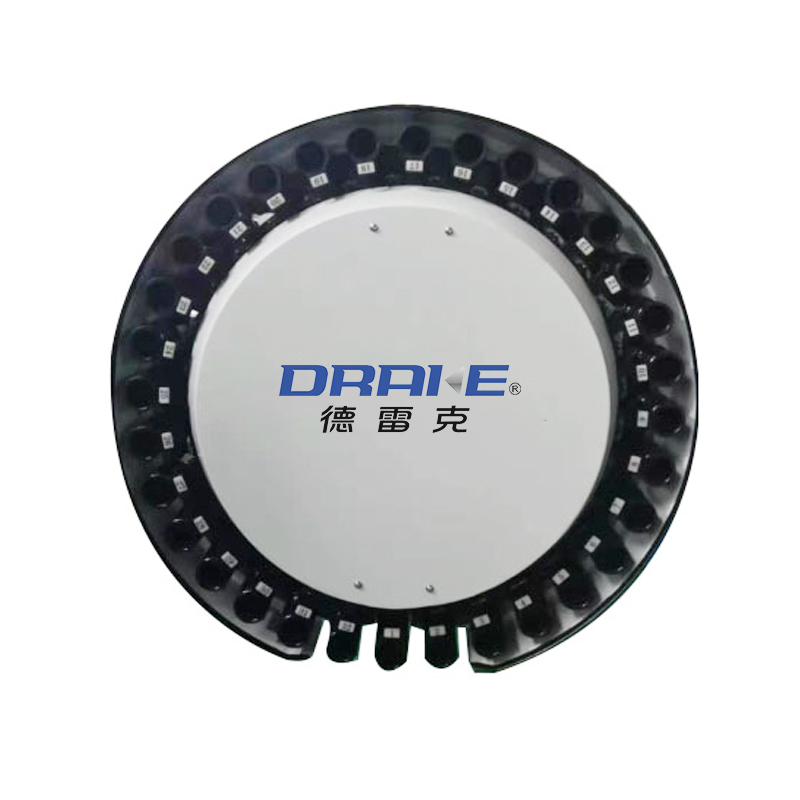

Product Details
1.Servo motor, high speed, fast tool change
2.The claw wheel is made of chromium steel with good wearresistance after carburizing and heat treatment.
3.Toolhouse bearings are imported bearings with high wearresistance and service life.
4.The sealing principle of automobile engine is adopted in allcases,and special customized sealing gaskets are used top「event oil leakage and oil leakage risk
Gear mechanism adopts German standard high streng thhelical teeth with high accuracy,lowsound, stabletran smission, good wear resistance and other advantages.
5.Separate gripper adjustment is convenient and simple.saving assembly time
Product Size
None
Product Parameters
SPECIFICATIONS
| Tool capactly | 21T |
| Tool shank spec | BT30 |
| Max toollength | 250MM |
| Max.tool dia | 100 |
| Max.tool weight | 2.8KG |
| Max.tool load | 5KG |
| Tool change time | Tt oT(1.5S ) |
| Type magazine vollage | 220V/380V |
-
