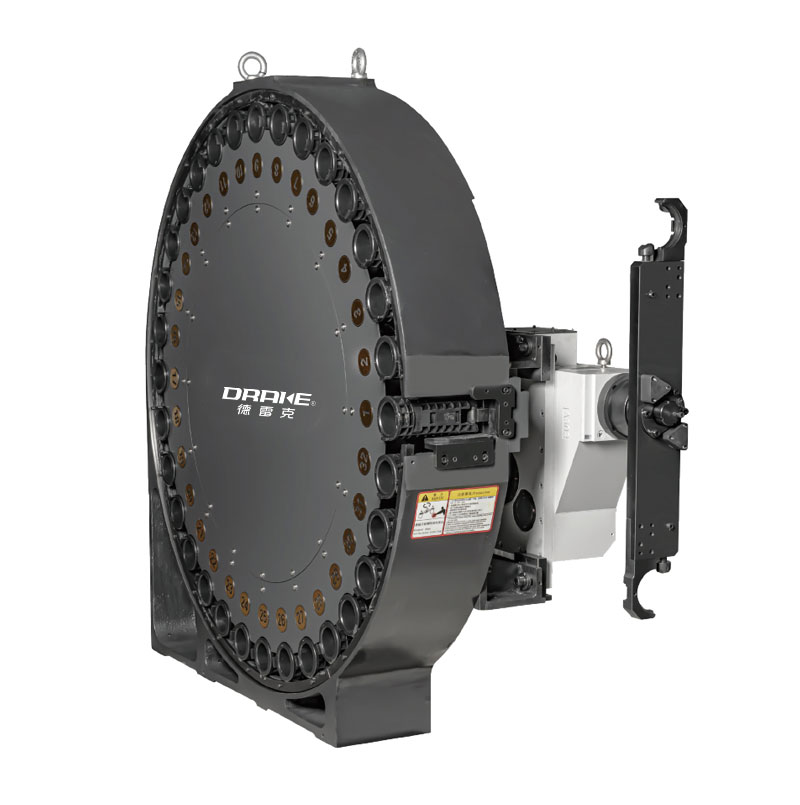

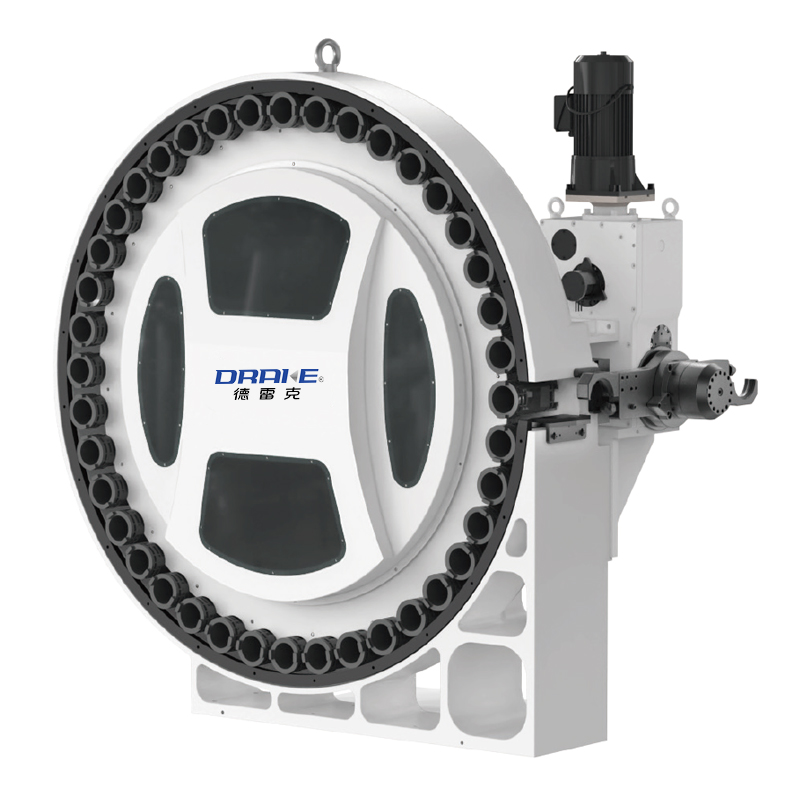

HORIZONTAL DISC TOOL MAGAZINE

Inquire Now Next

Product Size

Pocket Spec

BT40/CAT40/DIN40/HSK63

BT50/CAT50/DIN50/HSK100

Tool Capacity

16T/24T/32T

24T/30T/32T/40T

Pocket Pitch (mm)

80

127

Max. Tool Diameter
With Adjacent Pocket Full/Empty(mm)

70/150

125/240

Max. Tool Weight(kg)

8

15

Tool Change Time(sec/50hz)

1. 1-2. 9

2. 91-8. 28

Magazine Speed (sec/tool)

0.75

0.75

Tool Change Selection

Roller Gear Cam

Product Parameters

None
