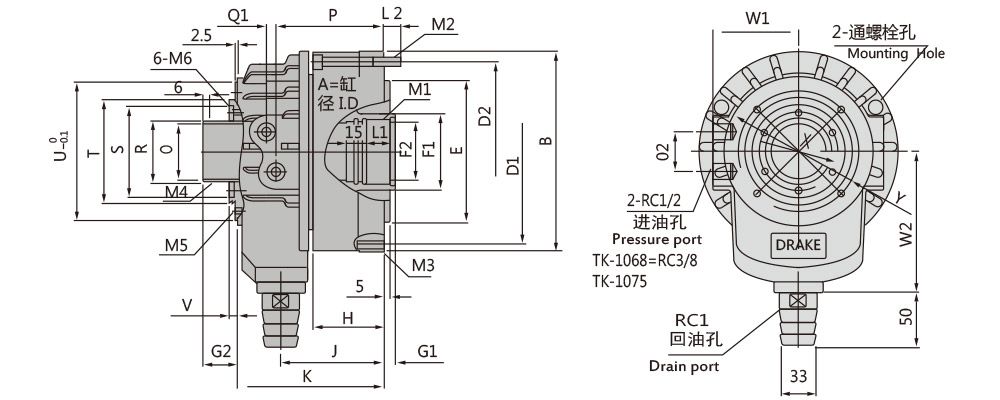

Product Size
Product Parameters

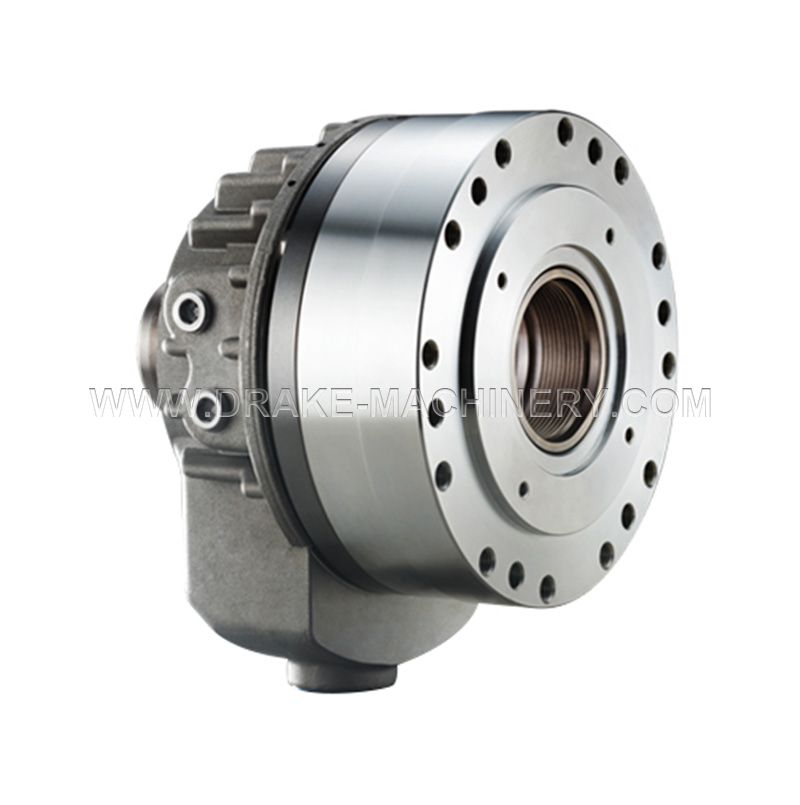

● High speed short form, large Through-Hole, are light-weight.
● Meanwhile, the compactness and miniaturization lower the burden of machines.
● With built-in"check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.
● Easy instauation, the optional front end or back end screw it.
| Dimensions(mm) | ||||||||||||||||||
| Spec | A | B | D1 | D2 | E(H7) | F1 | F2(H8) | G1 | G2 | H | J | K | L1 | L2 | M1 | M1 | ||
| Model | max | min | max | min | ||||||||||||||
| TK-1068 | 175 | 215 | 190 | 190 | 160 | 95 | 70 | 25 | 0 | 50 | 25 | 94 | 136 | 188 | 35 | 16 | M75x2 | 6-M10x100 |
| TK-1075 | 80 | M85x2 | ||||||||||||||||
| TK-1287 | 205 | 240 | 215 | 220 | 180 | 110 | 90 | 30 | 55 | 100 | 145 | 205 | M95x2 | 6-M10x105 | ||||
| TK-1291 | 95 | M100x2 | ||||||||||||||||
| TK-1511 | 250 | 305 | 275 | 280 | 230 | 140 | 115 | 113 | 156 | 245 | 35 | M120x2 | 6-M12x120 | |||||
| TK-1512 | 125 | M130x2 | ||||||||||||||||
| Dimensions(mm) | ||||||||||||||||
| Spec | M3 | M4 | M5 | O | P | Q1 | Q2 | R | S | T | U | V | W1 | W2 | X | Y |
| Model | ||||||||||||||||
| TK-1068 | 12-M10x20 | M84x2 | 4-M6x8 | 68 | 139 | 12 | 36 | 81 | 108 | 121 | 164 | 7 | 98 | 160 | 98 | 155 |
| TK-1075 | 75 | |||||||||||||||
| TK-1287 | 12-M12x24 | M99x2 | 87 | 148 | 14 | 40 | 96 | 125 | 135 | 180 | 110 | 185 | 110 | 165 | ||
| TK-1291 | 91 | |||||||||||||||
| TK-1511 | 12-M16x32 | M129x2 | 4-M6x10 | 110 | 172 | 17 | 50 | 126 | 150 | 170 | 227 | 134 | 210 | 138 | 210 | |
| TK-1512 | 120 | |||||||||||||||
| Specifications | ||||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | Total oil leakage (l/min) | ||
| Model | Extend | Retract | Extend | Retract | ||||||
| TK-1068 | 182.7 | 169.5 | 25 | 4500 | 40(4.0) | 6577(64.5) | 6102(59.8) | 0.08 | 17.8 | 4.2 |
| TK-1075 | 17 | |||||||||
| TK-1287 | 249.3 | 232.8 | 30 | 3800 | 8975(87.9) | 8380(82.1) | 0.11 | 26.5 | 4.5 | |
| TK-1291 | 24.8 | |||||||||
| TK-1511 | 356.3 | 335.3 | 3000 | 12830(125.7) | 12070(118.3) | 0.38 | 53.6 | 7 | ||
| TK-1512 | 49.5 | |||||||||
| The drain port should be independently connected to oil tank to avoid back pressure. | ||||||||||
-
