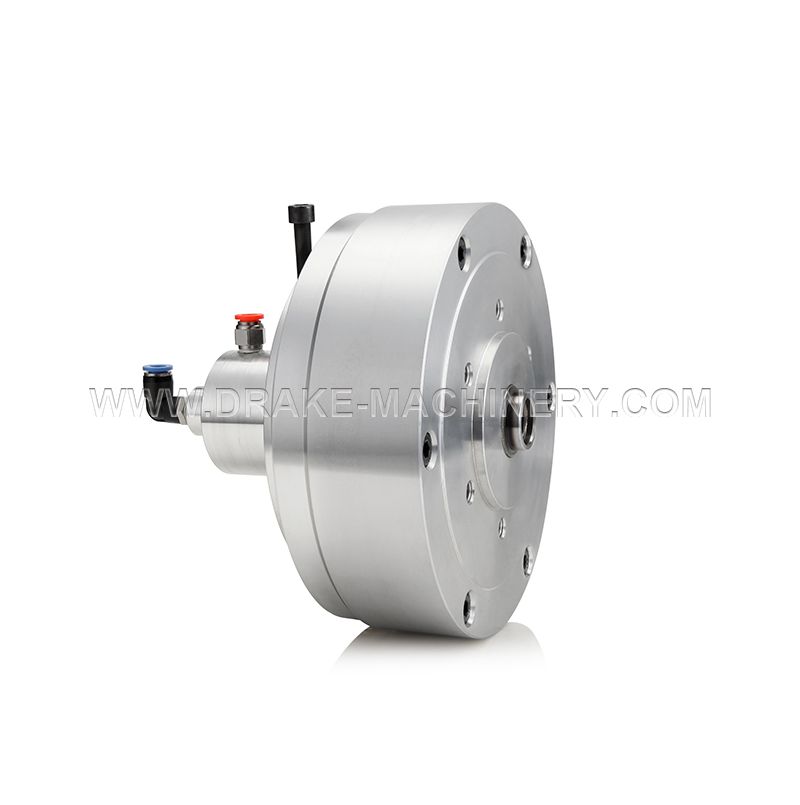

SQ The rotary cylinder with high speed single solid piston

Inquire Now Next

Product Details

When it comes to industrial applications, durability and reliability are paramount. The SQ High-Speed Single Solid Piston Rotary Cylinder is built to withstand the rigors of demanding environments, ensuring long-lasting performance that you can rely on.

Constructed with high-quality materials and precision engineering, this cylinder offers exceptional durability, even in harsh conditions. Its solid piston design minimizes wear and tear, extending its lifespan and reducing maintenance costs. Additionally, the SQ cylinder features a reliable sealing system that provides excellent resistance to contaminants, ensuring uninterrupted operation and minimizing downtime.

Backed by our commitment to quality and innovation, the SQ cylinder undergoes rigorous testing and quality control measures to meet the highest standards. Trust in its reliability to keep your production running smoothly and maximize your productivity.

Product Feature:

Compact and lightweight: aluminum alloy made outer structure makes the weight lighter than the traditional rotary cylinders; meanwhile,the compactness and miniaturization enhance the stability and lower the burden of machines.

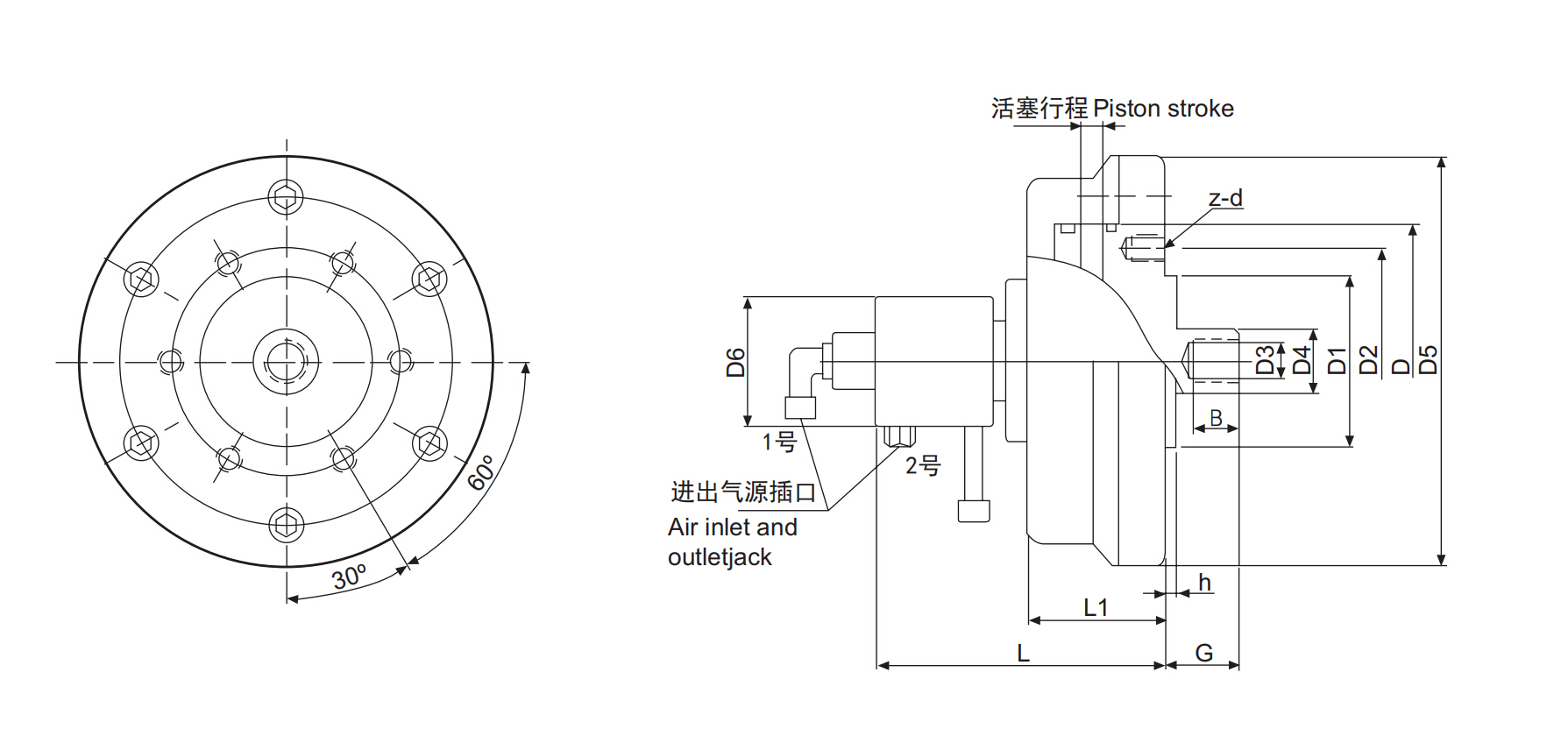

Product Size

SQ 图纸.jpg

Product Parameters

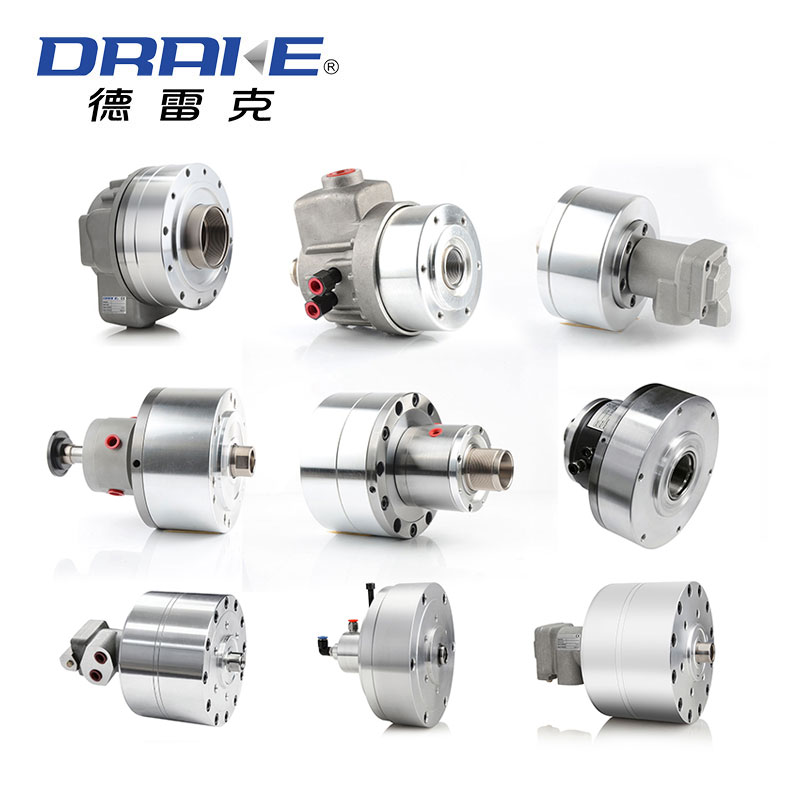

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

Performance parameters
Model/Spec.	Piston stroke	Allowable pressure (Mpa)	Limit speed (r/min)	Maximun force (KN)	Net weight (kg)
SQ110	12	0.4-0.8	4500	7	4
SQ130	15	0.4-0.8	4000	11.5	5
SQ160	20	0.4-0.8	3500	15.4	7.6
SQ200	20	0.4-0.8	3000	24.5	13.8

Size parameters
Model/Spec.	D	D1	D2	D3	D4	D5	D6	B	G max.	G min.	h	L	L1	z-d
SQ110	110	65	90	M16	30	140	60	30	27	15	4	127	68	6-M8
SQ130	130	65	90	M16	30	160	60	30	32	17	4	130	71	6-M8
SQ160	160	80	100	M20	32	196	60	30	33	13	5	138	80	6-M10
SQ200	200	100	130	M24	32	236	60	35	44	24	5	138	80	6-M12
