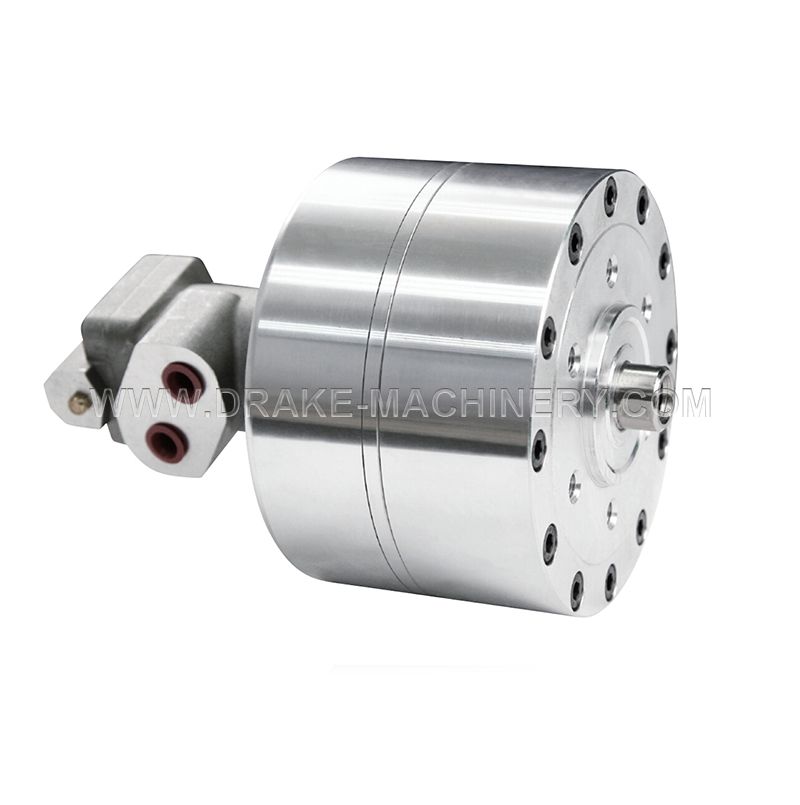

Product Details
Product Feature:
Double piston design, pulling force increasing.
Lightweight, high speed, running balance, rotary valve with special aluminum alloy, internal components are using inbound ingredients, long service life, low inertia.
Please inject small amount of oil mist when using.
Product Size
Product Parameters
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Performance parameters | ||||||
| Model/Spec. | Piston area (cm²) | Stroke (mm) | Hightest turnover number min-1(rpm) | Maximum working pressure MPa(kgf/cm²） | Weight (kg) | |
| Press side | Pull side | |||||
| SQ-130B | 251.2 | 247.9 | 15 | 4000 | 0.8(8) | 8 |
| SQ-150B | 339 | 332 | 20 | 4000 | 0.8(8) | 9.3 |
| SQ-160B | 365 | 360 | 25 | 3500 | 0.8(8) | 14 |
| SQ-200B | 590 | 580 | 30 | 3000 | 0.8(8) | 20 |

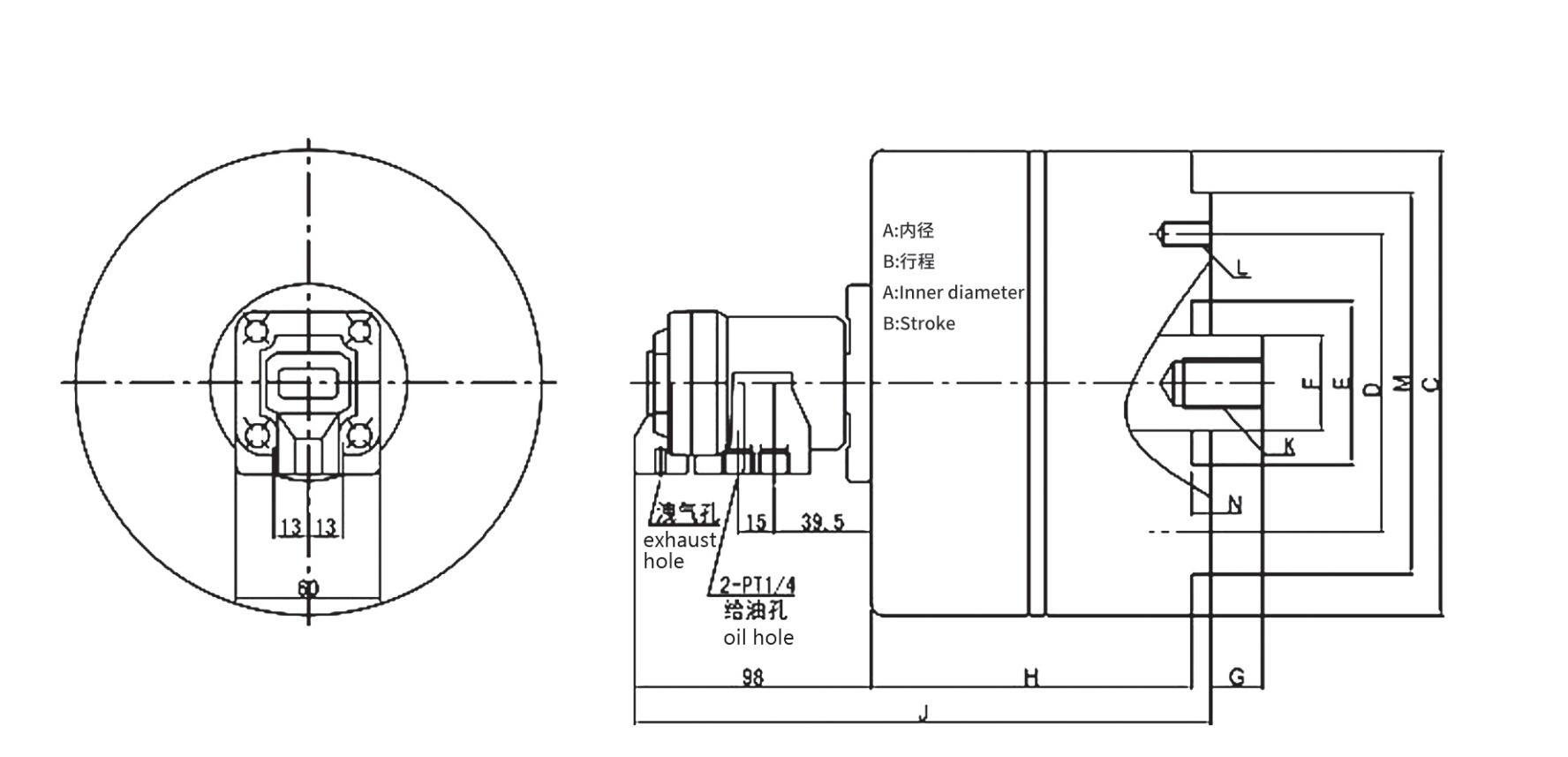

| Size parameters | |||||||||||||
| Model/Spec. | A | B | C | D | E h7 | F | G max. | G min. | H | J | K | L | N |
| SQ-130B | 130 | 12 | 160 | 90 | 65 | 25 | 45 | 30 | 113 | 221 | M16×25 | 6-M8×18 | 5 |
| SQ-150B | 150 | 20 | 180 | 125 | 100 | 30 | 31 | 11 | 132.5 | 232.5 | M20x30 | 6-M10×18 | 5 |
| SQ-160B | 160 | 25 | 195 | 145 | 100 | 32 | 41 | 16 | 152 | 264 | M20×35 | 6-M12×20 | 5 |
| SQ-200B | 200 | 31 | 238 | 145 | 100 | 36 | 44 | 14 | 169 | 280 | M24×35 | 6-M12×20 | 5 |
-
