Product Details

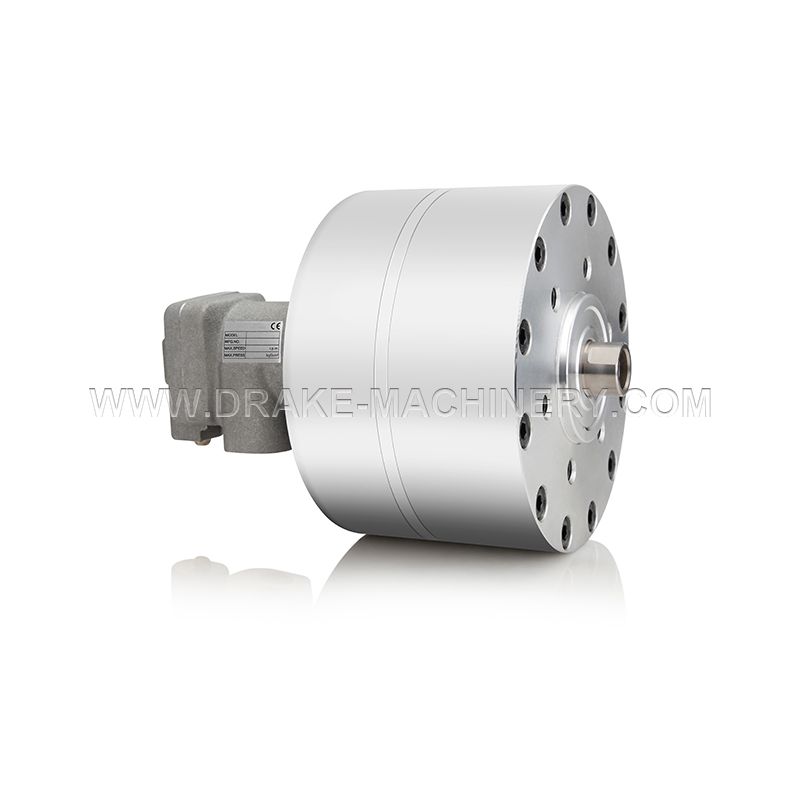

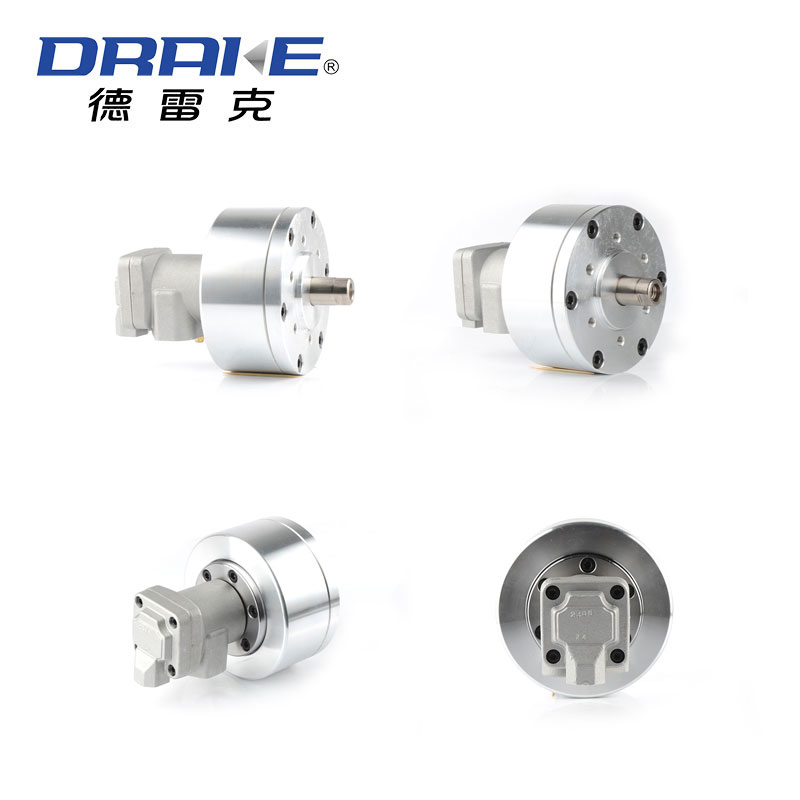

Product Feature:
It is made of compact and light aluminum alloy. It is low inertia and lightweight and can reduce the load on the spindle of the machine.
Solid rotary cylinder High-speed rotary balance, high life, internal components are imported originals.
High-pressure type, long-stroke type, oversized cylinder type can be customized according to customer's requirements.

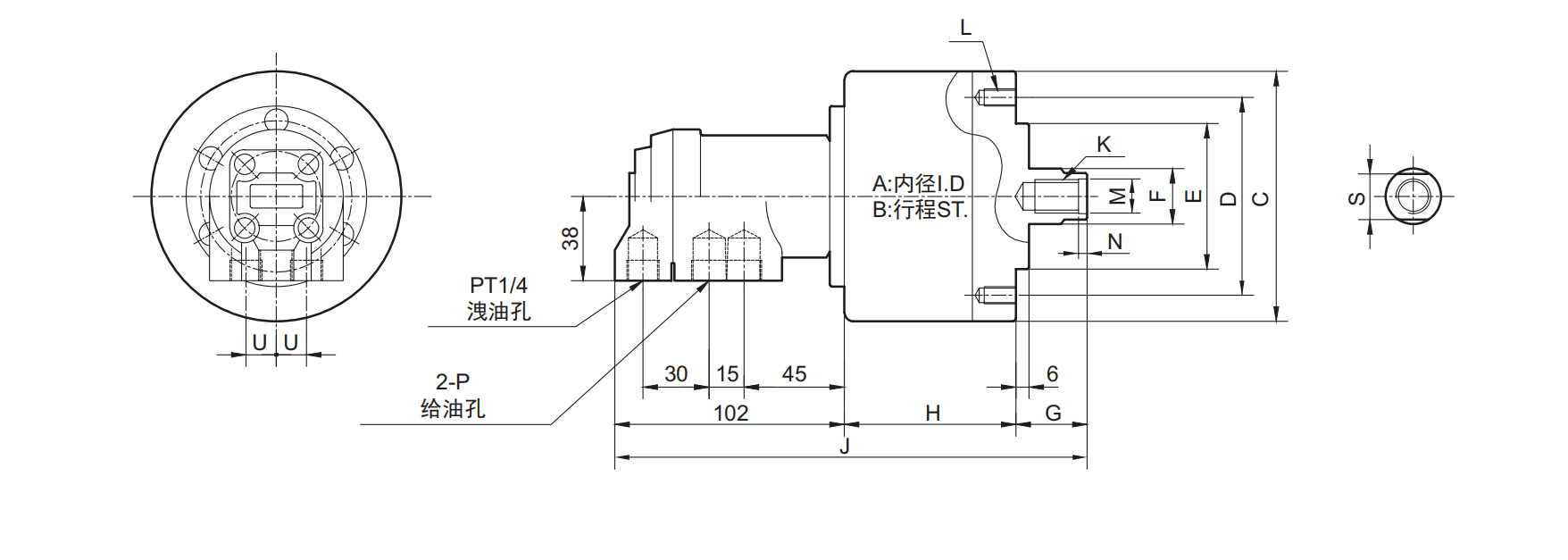

Product Size
Product Parameters
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Performance parameters | |||||||
| Model/Spec. | Piston area (cm²) | Stroke (mm) | Highest turnover number min-1(rpm) | Maximum working pressure MPa(kgf/cm²) | GD2 (kg.m²) | Weight (kg) | |
| Press side | Pull side | ||||||
| SH65 | 31 | 27.9 | 15 | 6000 | 3.5(35) | 0.01 | 2.9 |
| SH80 | 47.7 | 42.8 | 15 | 6000 | 3.5(35) | 0.01 | 3.4 |
| SH100 | 75.4 | 70.5 | 20 | 5500 | 3.5(35) | 0.04 | 4.9 |
| SH125 | 119.6 | 112.5 | 25 | 5500 | 3.5(35) | 0.08 | 6.8 |
| SH150 | 173.6 | 157.7 | 30 | 4000 | 4.0(40) | 0.18 | 11.5 |
| SH200 | 310 | 286.3 | 35 | 4000 | 4.0(40) | 0.38 | 20.4 |
| Size parameters | |||||||||||||||
| Model/Spec. | A | B | C | D | E h7 | F | G max. | G min. | H | J | M H8 | N | K | L | 2-P |
| SH65 | 65 | 15 | 98 | 80 | 60 | 22 | 45 | 30 | 74 | 175 | / | / | M12×30 | 6-M8×16 | PT3/8 |
| SH80 | 80 | 15 | 112 | 90 | 65 | 25 | 45 | 30 | 74 | 175 | / | / | M16×30 | 6-M8×16 | PT3/8 |
| SH100 | 100 | 20 | 135 | 100 | 80 | 30 | 45 | 25 | 89 | 190 | / | / | M20×35 | 6-M10×20 | PT3/8 |
| SH125 | 125 | 25 | 160 | 130 | 110 | 36 | 50 | 25 | 96 | 197 | / | / | M24×44 | 6-M12×20 | PT3/8 |
| SH150 | 150 | 30 | 190 | 130 | 110 | 45 | 55 | 25 | 105 | 206 | 31 | 5 | M30×45 | 12-M12×24 | PT3/8 |
| SH200 | 200 | 35 | 245 | 145 | 120 | 55 | 70 | 35 | 130 | 231 | 37 | 5 | M36×60 | 12-M16×30 | PT3/8 |
-
