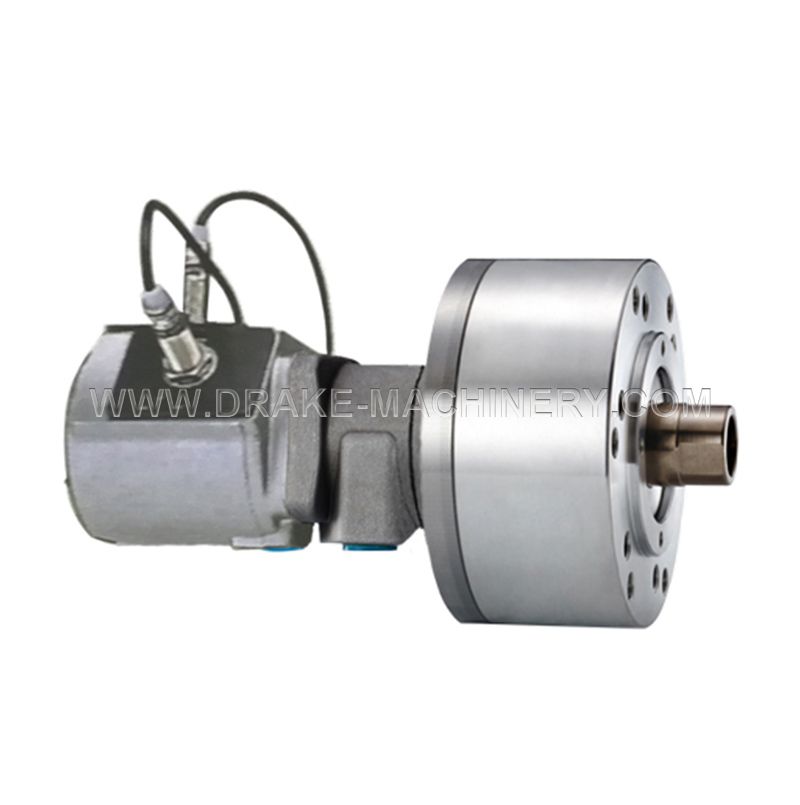

RS Rotating Hydraulic Cylinder with Stroke Control and Safety Device

Inquire Now Next

Product Size

Product Parameters

Hydraulic cylinder stroke control, hydraulic cylinder stroke limiter, and rotating hydraulic cylinder are essential components in various industrial applications. They ensure precise movement, limit excessive travel, and provide rotational functionality, enhancing performance and safety across different machinery systems.

● The cylinder body is made of high quality aluminum alloy, lightweight, small and durable.

● High speed performance stabiling.

● With built-in"check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.

● Induction typeb is close to switch, the stroke adjustment is easy, can make the cylinder correct action.

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

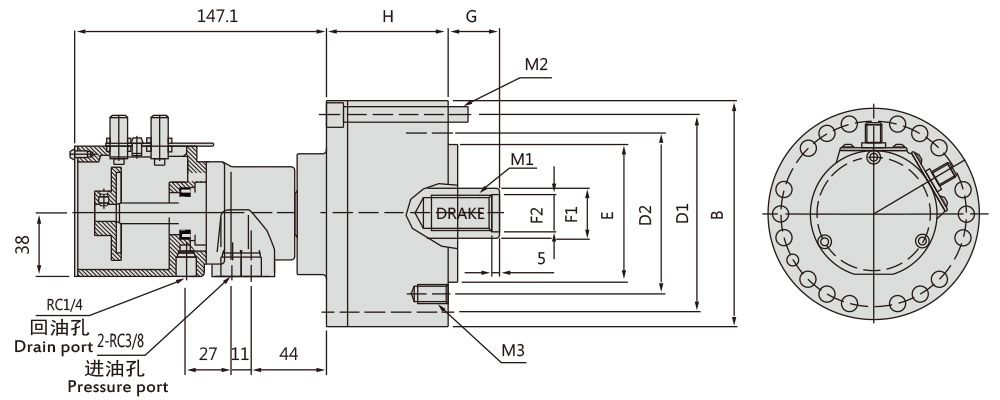

Dimensions(mm)
Spec	A	B	D1	D2	E(H7)	F1	F2(H8)	G		H	M1	M2	M3
Model	A	B	D1	D2	E(H7)	F1	F2(H8)	max	min	H	M1	M2	M3
RS-75	75	107	90	90	65	28	21	45	30	60	M20x35	M8x65	6-M8x16
RS-100	100	132	115	100	80	28	21	45	25	77	M20x35	M8x80	6-M10x20
RS-125	125	160	140	130	110	35	25	50		85	M24x40	M8x90	6-M12x20
RS-150	150	190	170	130	110	45	31	55		98	M10x100	M10x100	12-M12x24

Specifications
Spec	Eff piston area(cm²)		Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Max.pull force kgf(KN)		Moment of inertial (kg.m²)	Weight(kg)
Model	Extend	Retract	Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Extend	Retract	Moment of inertial (kg.m²)	Weight(kg)
RS-75	41.7	37	15	6000	40(4.0)	1500(14.7)	1330(13)	0.02	4.6
RS-100	75.4	70.8	20	5000		2710(26.6)	2550(25)	0.04	4.8
RS-125	119.6	111.5	25			4300(42.1)	4010(39.3)	0.06	6.5
RS-150	173.6	159.2	30			6250(61.2)	5730(56.1)	0.1	10.5
The drain port should be independently connected to oil tank to avoid back pressure.
