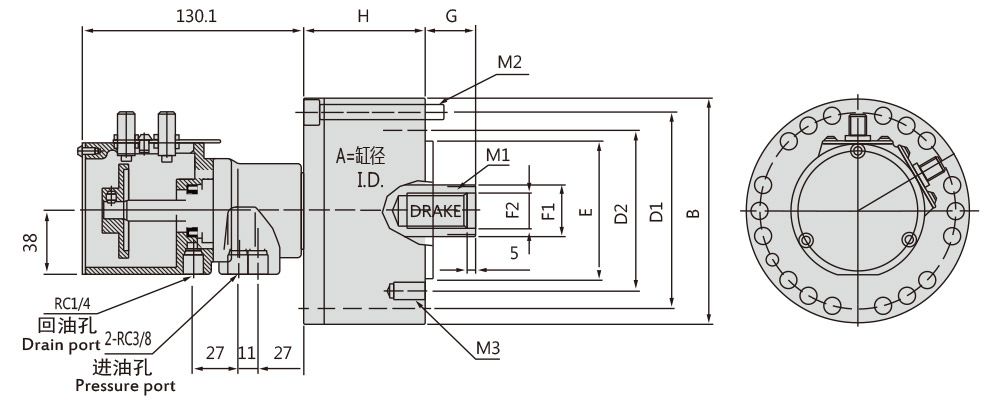

Product Size
Product Parameters

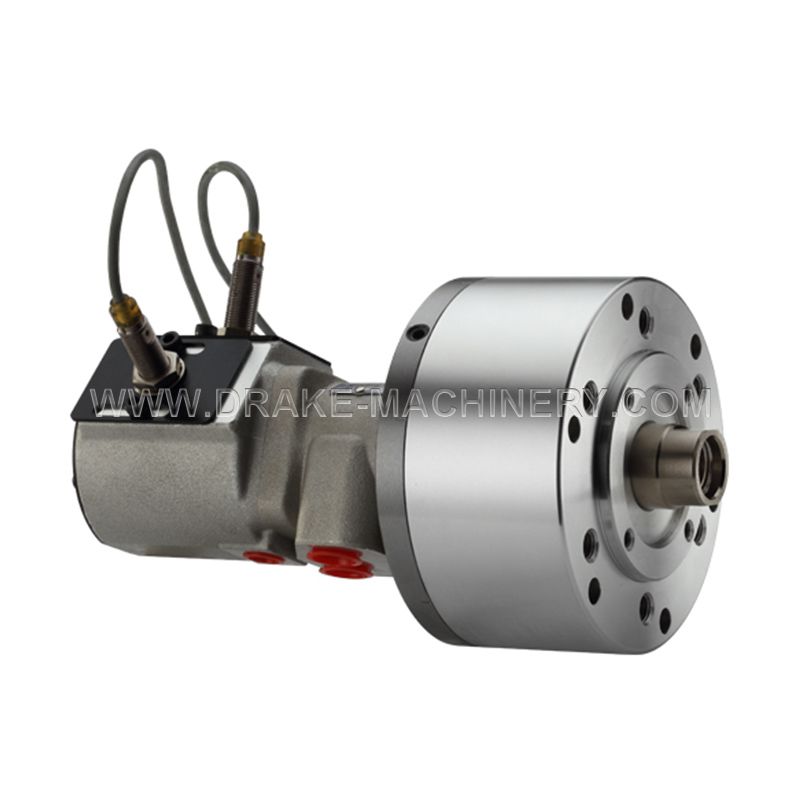

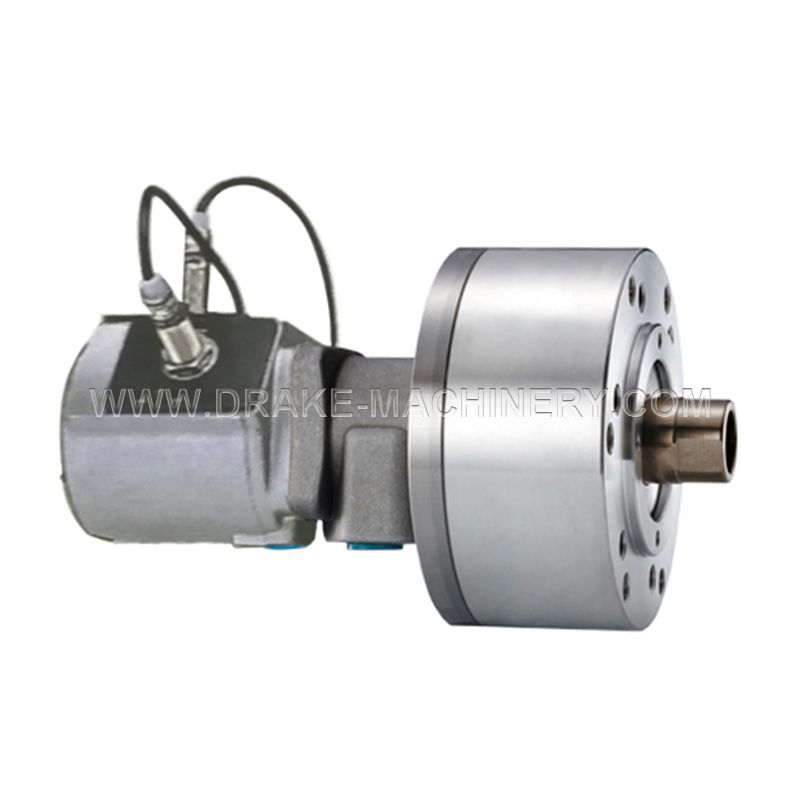

● The cylinder body is made of high quality aluminum alloy, lightweight, small and durable.
● High speed performance stabiling.
● Induction typeb is close to switch, the stroke adjustment is easy, can make the cylinder correct action.

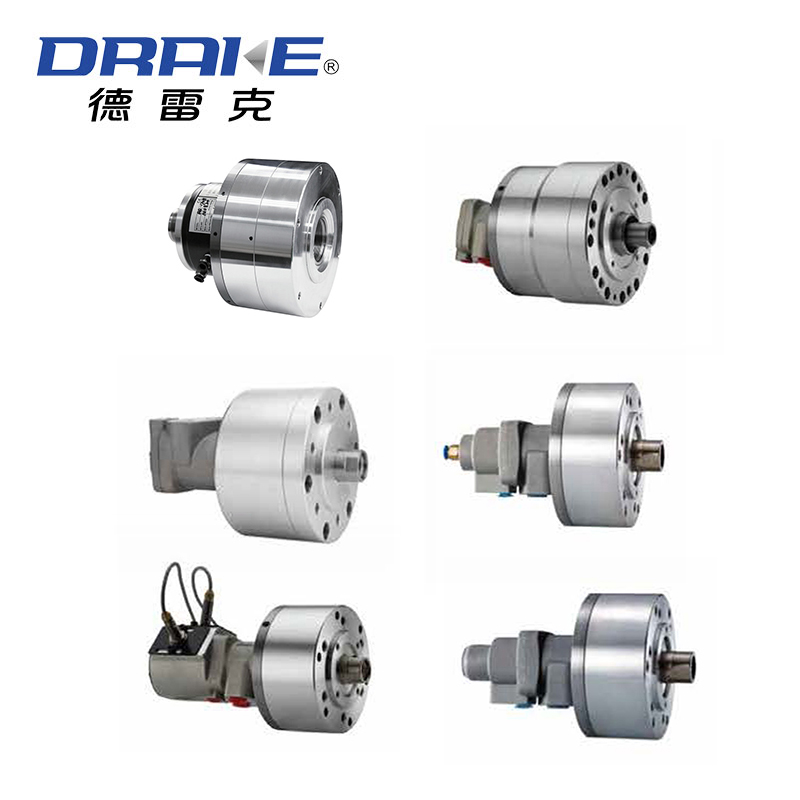

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Dimensions(mm) | |||||||||||||
| Spec | A | B | D1 | D2 | E(H7) | F1 | F2(H8) | G | H | M1 | M2 | M3 | |
| Model | max | min | |||||||||||
| RS-75N | 75 | 107 | 90 | 90 | 65 | 28 | 21 | 45 | 30 | 60 | M20x35 | M8x65 | 6-M8x16 |
| RS-100N | 100 | 132 | 115 | 100 | 80 | 28 | 21 | 45 | 25 | 77 | M20x35 | M8x80 | 6-M10x20 |
| RS-125N | 125 | 160 | 140 | 130 | 110 | 35 | 25 | 50 | 85 | M24x40 | M8x90 | 6-M12x20 | |
| RS-150N | 150 | 190 | 170 | 45 | 31 | 55 | 98 | M10x100 | M10x100 | 12-M12x24 | |||
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| RS-75N | 41.7 | 37 | 15 | 6000 | 40(4.0) | 1500(14.7) | 1330(13) | 0.02 | 4.6 |
| RS-100N | 75.4 | 70.8 | 20 | 5000 | 2710(26.6) | 2550(25) | 0.04 | 4.8 | |
| RS-125N | 119.6 | 111.5 | 25 | 4300(42.1) | 4010(39.3) | 0.06 | 6.5 | ||
| RS-150N | 173.6 | 159.2 | 30 | 6250(61.2) | 5730(56.1) | 0.1 | 10.5 | ||
| The drain port should be independently connected to oil tank to avoid back pressure. | |||||||||
-
