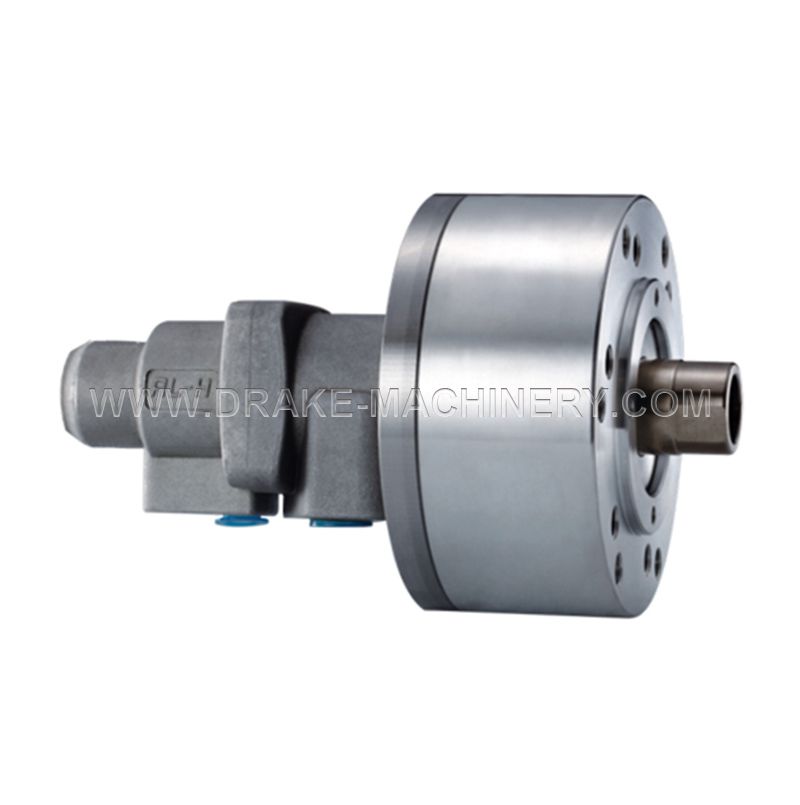

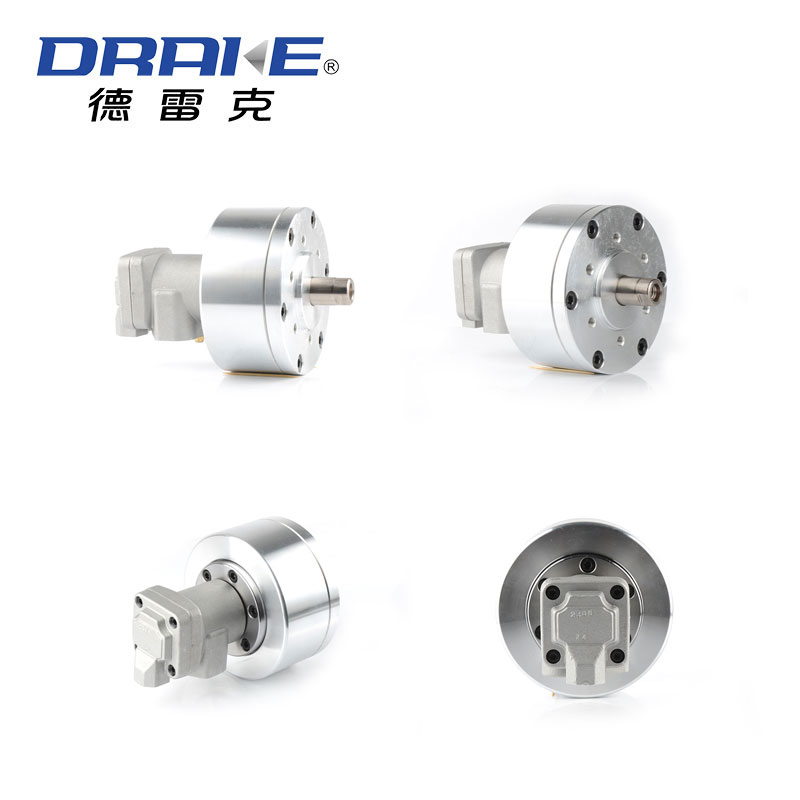

RL-N Rotating Hydraulic Cylinder with Coolant Connection

Inquire Now Next

Product Details

Compact and light weight, made of aluminum alloy to reduce spindle load. Suitable for high speed turning.

Product Size

Product Parameters

● The cylinder body is made of high quality aluminum alloy, lightweight,small and durable.

● High speed performance stabiling.

● Waterflood rotary oil cylinder can be supplier from the back and.

● The rotary cylinder should not run without liquid throughn coolant port.

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

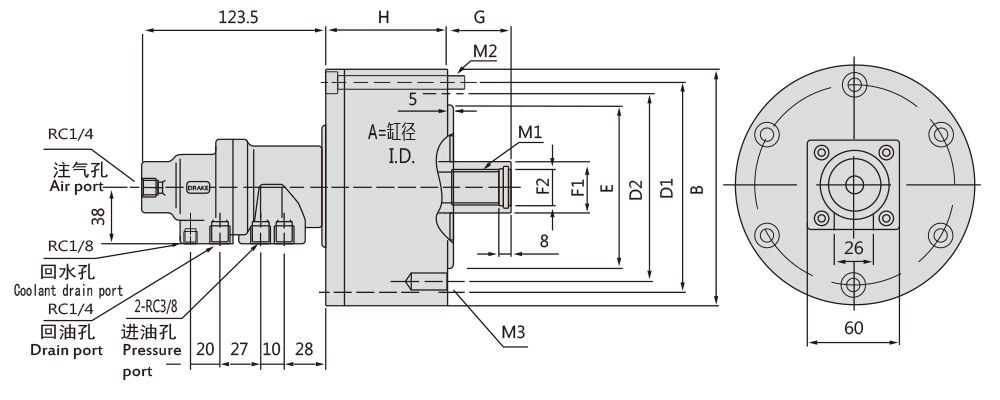

Dimensions(mm)
Spec	A	B	D1	D2	E(H7)	F1	F2(H8)	G		H	M1	M2	M3
Model	A	B	D1	D2	E(H7)	F1	F2(H8)	max	min	H	M1	M2	M3
RL-75N	75	107	90	90	65	28	21	45	30	60	M20x35	M8x65	6-M8x16
RL-100N	100	132	115	100	80	28	21	45	25	77	M20x35	M8x80	6-M10x20
RL-125N	125	160	140	130	110	35	25	50		85	M24x40	M8x90	6-M12x20
RL-150N	150	190	170	130	110	45	31	55		98	M10x100	M10x100	12-M12x24

Specifications
Spec	Eff piston area(cm²)		Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Air connection Max.pressure kgf/cm²(Mpa)	Max.pull force kgf(KN)		Moment of inertial (kg.m²)	Weight(kg)
Model	Extend	Retract	Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Air connection Max.pressure kgf/cm²(Mpa)	Extend	Retract	Moment of inertial (kg.m²)	Weight(kg)
RL-75N	41.7	37	15	6000	40(4.0)	35(3.5)	1500(14.7)	1330(13)	0.02	4.6
RL-100N	75.4	70.8	20	5000			2710(26.6)	2550(25)	0.04	4.8
RL-125N	119.6	111.5	25				4300(42.1)	4010(39.3)	0.06	6.5
RL-150N	173.6	159.2	30				6250(61.2)	5730(56.1)	0.1	10.5
The drain port should be independently connected to oil tank to avoid back pressure.
