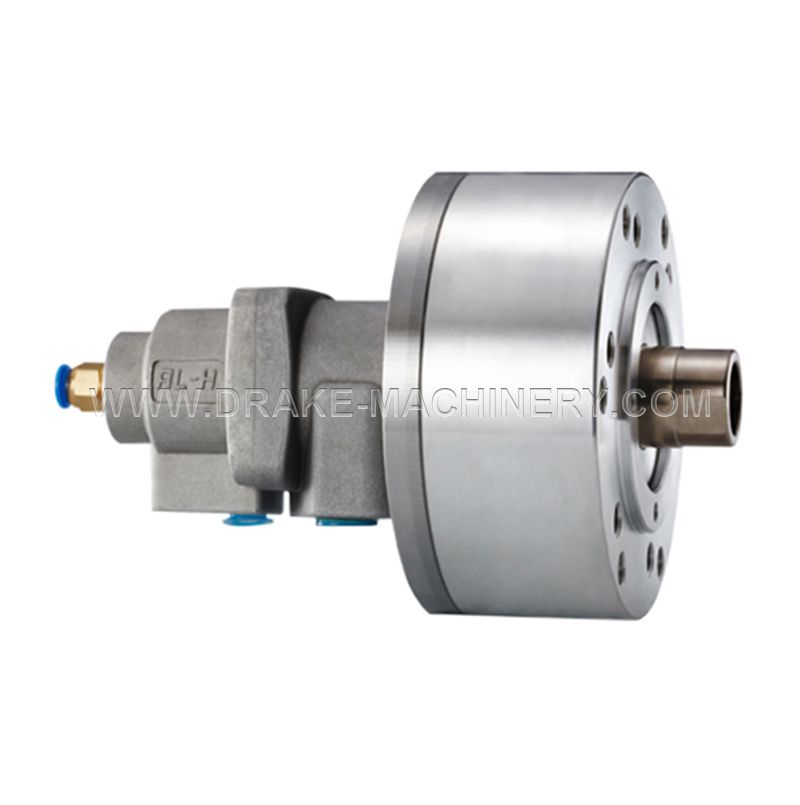

RL-AN Rotating Hydraulic Cylinder with Air Connection

Inquire Now Next

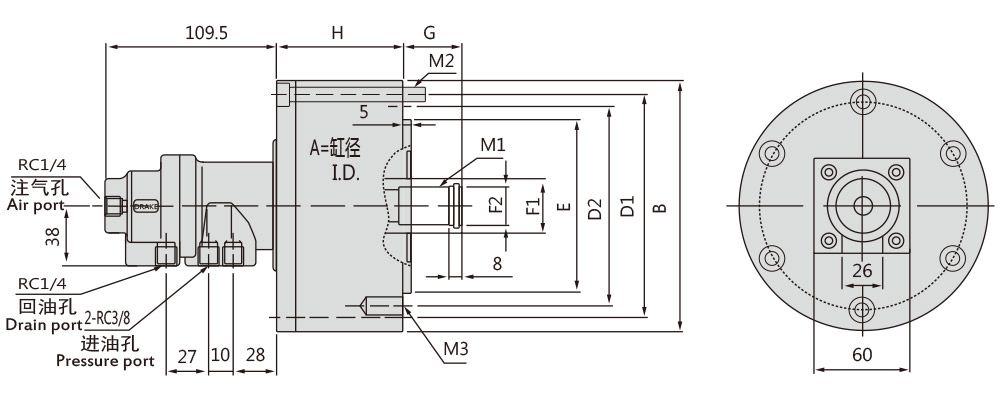

Product Size

Product Parameters

● The cylinder body is made of high quality aluminum alloy, lightweight, small and durable.

● High speed performance stabiling.

● Can screw it from the rear and of the cyindor when mounting.

● Air jet rotating oil cylinder of can be supplier from the back end.

● When used a little oil mist should be contained.

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

Dimensions(mm)
Spec	A	B	D1	D2	E(H7)	F1	F2(H8)	G		H	M1	M2	M3
Model	A	B	D1	D2	E(H7)	F1	F2(H8)	max	min	H	M1	M2	M3
RL-A75N	75	107	90	90	65	28	21	45	30	60	M20x35	M8x65	6-M8x16
RL-A100N	100	132	115	100	80	28	21	45	25	77	M20x35	M8x80	6-M10x20
RL-A125N	125	160	140	130	110	35	25	50		85	M24x40	M8x90	6-M12x20
RL-A150N	150	190	170	130	110	45	31	55		98	M10x100	M10x100	12-M12x24

Specifications
Spec	Eff piston area(cm²)		Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Air connection Max.pressure kgf/cm²(Mpa)	Max.pull force kgf(KN)		Moment of inertial (kg.m²)	Weight(kg)
Model	Extend	Retract	Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Air connection Max.pressure kgf/cm²(Mpa)	Extend	Retract	Moment of inertial (kg.m²)	Weight(kg)
RL-A75N	41.7	37	15	6000	40(4.0)	8(0.8)	1500(14.7)	1330(13)	0.02	4.6
RL-A100N	75.4	70.8	20	5000			2710(26.6)	2550(25)	0.04	4.8
RL-A125N	119.6	111.5	25				4300(42.1)	4010(39.3)	0.06	6.5
RL-A150N	173.6	159.2	30				6250(61.2)	5730(56.1)	0.1	10.5
The drain port should be independently connected to oil tank to avoid back pressure.
