RD-N Double Rod Rotating Cylinder

Inquire Now Next

Product Details

Elevate your industrial operations with the RD-N Double Rod Rotating Cylinder. Experience the advantages of its dual rod design, versatile functionality, space-saving design, and reliability. Enhance efficiency, achieve precise rotational movement, and expand your industrial capabilities with this high-performance rotating cylinder.

Product Size

Product Parameters

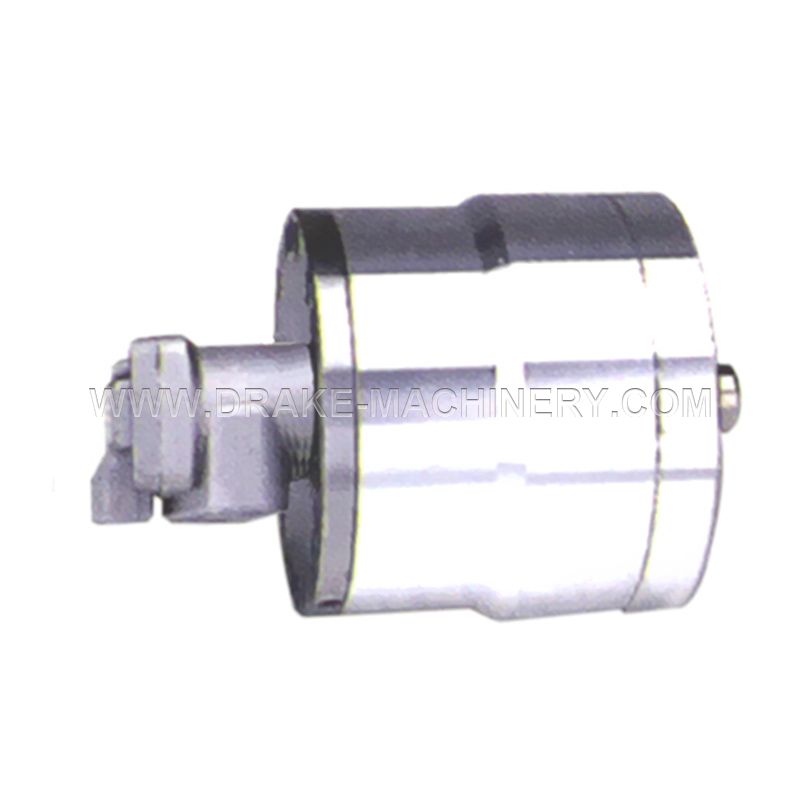

The cylinder body is made of high quality aluminum alloy, lightweight, small, double rod rotary cylinder.

Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!

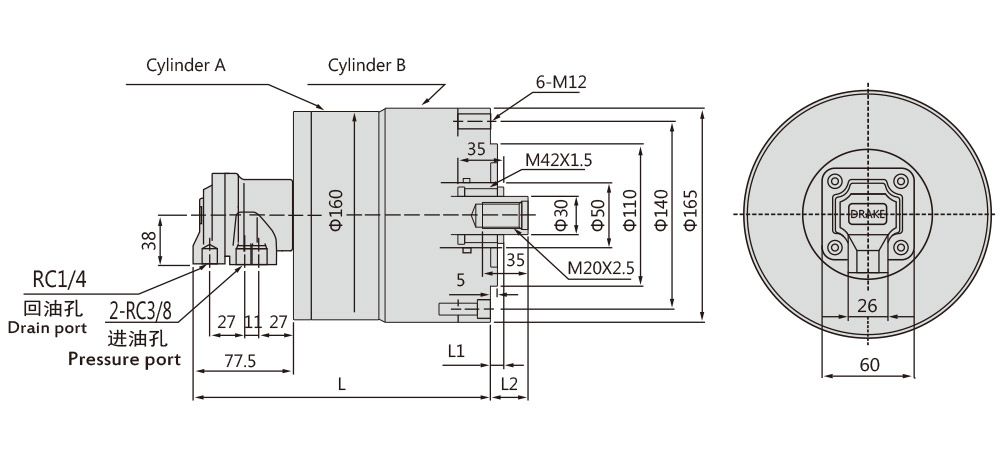

Dimensions(mm)
Spec	A	B	L	L1 max.	L1 min	L2 max.	L2 min
Model
RD-120N	125	130	215	35	15	60	40
RD-125N			225		10	55	30

Specifications
Spec	Eff piston area(cm²)				Piston stroke(mm)	Max. Speed (r/min)	Max. pressure MPa(kgf/cm²)	Moment of inertial (kg.m²)	Weight(kg)
Model	Extend		Retract
	A	B	A	B
RD-120N	122.7	126	116	113	20	5000	30(3.0)	0.14	11.2
RD-125N					25			0.15	11.4
