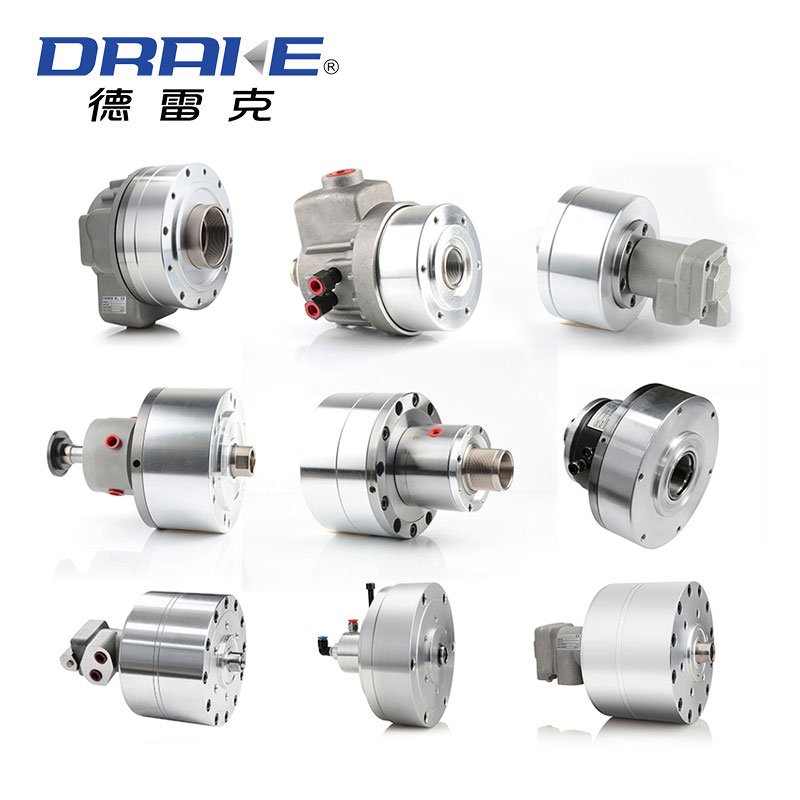

SH-CN Rotating hydraulic cylinder with stroke control and satety device

Inquire Now Next

Product Details

1.For short form, high speed and stroke control.

2.With proximity sensor , the movement of the position is easy to adjust and confirm when operating.

3.Built_in safety check valves and pressure relief valves.

4.Can screw it from the rear end of the cylinder when mounting.

5.The drain port should be independently connected to oil tank to avoid back pressure.

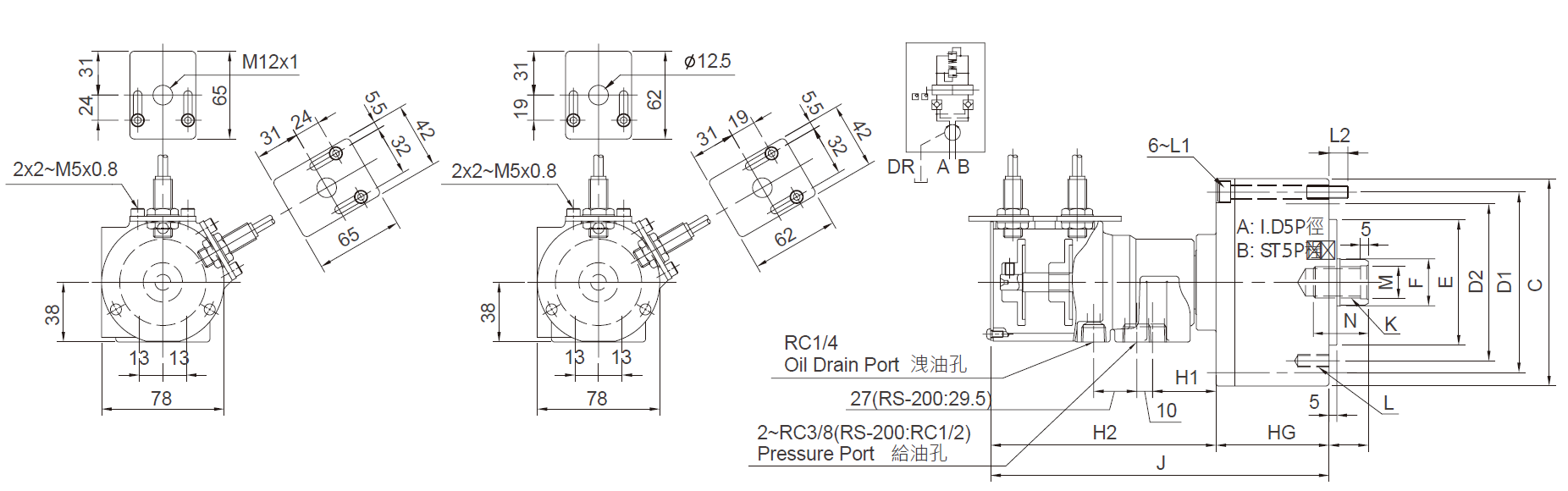

Product Size

Product Parameters

Model/Spec.	Piston area (cm²)		Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
Model/Spec.	Press side	Pull side	Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
SH75CN	43	37.1	15	6000	4.0(40)	0.01	3.4
SH100CN	77.4	71.5	20	6000	4.0(40)	0.04	4.9
SH125CN	121.6	113.1	25	6000	4.0(40)	0.05	7.4
SH150CN	175.6	160.8	30	5500	4.0(40)	0.1	10.7
SH200CN	313	290.4	35	5500	4.0(40)	0.29	15.9
