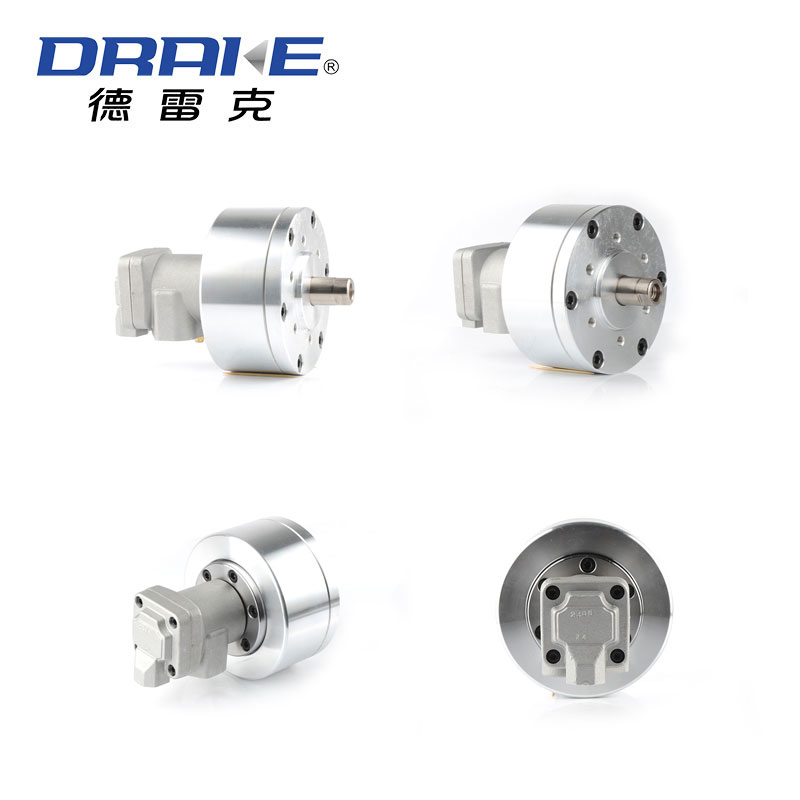

SH-C Rotating hydraulic cylinder with safety device

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

For short form, light weight and high speed rotary cylinder.2. Built-in safety check valves and pressure relief valves.3.Can screw it from the rear end of the cylinder when mounting.4The drain port should be independently connected to oil tank to avoid back pressure

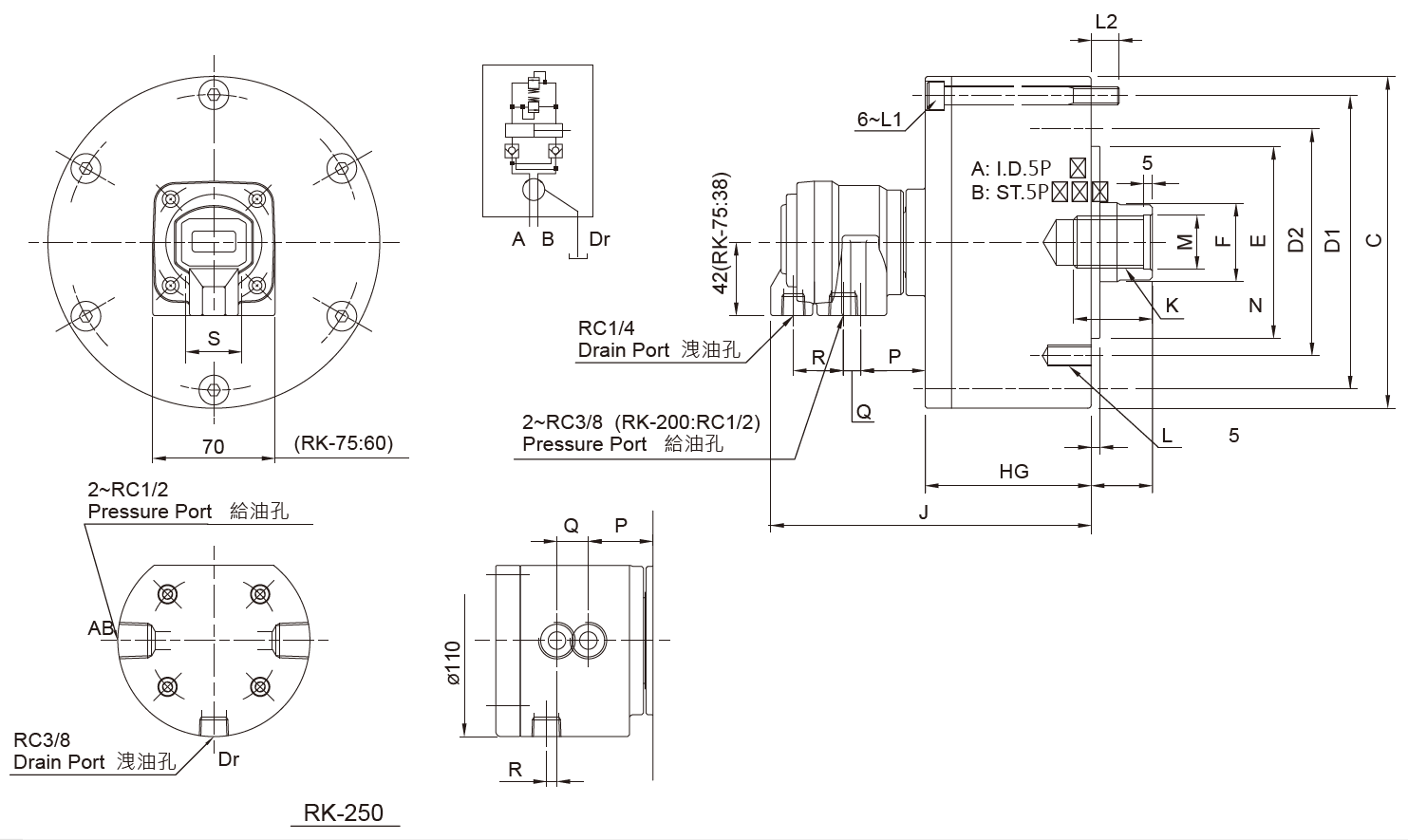

Product Size

Product Parameters

Model/Spec.	Piston area (cm²)		Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Coolant connection Max.pressure MPa（kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
Model/Spec.	Press side	Pull side	Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Coolant connection Max.pressure MPa（kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
SH75C	44.2	37.1	15	6000	4.0(40)	0.01	2.9	3
SH100C	78.5	71.5	20	6000	4.0(40)	0.03	4.4	4.5
SH125C	122.7	113.1	25	6000	4.0(40)	0.05	6.9	7
SH150C	176.7	160.8	30	5500	4.0(40)	0.09	9.5	9.6
SH200C	314.1	290.4	35	5500	4.0(40)	0.28	15.5	15.5

Model/Spec.	A	B	C	D1	D2	E(H7)	F	G		H	J	K	L	L1	L2	M(H8)	N	P	Q	R	S
Model/Spec.	A	B	C	D1	D2	E(H7)	F	MAX	MIN	H	J	K	L	L1	L2	M(H8)	N	P	Q	R	S
SH75C	75	15	107	90	90	65	30	45	30	57	148	M20x2.5	6-M8x16	M8x60	12	21	35	41.5	10	27.5	26
SH100C	100	20	132	115	100	80	30	45	25	72	163	M20x2.5	6-M10x20	M8x75	12	21	35	39.5	10	28.5	32
SH125C	125	25	160	140	130	110	35	50	25	82	172	M24x3	6-M12x20	M8x85	12	25	45	38.5	10	28.5	32
SH150C	150	30	190	170	130	110	45	55	25	95	184	M30x3.5	6-M12x24	M10x100	16	32	45	37	10	28.5	32
SH200C	200	35	245	220	145	120	55	70	35	15	201	M36x4	6-M16x30	M10x125	21	38	60	38	6	28.5	28
