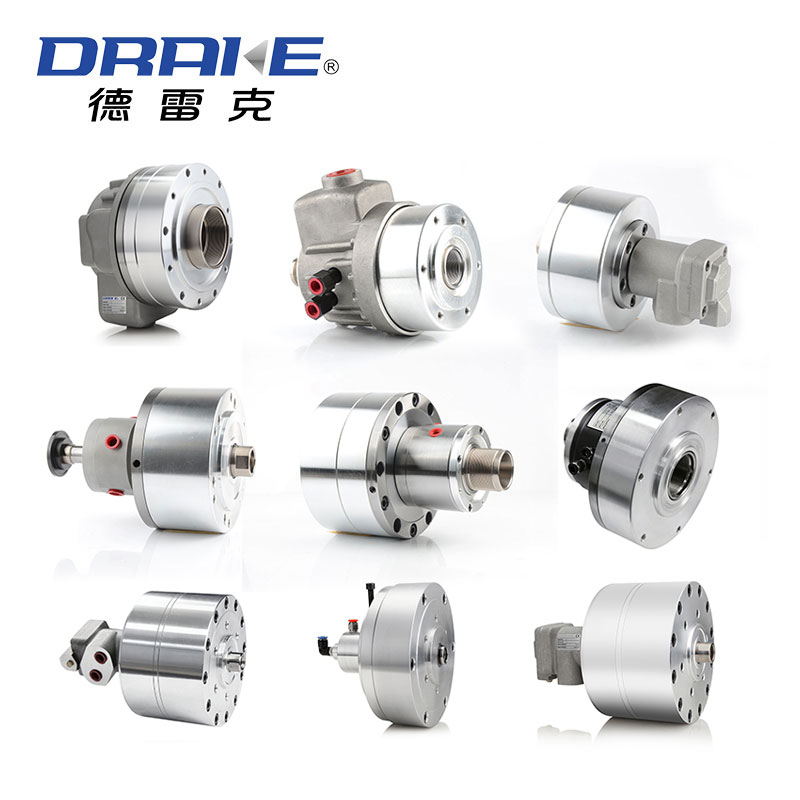

SH-B Rotating hydraulic cylinder with air

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

To allow compressed air to be feed from the rear end ofthe distributor through the rotating union.2.Can screw it from the rear end of the cylinder when mounting3.When used, a little oil mist should be contained.

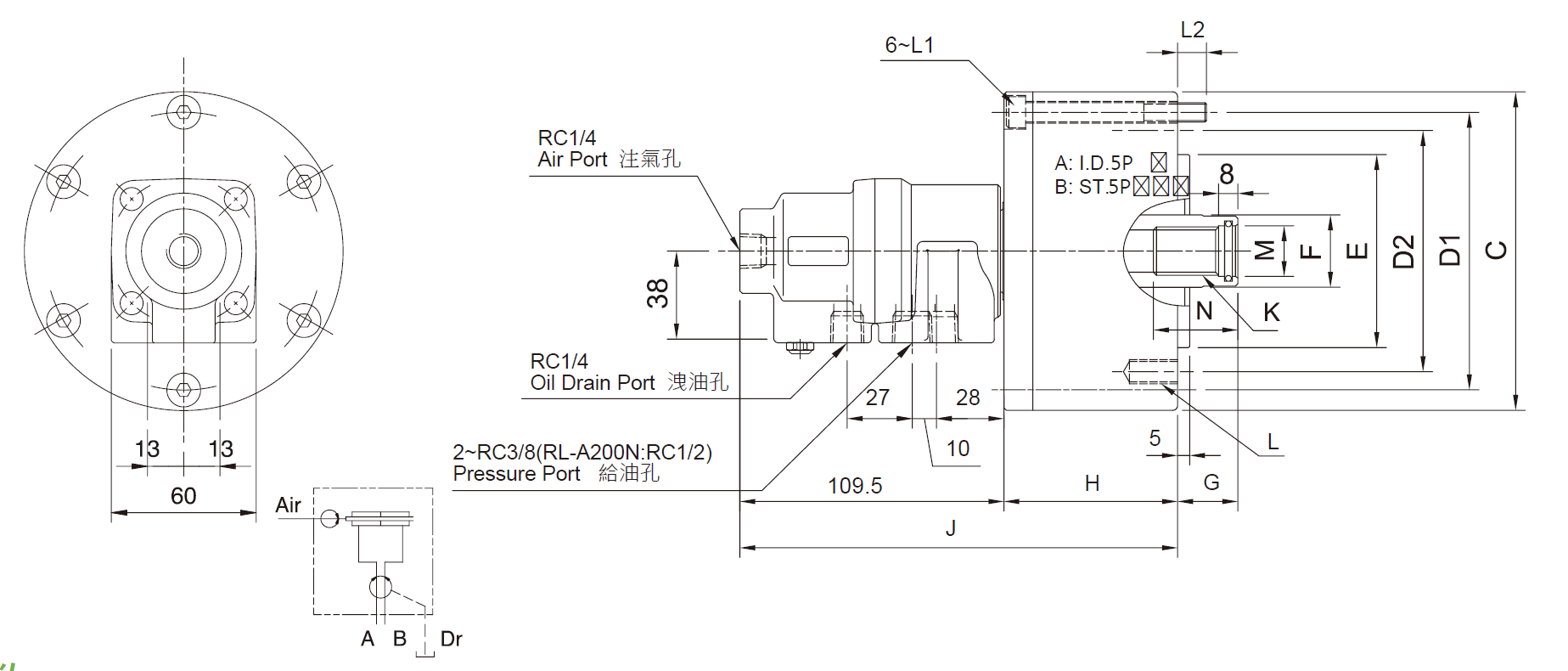

Product Size

Product Parameters

Model/Spec.	Piston area (cm²)		Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Coolant connection Max.pressure MPa（kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
Model/Spec.	Press side	Pull side	Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	Coolant connection Max.pressure MPa（kgf/cm²）	Moment of inertia kg/m²	Weight(kg)
SH75B	42.6	37.1	15	6000	4.0(40)	0.8(8)	0.01	3
SH100B	77	71.5	20	6000	4.0(40)	0.8(8)	0.04	4.5
SH125B	121.2	113.1	25	6000	4.0(40)	0.8(8)	0.06	7
SH150B	175.2	160.8	30	5500	4.0(40)	0.8(8)	0.1	9.6
SH200B	312.5	290.4	35	5500	4.0(40)	0.8(8)	0.29	15.5

Model/Spec.	A	B	C	D1	D2	E(H7)	F	G		H	J	K	L	L1	L2	M(H8)	N
Model/Spec.	A	B	C	D1	D2	E(H7)	F	MAX	MIN	H	J	K	L	L1	L2	M(H8)	N
SH75B	75	15	107	90	90	65	30	45	30	57	166	M20x2.5	6-M8x16	M8x60	12	21	35
SH100B	100	20	132	115	100	80	30	45	25	72	181	M20x2.5	6-M10x20	M9x75	12	21	35
SH125B	125	25	160	140	130	110	35	50	25	82	191	M24x3	6-M12x20	M8x85	12	25	45
SH150B	150	30	190	170	130	110	45	55	25	95	204	M30x3.5	6-M12x24	M10x100	16	32	45
SH200B	200	35	245	220	145	120	55	70	35	15	225	M36x4	6-M16x30	M10x125	21	38	60
