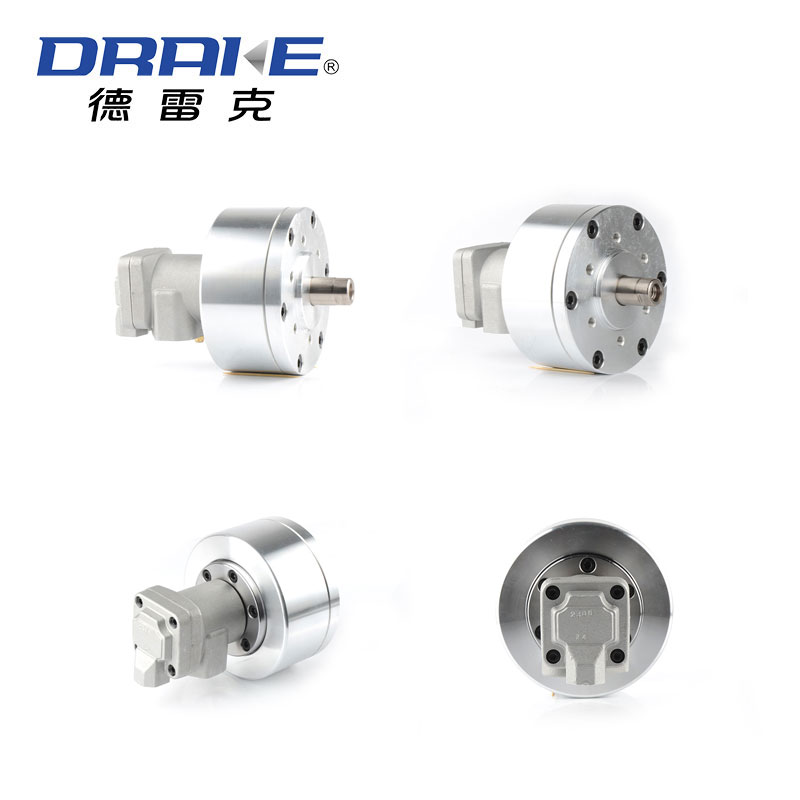

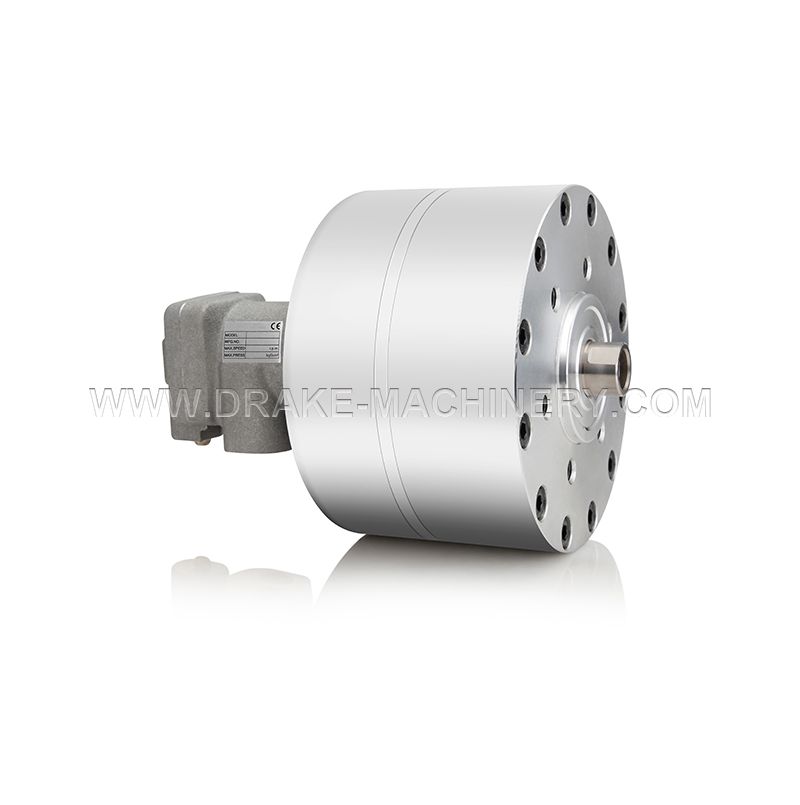

Product Details
To allow coolant to be feed from the rear end of the distributor through the rotating union.2.Can screw it from the rear end of the cylinder when mounting3.The drain port should be independently connected to oil tank to avoid back pressure.4.The rotary cylinder should not run without liquid through coolant port.
Product Size
None
Product Parameters
| Model/Spec. | Piston area (cm²) | Stroke (mm) | Hightest turnover number min-1(rpm) | Maximum working pressure MPa(kgf/cm²） | Coolant connection Max.pressure MPa（kgf/cm²） | Moment of inertia kg/m² | Weight(kg) | |
| Press side | Pull side | |||||||
| SH75A | 42.6 | 37.1 | 15 | 6000 | 4.0(40) | 3.5(35) | 0.01 | 3 |
| SH100A | 77 | 71.5 | 20 | 6000 | 4.0(40) | 3.5(35) | 0.04 | 4.5 |
| SH125A | 121.2 | 113.1 | 25 | 6000 | 4.0(40) | 3.5(35) | 0.06 | 7 |
| SH150A | 175.2 | 160.8 | 30 | 5500 | 4.0(40) | 3.5(35) | 0.1 | 9.6 |
| SH200A | 312.5 | 290.4 | 35 | 5500 | 4.0(40) | 3.5(35) | 0.29 | 15.5 |
| Model/Spec. | A | B | C | D1 | D2 | E(H7) | F | G | H | J | K | L | L1 | L2 | M(H8) | N | |
| MAX | MIN | ||||||||||||||||
| SH75A | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 180 | M20x2.5 | 6-M8x16 | M8x60 | 12 | 21 | 35 |
| SH100A | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 195 | M20x2.5 | 6-M10x20 | M8x75 | 12 | 21 | 35 |
| SH125A | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 205 | M24x3 | 6-M12x20 | M8x85 | 12 | 25 | 45 |
| SH150A | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 218 | M30x3.5 | 12-M12x24 | M10x100 | 16 | 32 | 45 |
| SH200A | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 15 | 240 | M36x4 | 12-M16x30 | M10x125 | 21 | 38 | 60 |
-
