Short travel, high speed, stroke control type rotary hydraulic cylinder.2.The inductive feed-in switch is easy to adjust the stroke, and can confirm thecorrect operation of the oi pressure3.lt can be fixed by the rear end during installation.4.The piping of the drain hole must be connected separately to the oil pressure tankto avoid back pressure.

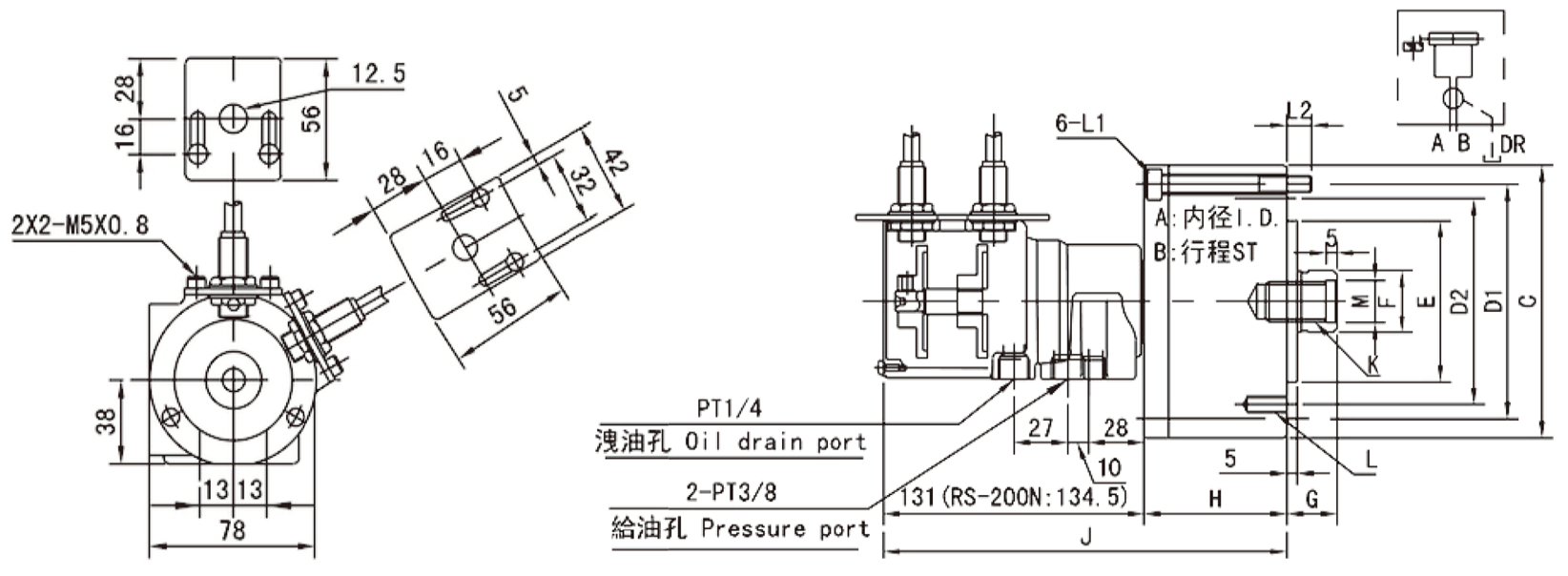

Product Size
Product Parameters
| Model | Piston area (cm²) | Stroke (mm) | Hightest turnover number min-1(rpm) | Maximum working pressure MPa(kgf/cm²） | GD²（kg.m²） | Weight(kg) | |
| Press side | Pull side | ||||||
| SH-75N | 43 | 37.1 | 15 | 6000 | 4.0(40) | 0.01 | 3.3 |
| SH-100N | 77.4 | 71.5 | 20 | 0.04 | 4.8 | ||
| SH-125N | 121.6 | 113.1 | 25 | 5500 | 0.05 | 7.3 | |
| SH-150N | 175.8 | 160.8 | 30 | 0.16 | 10.6 | ||
| SH-200N | 313 | 290.4 | 35 | 0.29 | 15.9 | ||
| Model/Spec. | A | B | C | D1 | D2 | E(h7) | F | G | H | J | K | L | L1 | L2 | M(H8) | |
| MAX | MIN | |||||||||||||||
| SH-75N | 75 | 15 | 107 | 90 | 65 | 30 | 45 | 30 | 57 | 188 | M20x2.5 | 6-M8x16 | M8-60 | 12 | 21 | |
| SH-100N | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 203 | M20x2.5 | 6-M10x20 | M8-75 | 12 | 21 |
| SH-125N | 125 | 25 | 160 | 140 | 130 | 11 | 35 | 50 | 25 | 82 | 213 | M24x3 | 6-M12x20 | M8-85 | 12 | 25 |
| SH-150N | 150 | 30 | 190 | 170 | 130 | 11 | 45 | 55 | 25 | 95 | 226 | M30x3.5 | 12-M12x24 | M10-100 | 16 | 31 |
| SH-200N | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 15 | 249.5 | M36x4 | 12-M16x30 | M10-125 | 21 | 37 |
-
