1. It is suitable for processing general machinery parts and it is cost-efficient.(Type: two jaws; three jaws).
Product Size
Product Parameters
YSC 3-JAW SLOID POWER CHUCKS
It is suitable for processing general machinery parts and it is cost-efficient. (Type: two jaws; three jaws)
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

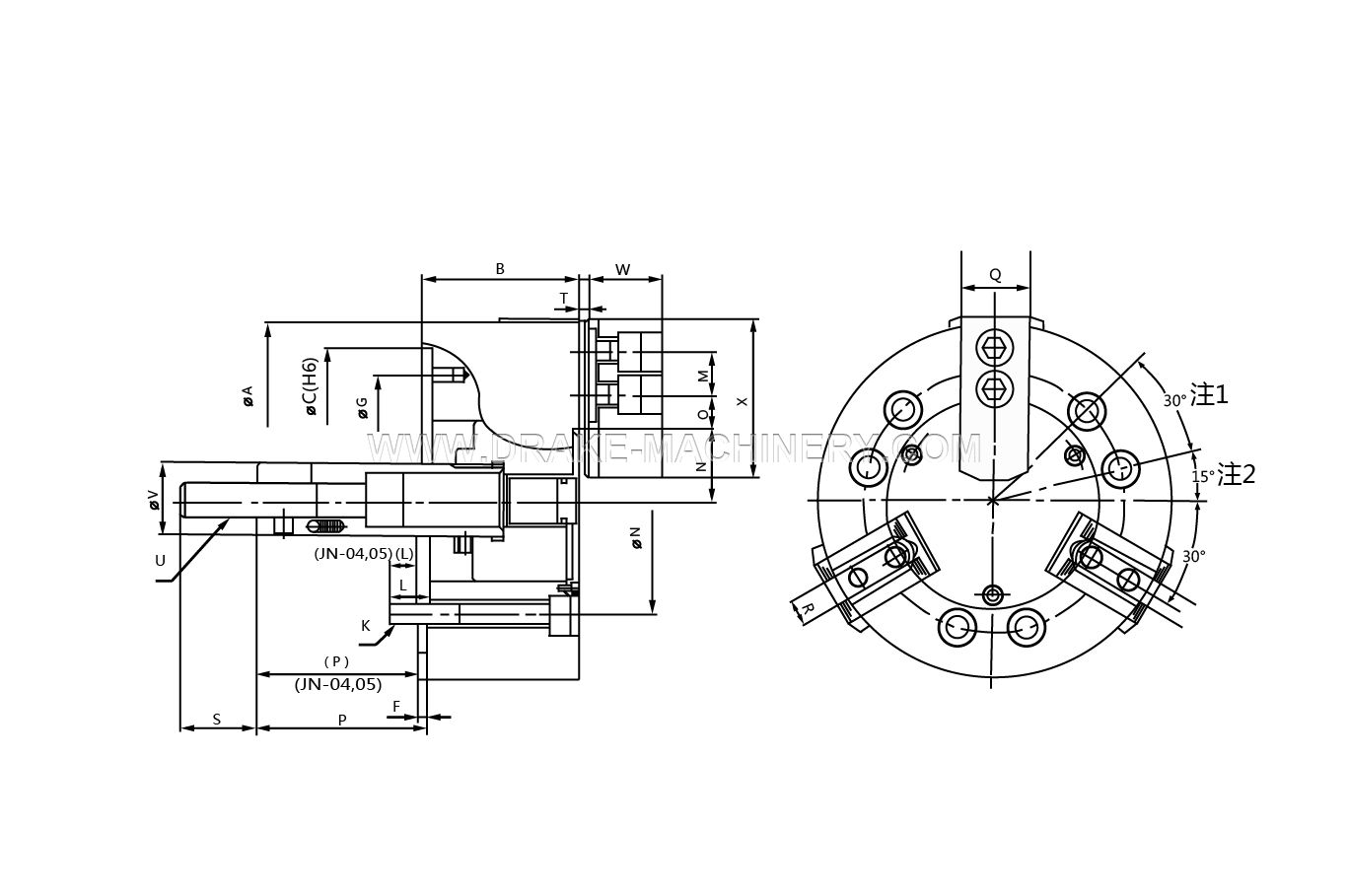

| DIMENSIONS | A (mm) | B (mm) | C(H6) (mm) | F (mm) | G (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N max (mm) | N min (mm) |
| TYPE | |||||||||||
| YS3-06C | 165 | 74 | 140 | 5 | 116 | 104.8 | 6-M10 | 14 | 20 | 37.8 | 33.55 |
| YS3-08C | 210 | 85 | 170 | 5 | 150 | 133.4 | 6-M12 | 18 | 25 | 46.3 | 41.90 |
| YS3-10C | 254 | 89 | 220 | 5 | 190 | 171.4 | 6-M16 | 20 | 30 | 51.4 | 47.00 |
YS3-12C | 304 | 106 | 220 | 6 | 190 | 171.4 | 6-M16 | 20 | 30 | 62.1 | 51.6 |
| DIMENSIONS | O man. (mm) | O min. (mm) | P man. (mm) | P mln. (mm) | Q (mm) | R (mm) | S (mm) | T (mm) | U (mm) | V (mm) | W (mm) | X (mm) |
| TYPE | ||||||||||||
| YS3-06C | 18 | 7.5 | 101.5 | 81.5 | 31 | 12.0 | 36 | 4 | M16×2.0P | 34 | 39 | 73 |
| YS3-08C | 22.5 | 9 | 127 | 106.0 | 35 | 14.0 | 36 | 5 | M20×2.5P | 38 | 42 | 95 |
| YS3-10C | 37.5 | 10.5 | 158 | 133.0 | 40 | 16.0 | 36 | 5 | M20×2.5P | 45 | 46 | 110 |
YS3-12C | 47 | 11 | 164 | 134 | 50 | 18 | 36 | 5 | M20×2.5P | 50 | 54 | 130 |
| DIMENSIONS | Plunger Stroke (mm) | JawStroke (DIA.mm) | Max.Speed (min-1) | Max.Pull Force kgf(KN) | Max.Gripping Force kgf(KN) | Matching Cylinder | Gripping Range (mm) | Max.Pressure kgf/cm2(Mpa) | Weigt(kg) | |
| TYPE | Max | Min | ||||||||
| YS3-06C | 20 | 13 | 5000 | 1730(17) | 5200(51) | SH100 | 165 | 19 | 27(2.6) | 13.0 |
| YS3-08C | 21 | 16.2 | 4600 | 2440(22) | 7440(73) | SH125 | 210 | 23 | 25(2.5) | 25.0 |
| YS3-10C | 25 | 18.1 | 4000 | 2850(28) | 10810(103) | SH150 | 254 | 24 | 29(2.8) | 37.0 |
YS3-12C | 30 | 19.5 | 3000 | 3240(30) | 12530(120) | SH150 | 304 | 33 | 36(3.6) | 59 |
-
