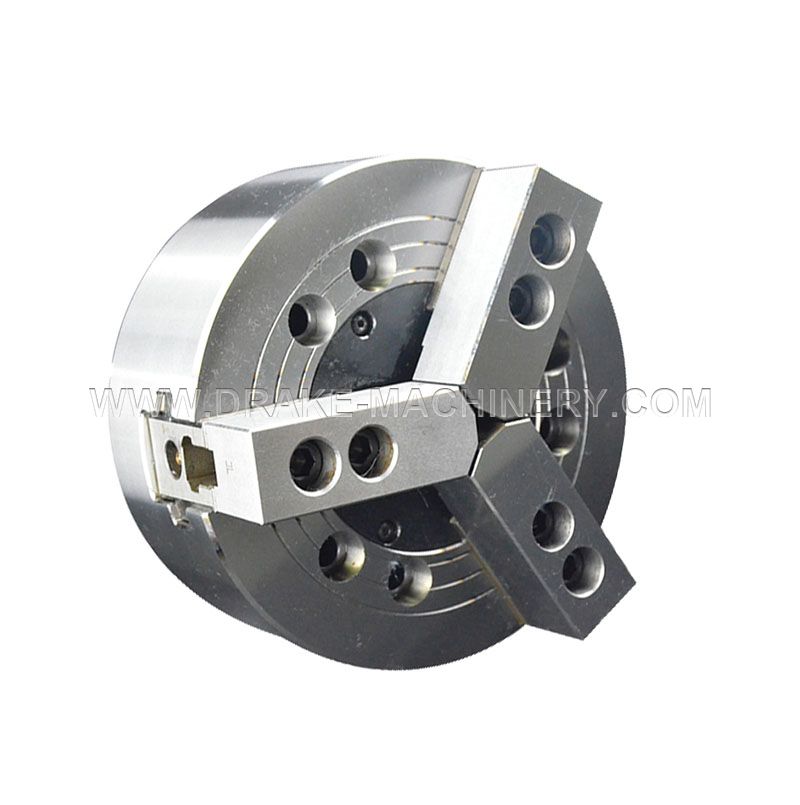

YS3 D jaw solid hydraulic power chuck

Inquire Now Next

Product Details

199 / 5,000Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.

With flange connection, A connection.

翻译结产品特点：采用先进的合金钢材料，表面均经过表面硬化处理，以提高精度和耐用性。带法兰连接，A型连接。

Product Size

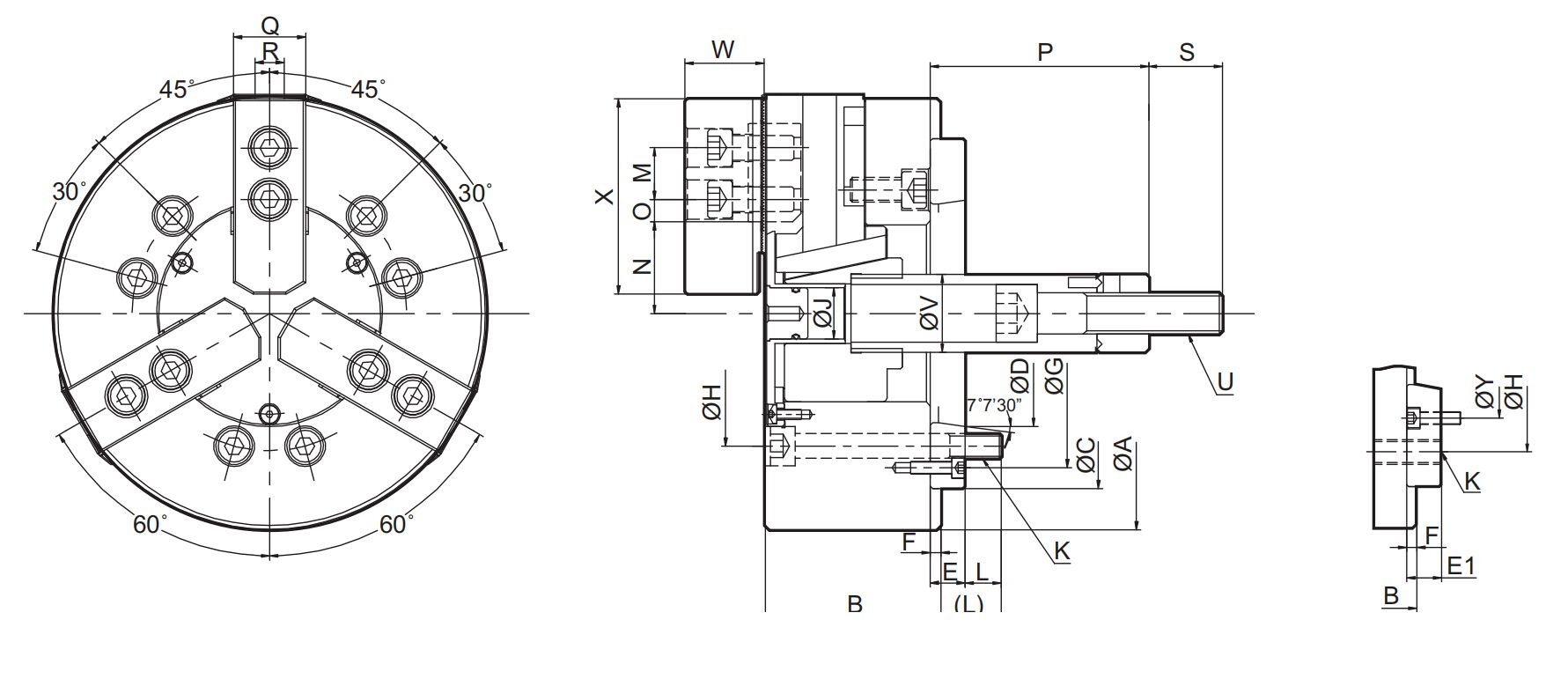

YS3 D jaw solid hydraulic chuck

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

YS3 D-JAW SOLID POWER CHUCKS
It is a crank type three-jaw mega-long stroke chuck, which can be used to do heavy cutting and has strong clamping force.
(The number of claws have two claws, three claws)
DIMENSIONS	A (mm)	B (mm)	C(H6) (mm)	F (mm)	G (mm)	H (mm)	K (mm)	L (mm)	M (mm)	N max (mm)	N min (mm)
TYPE	A (mm)	B (mm)	C(H6) (mm)	F (mm)	G (mm)	H (mm)	K (mm)	L (mm)	M (mm)	N max (mm)	N min (mm)
YS3-06D	165	80	140	5	116	104.8	6-M10	14	20	37.8	33.6
YS3-08D	215	92	170	5	150	133.4	6-M12	18	25	46.3	41.90
YS3-10D	254	115	220	5	190	171.4	6-M16	20	30	51.4	47.00
YS3-12D	304	122	220	6	190	171.4	6-M16	21	30	85.5	58.1

DIMENSIONS	O max. (mm)	O min. (mm)	P max. (mm)	P min. (mm)	Q (mm)	R (mm)	S (mm)	T (mm)	U (mm)	V (mm)	W (mm)	X (mm)
TYPE	O max. (mm)	O min. (mm)	P max. (mm)	P min. (mm)	Q (mm)	R (mm)	S (mm)	T (mm)	U (mm)	V (mm)	W (mm)	X (mm)
YS3-06D	18	7.5	101.5	81.5	31	12.0	36	4	M16×2.0P	34	39	73
YS3-08D	22.5	9	127	106.0	35	14.0	36	5	M20×2.5P	38	42	95
YS3-10D	37.5	10.5	158	133.0	40	16.0	36	5	M20×2.5P	45	46	110
YS3-12D	37.8	9.8	167	137	50	21	36	5	M20×2.5P	50	51	130

DIMENSIONS	Plunger Stroke (mm)	JawStroke (DIA.mm)	Max.Speed (min-1)	Max.Pull Force kgf(KN)	Max.Gripping Force kgf(KN)	Matching Cylinder	Gripping Range(mm)		Max.Pressure kgf/cm2(Mpa)	Weigt(kg)
TYPE	Plunger Stroke (mm)	JawStroke (DIA.mm)	Max.Speed (min-1)	Max.Pull Force kgf(KN)	Max.Gripping Force kgf(KN)	Matching Cylinder	Max	Min	Max.Pressure kgf/cm2(Mpa)	Weigt(kg)
YS3-06D	20	28	5000	1730(17)	5200(51)	SH100	165	19	27(2.6)	13.0
YS3-08D	25	40	4600	2440(22)	7440(73)	SH125	210	23	25(2.5)	25.0
YS3-10D	30	50	4000	2850(28)	10810(103)	SH150	254	14	29(2.8)	37.0
YS3-12D	30	55	3500	3260(30)	13150(128)	SH150	304	33	36(3.6)	63
