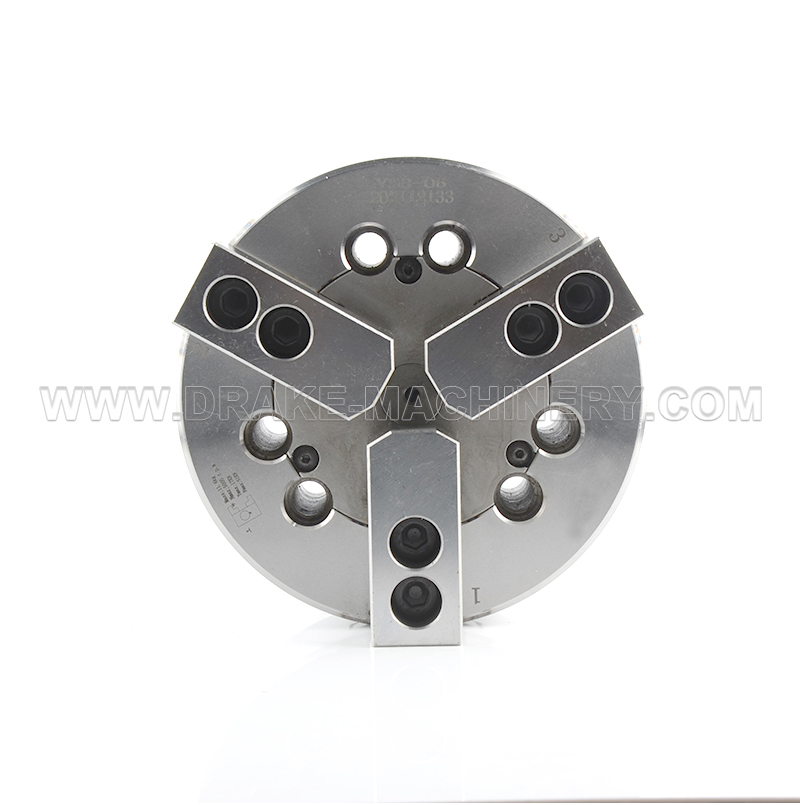

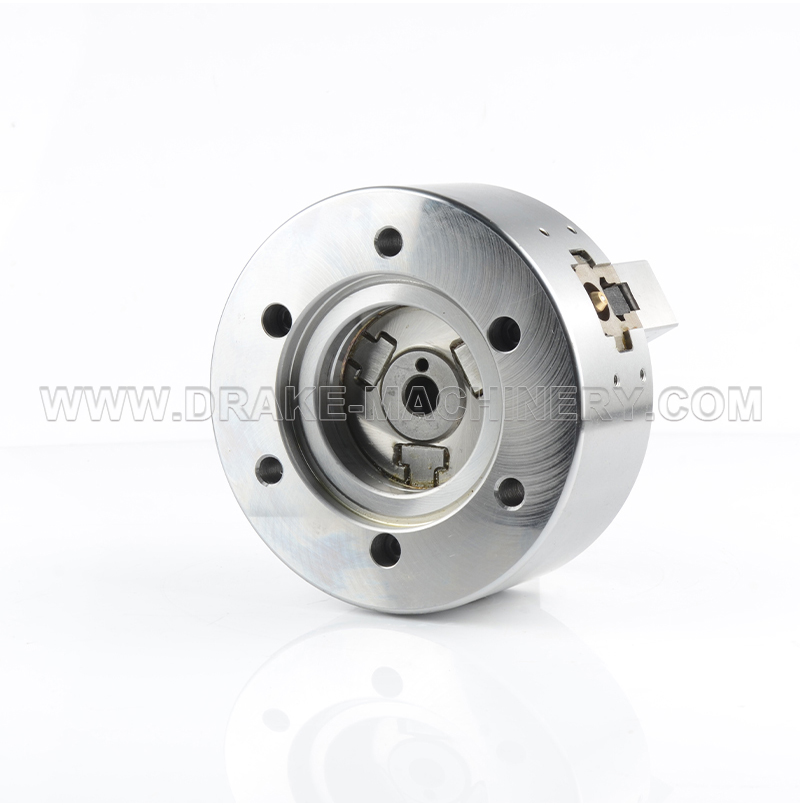

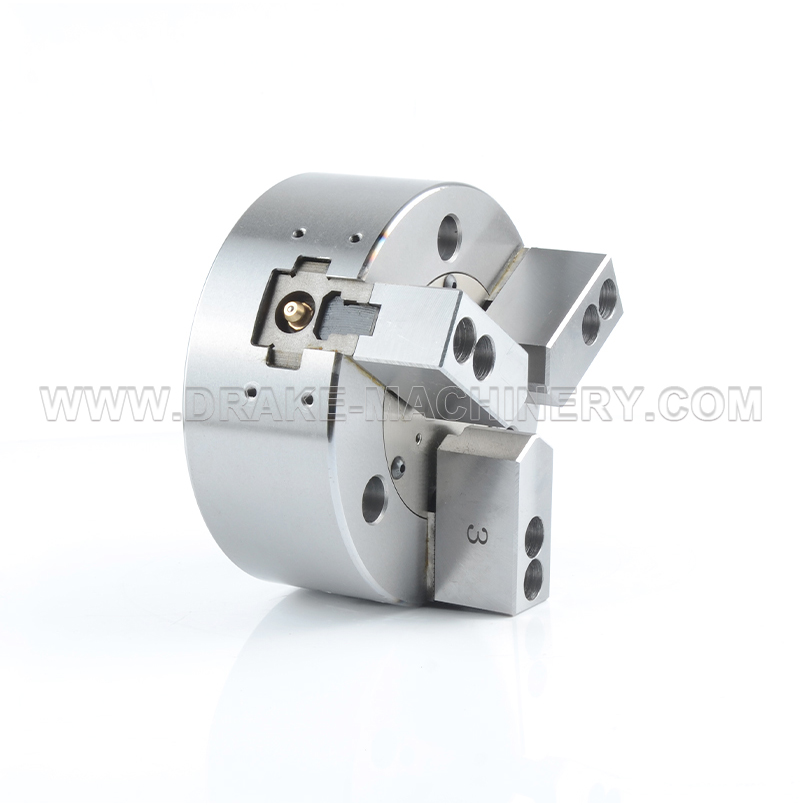

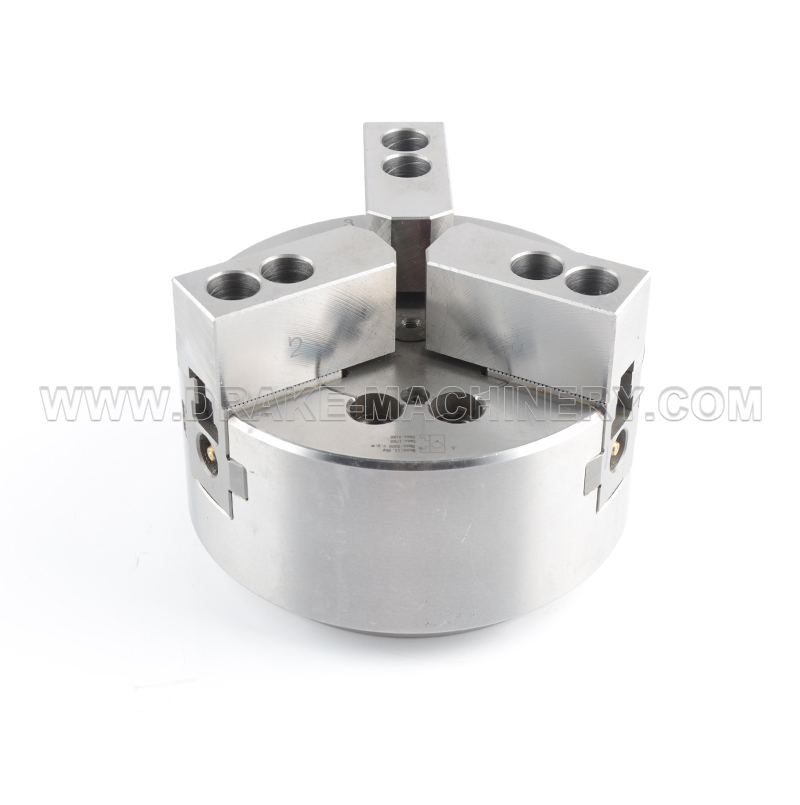

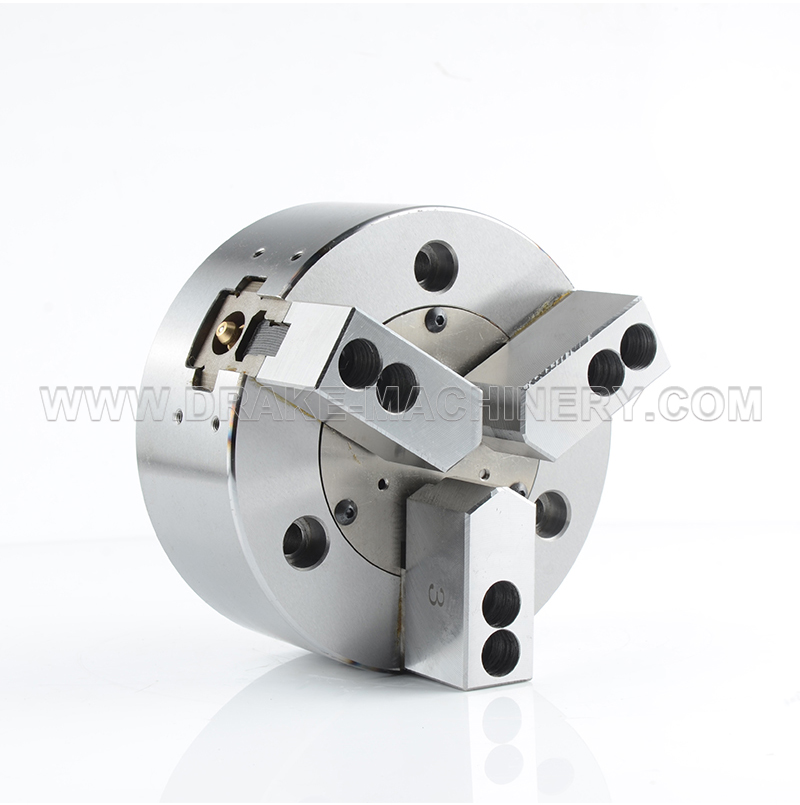

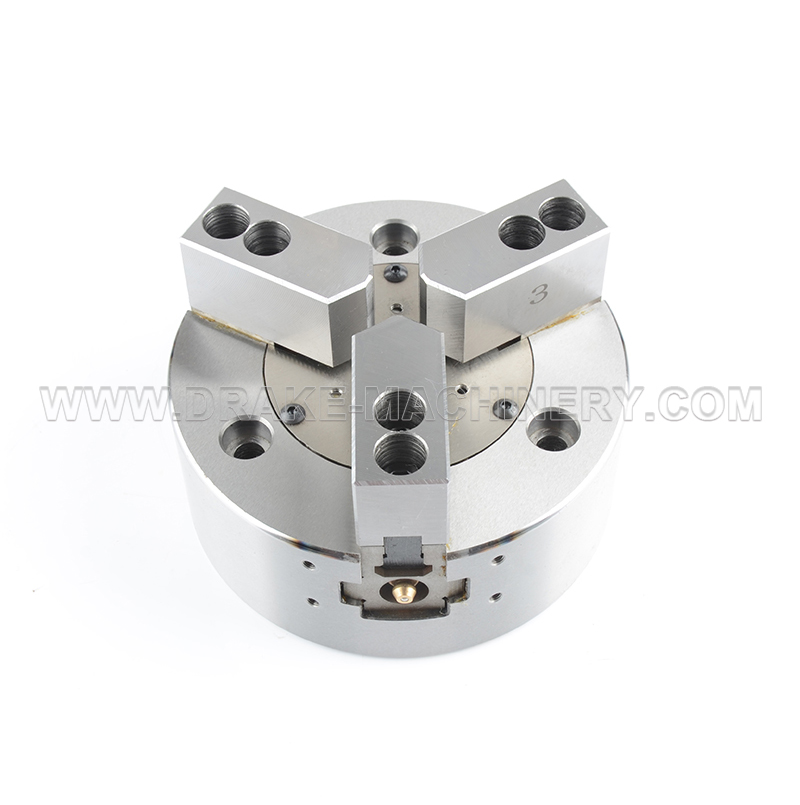

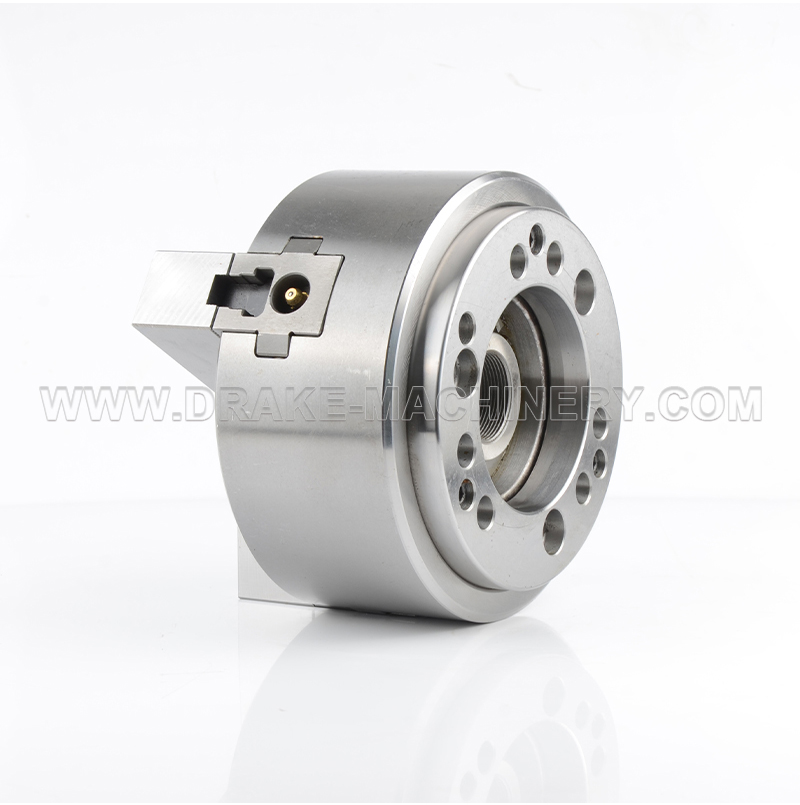

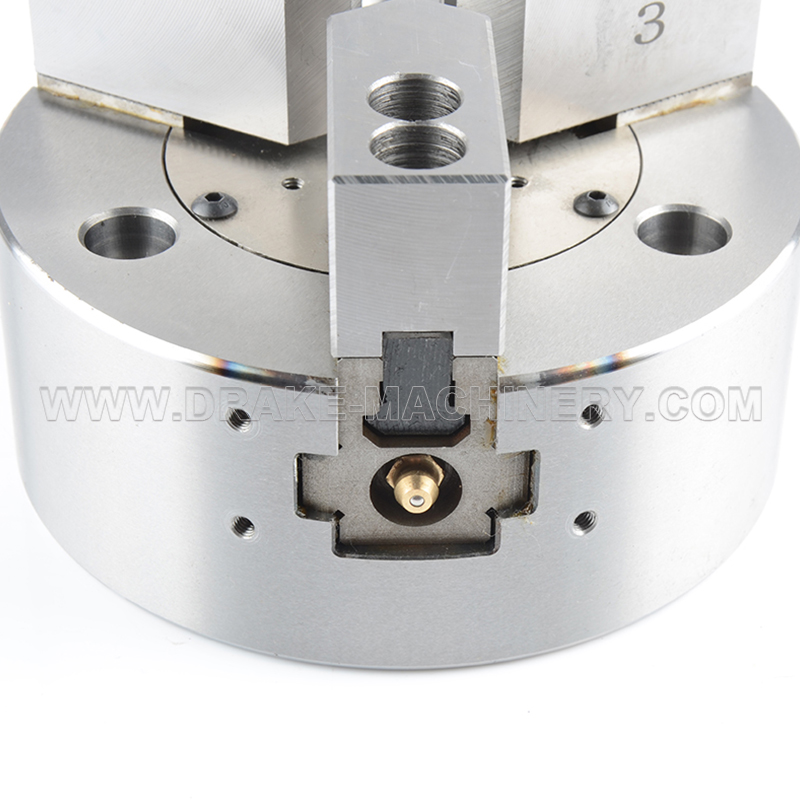

YS3-3 Jaw Solid Hydraulic Power Chuck

Inquire Now Next

Product Details

Elevate your machining precision and efficiency with the YS3 3-Jaw Solid Hydraulic Chuck. Benefit from superior clamping force, increased accuracy, and versatile workpiece compatibility. With its user-friendly operation and durable construction, this hydraulic chuck is a valuable asset for any machining workshop, delivering consistent and high-quality results.

Product Feature:

Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.

With flange connection, A connection.

Product Size

YS3-3 Jaw Solid Hydraulic Chuck

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters
MODEL/SPEC.	Nose Of Spindle	Plunger Stroke (mm)	Jaw Stroke (Diameter)(mm)	Max.Speed (r.p.m)	Max.Pull Force (kgf)	Max.Gripping Force (kgf)	Max.Hydr. Pressure (kgf/cm²)	Net weight (kg)	Matching Cylinder	Gripping Range
YS3-05	A4	15	5.4	5500	800	2450	22	6	SH80	Φ8~Φ135
YS3-06	A5	20	5.4	5000	1730	5200	27	11.4	SH100	Φ18~Φ165
YS3-08	A6(A5)	21	7.4	4600	2440	7440	25	21.9	SH125	Φ26~Φ210
YS3-10	A8(A6)	25	8.8	4000	2850	10810	29	33.4	SH150	Φ26~Φ254
YS3-12	A8(A6)	30	10.5	3200	4080	15500	29	58.5	SH200	Φ26~Φ304
YS3-15	A11	35	16	2800	8260	25290	32.5	100.6	SH200	Φ50~Φ381
YS3-18	A11(A8)	35	16	2500	8260	25290	32.5	134.3	SH200	Φ60~Φ450
YS3-21	A15(A11)	35	16	1900	8360	27800	28	194	SH200	Φ60~Φ500
YS3-24	A15(A11）	35	16	1750	8360	27800	28	246	SH200	Φ150~Φ630
YS3-32	A15	35	16	1750	8360	27800	28	350	SH250	Φ150~Φ800

Size parameter
MODEL/SPEC.	A	B	C (h6)	D	E	E1	F	G	H	J	K	L	M	N max.	N min.	O max.	O min.	P max.	P min.	Q	R	S	U	V	W	X	Y
YS3-05	135	55	80	63.513	-	-	7	-	100	-	3-M8×1.25P	14	14	30.4	27.2	17	7	9	-6	25	10	35	M12×1.75P	28	31	62	-
YS3-06	165	74	140	82.563	15	-	5	116	104.8	21	6-M10×1.5P	14	20	37.8	33.25	18	7.5	101.5	81.5	31	12	36	M16×2P	34	39	73	-
YS3-08	210	85	170	106.375	17	26	5	150	133.4	25	6-M12×1.75P	18	25	46.3	41.9	22.5	9	127	106	35	14	36	M20×2.5P	38	42	95	104.8
YS3-10	254	89	220	139.719	18	28	5	190	171.4	34	6-M16×2P	25	30	51.4	47	37.5	10.5	158	133	40	16	36	M20×2.5P	45	46	110	133.4
YS3-12	304	106	220	139.719	18	-	6	190	171.4	34	6-M16×2P	25	30	60.7	55.45	47	11	163	133	50	18	36	M20×2.5P	50	54	130	-
YS3-15	381	114	300	196.869	22	-	6	260	235	-	6-M20×2.5P	32	43	77.5	69.5	50.25	23.25	104	69	62	25.5	55	M30×3.5P	60	63	165	-
YS3-18	450	114	300	196.869	22	-	6	260	235	-	6-M20×2.5P	32	43	108	110	49.5	25.5	92	57	62	25.5	55	M30×3.5P	60	63	165	-
YS3-21	530	131	-	285.78	32	-	6	-	330	60	6-M24	31	60	86	78	93.5	27.5	97	62	65	25	55	M30×3.5P	60	70	180	-
YS3-24	610	131	-	285.78	32	-	6	-	330	60	6-M24	31	60	125	117	93.5	27.5	97	62	65	25	55	M30×3.5P	60	70	180	-
YS3-32	800	135	-	285.78	32	-	6	-	330	70	6-M24	31	60	99.4	89.4	212.5	32.5	35	-3	65	25	73	M30×3.5P	102	82	185	-
