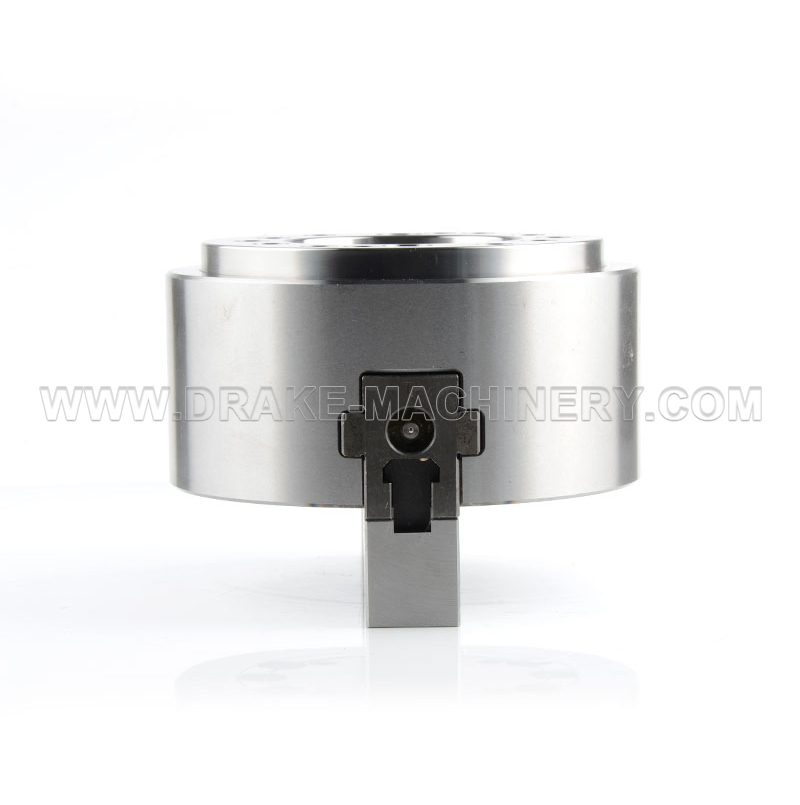

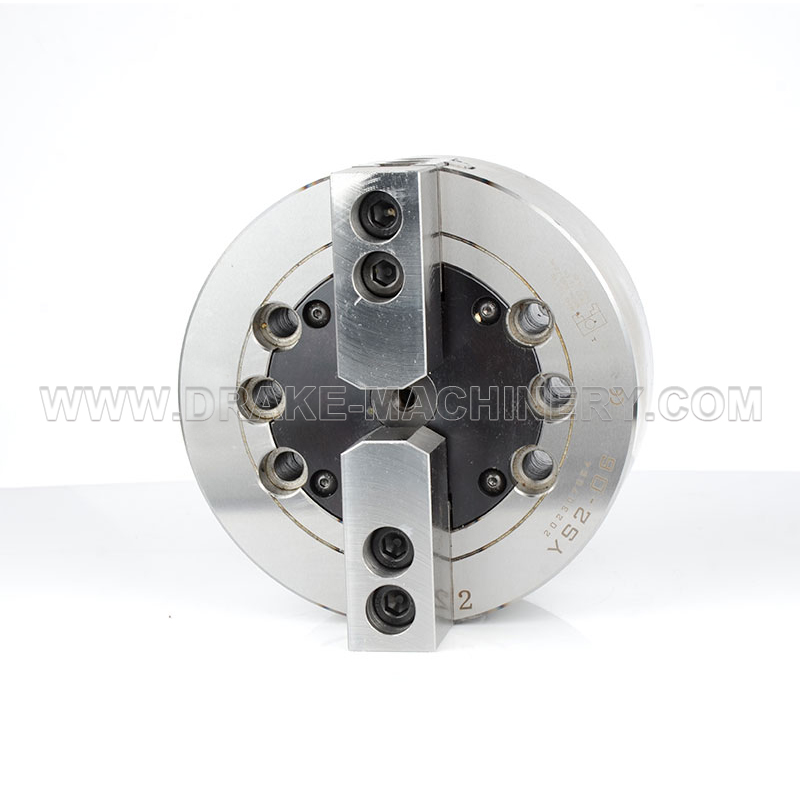

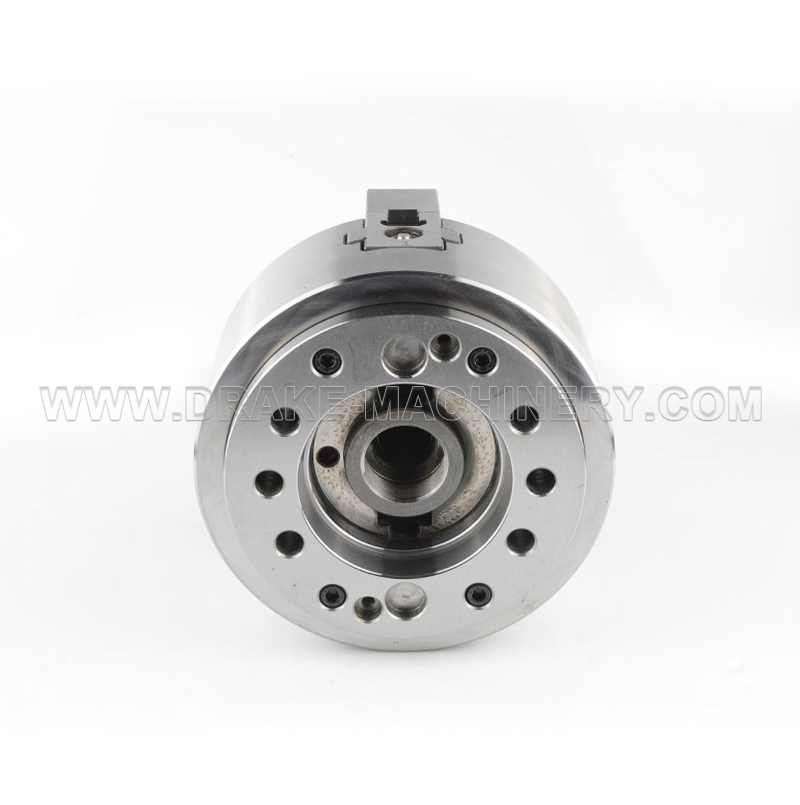

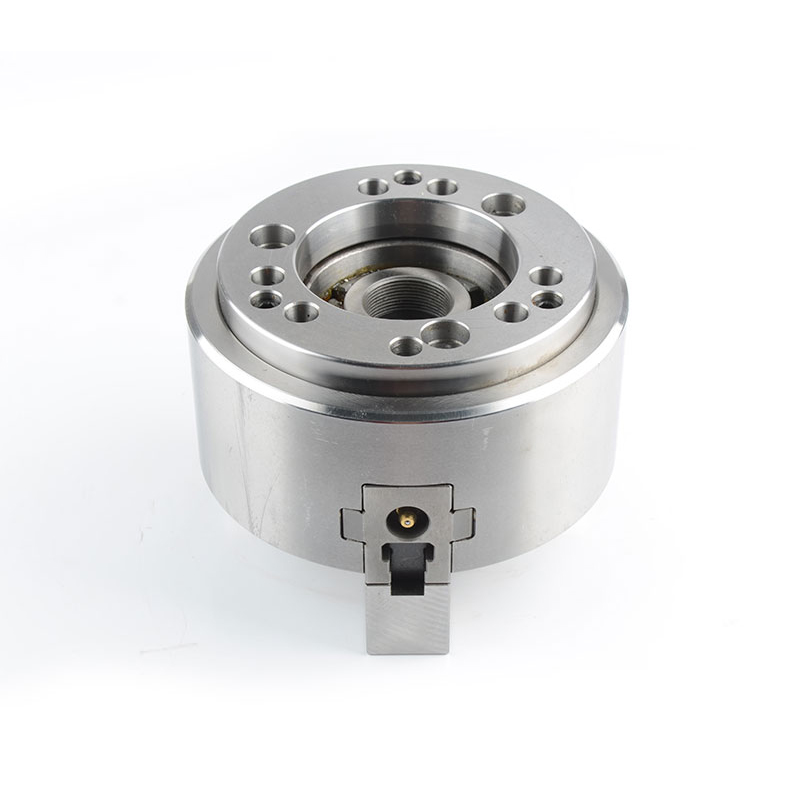

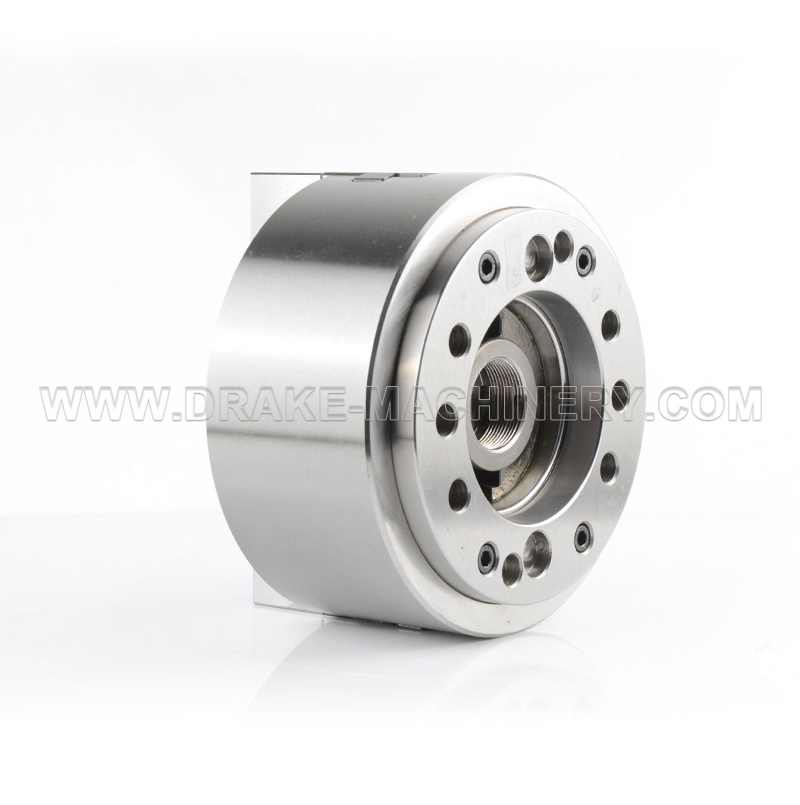

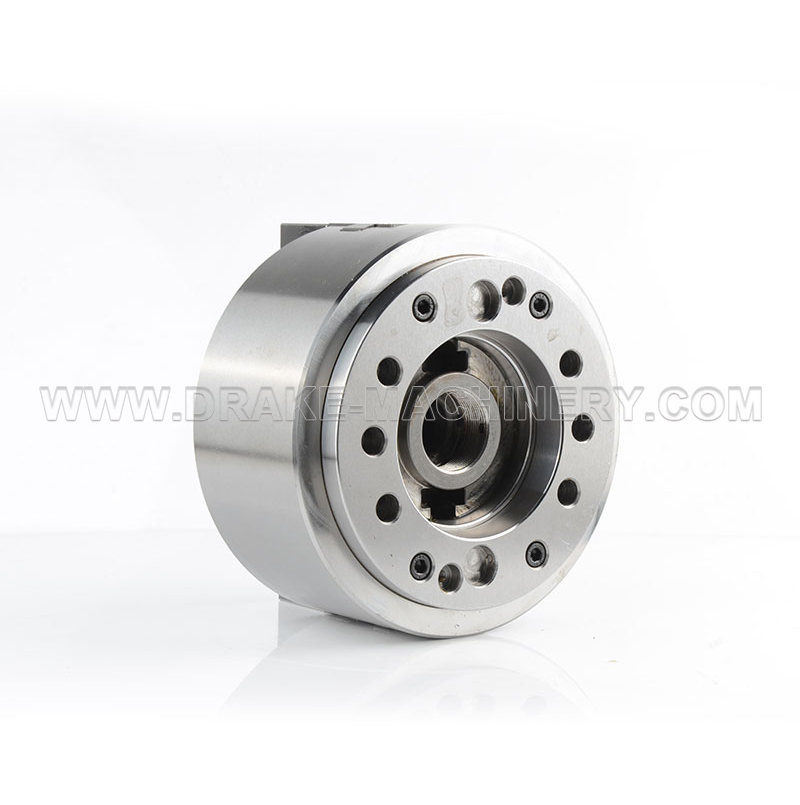

Product Details
Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
With flange connection, A connection.
The working principle of the new hydraulic chuck
For precision machining, a hydraulic chuck for lathe is essential. Many operators prefer the 2 jaw chuck or two jaw chuck configurations for their reliability. The power chuck offers enhanced clamping strength, making it a popular choice among professionals. Both the 2 jaw lathe chuck and two jaw lathe chuck variants are widely used in various applications. Additionally, the 2 jaw power chuck combines the benefits of power operation with the simplicity of a two-jaw design, ensuring efficient performance in lathe operations.
Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.
Product Size
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | ||||||||||
| MODEL/SPEC. | Nose Of Spindle | Plunger Stroke (mm) | Jaw Stroke (Diameter)(mm) | Max.Speed (r.p.m) | Max.Pull Force (kgf) | Max.Gripping Force (kgf) | Max.Hydr.Pressure (kgf/cm²) | Net weight (kg) | Matching Cylinder | Gripping Range |
| YS2-04 | - | 15 | 6.9 | 6000 | 540 | 1500 | 19 | 4.1 | SH65 | Φ5~Φ110 |
| YS2-05 | A4 | 15 | 6.4 | 5500 | 800 | 2450 | 22 | 5.4 | SH80 | Φ8~Φ135 |
| YS2-06 | A5 | 20 | 8.5 | 5000 | 1220 | 3460 | 17.3 | 11.1 | SH100 | Φ18~Φ165 |
| YS2-08 | A6(A5) | 21 | 8.8 | 4000 | 1630 | 4990 | 16.3 | 21.3 | SH125 | Φ26~Φ210 |
| YS2-10 | A8(A6) | 25 | 8.8 | 3500 | 1930 | 7140 | 19 | 32.6 | SH125 | Φ26~Φ254 |
| YS2-12 | A8 | 30 | 10.5 | 3000 | 2750 | 10300 | 18.4 | 57 | SH150 | Φ26~Φ304 |

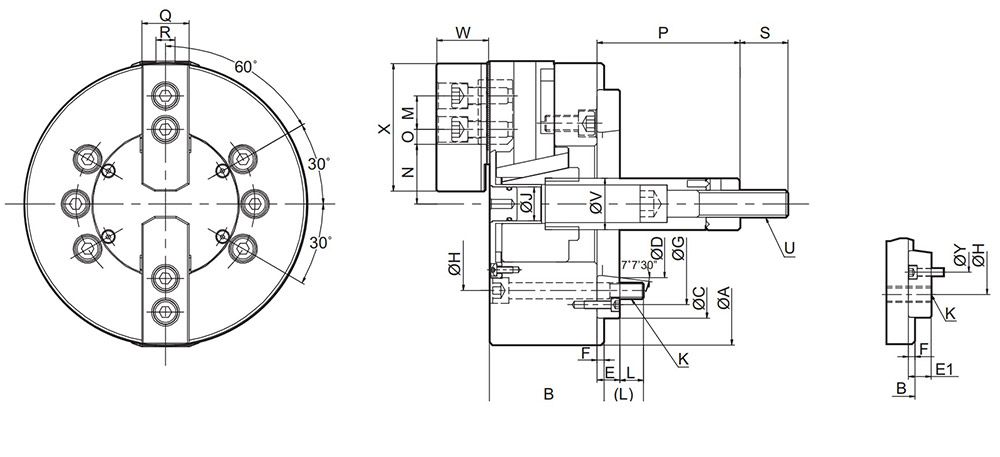

| Size parameter | |||||||||||||||||||||||||||
MODEL /SPEC. | A | B | C (h6) | D | E | E1 | F | G | H | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | U | V | W | X | Y |
| YS2-04 | 110 | 52 | 60 | - | - | - | 6 | - | 80 | - | - | 12 | 14 | - | - | 11.3 | 8.3 | 18 | 3 | 25 | 10 | 25 | M10X1.5P | 26 | 25 | 52 | - |
| YS2-05 | 135 | 55 | 80 | 63.513 | - | - | 7 | - | 100 | - | 3-M10X1.5P | 14 | 14 | 30.4 | 27.2 | 17 | 7 | 9 | -6 | 25 | 10 | 35 | M12X1.75P | 28 | 31 | 62 | - |
| YS2-06 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | 21 | 6-M10X1.5P | 14 | 20 | 37.8 | 33.25 | 18 | 7.5 | 107.5 | 87.5 | 31 | 12 | 36 | M16X2P | 34 | 36 | 73 | - |
| YS2-08 | 210 | 85 | 170 | 106.375 | 17 | 25 | 5 | 150 | 133.4 | 25 | 6-M12X1.75P | 20 | 25 | 46.3 | 41.9 | 22.5 | 9 | 127 | 106 | 35 | 14 | 36 | M20X2.5P | 38 | 42 | 95 | 104.8 |
| YS2-10 | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16X2P | 20 | 30 | 51.4 | 47 | 37.5 | 10.5 | 158 | 133 | 40 | 16 | 36 | M20X2.5P | 45 | 44 | 110 | 133.4 |
| YS2-12 | 304 | 106 | 220 | 139.719 | 18 | - | 5 | 190 | 171.4 | 34 | 6-M16X2P | 20 | 30 | 60.7 | 55.45 | 47 | 11 | 163 | 133 | 50 | 18 | 36 | M20X2.5P | 50 | 54 | 130 | - |
-
