Product Details
Feature:
1.Patented product, vertical strip shape.
2.Built-in cylinder structure, convenient for installation.
3.This chuck is applicable for machining center, driller and miller.
4.Two-claw and four-claw are available.
Product Size
Product Parameters

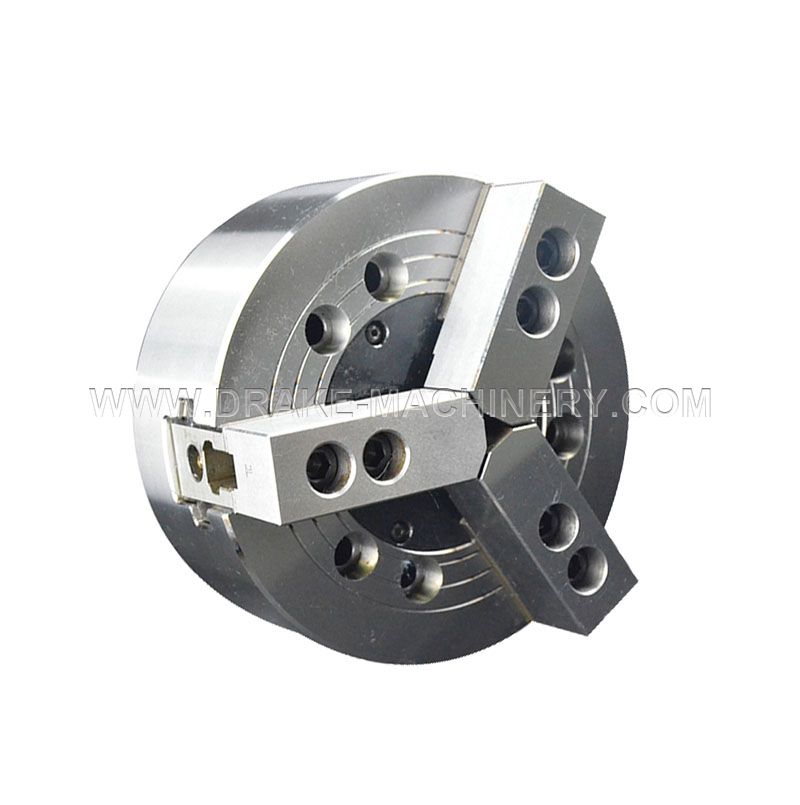

3-JAW CHUCK HOLLOW LARGE STROKE
1.Crank-type three-claw super-large car through hole, super-long claw stroke.
2.The sliding surfaces are hardened and precision ground and directly lubricated.
3.The installation and connection method is the same as that of the hollow collet, and it can be exchanged with it without changing the tie rod.
4.High rigidity structure and high clamping accuracy.
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| DIMENSIONS | wedge strok e（mm) | Jaw stroke (diameter)（mm） | maximum allowable thrust（kgf） | maximum clamping force（kgf) | maximum oil pressure（kgf） | maximum speed （r.p.m) | weight （kg) | Inertia（kg.m2) | Compatible cylinder | Outer diameter clamping range（mm) |
| YK3-05D | 12 | 18 | 1590 | 1750 | 23 | 4200 | 7.2 | 0.063 | TK1036 | Φ10-Φ138 |
| YK3-06D | 13 | 26 | 2400 | 2650 | 27 | 3600 | 14.8 | 0.063 | 1246 | ø10-ø168 |
| YK3-08D | 16 | 28 | 3500 | 4150 | 26 | 3000 | 24.1 | 0.175 | 1552 | ø10-ø210 |
| YK3-10D | 22 | 32 | 4870 | 5700 | 27 | 2400 | 43.5 | 0.347 | 1075 | ø18-ø254 |

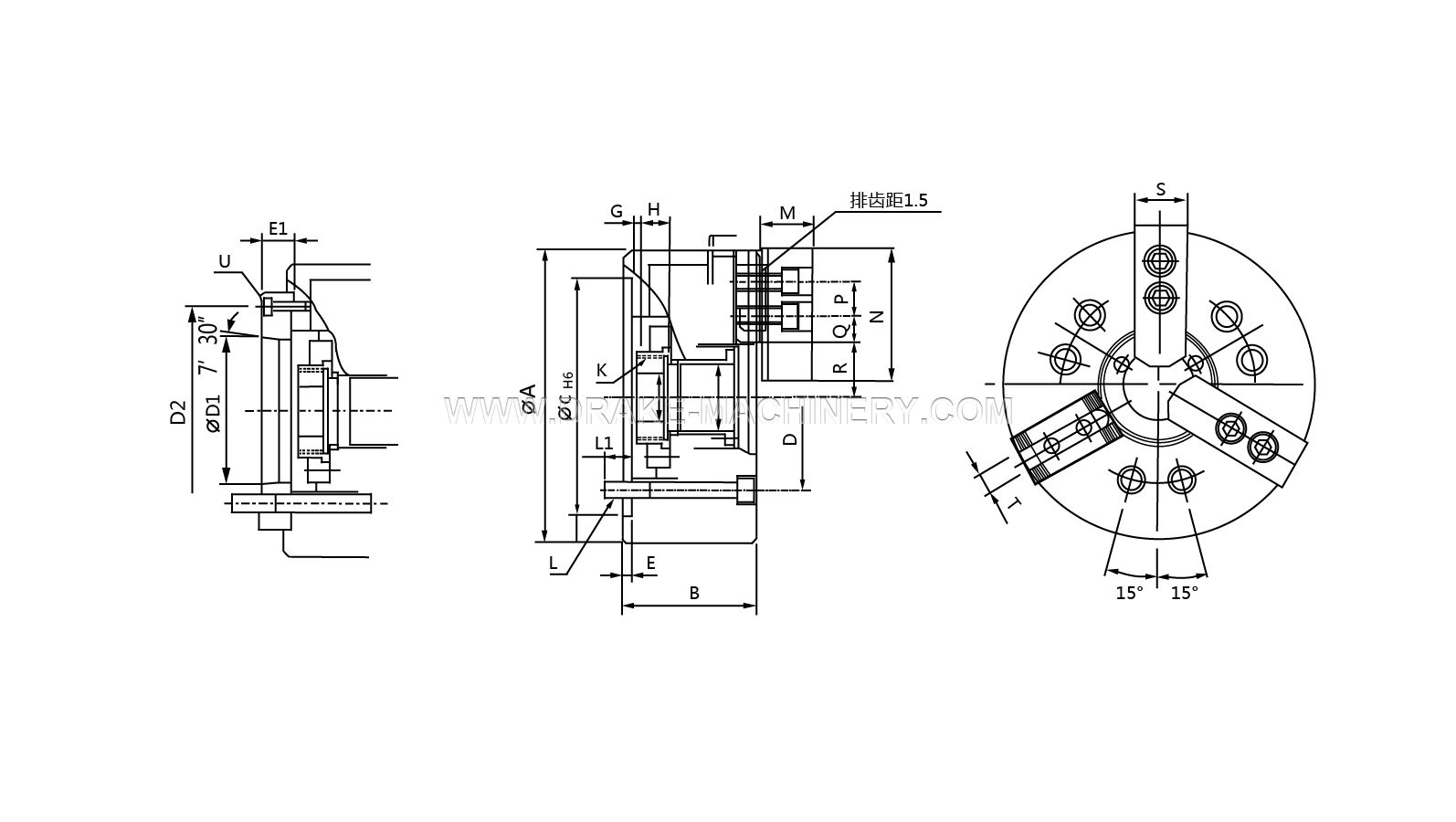

| DIMENSIONS | A | B | C(H6) | D | D1 | D2 | E | E1 | F | Gmax | Gmin | H | J |
YK3-05D | 138 | 65 | 110 | 82.6 | 63.51 | 96 | 4 | 15 | 33 | 2 | -10 | 20 | 12 |
| YK3-06D | 168 | 90 | 140 | 104.78 | 82.563 | 116 | 5 | 18 | 45 | 6.5 | -8.5 | 19 | 45 |
| YK3-08D | 210 | 100 | 170 | 133.35 | 106.375 | 150 | 5 | 23 | 52 | 7 | -13 | 20 | 52 |
| YK3-10D | 254 | 110 | 220 | 171.45 | 139.719 | 190 | 5 | 18 | 75 | 8 | -17 | 25 | 75 |
| DIMENSIONS | Kmax | L | L1 | M | N | P | Qmax | Qmin | Rmax | Rmin | S | T | U |
YK3-05D | M40×1.5 | 3-M10 | 15 | 31 | 54 | 14 | 17.5 | 7.25 | 38.92 | 30.08 | 25 | 10 | 3-M6 |
| YK3-06D | M55*2 | 6-M10 | 15 | 37 | 73 | 20 | 25.75 | 13.75 | 39 | 27.0 | 31 | 12 | 3-M6 |
| YK3-08D | M60*2 | 6-M12 | 18 | 38 | 95 | 25 | 28.25 | 16.25 | 49.25 | 33.25 | 35 | 14 | 3-M6 |
| YK3-10D | M85*2 | 6-M16 | 22 | 43 | 110 | 30 | 35.25 | 17.25 | 64.25 | 45.25 | 35 | 14 | 3-M8 |
-
