Product Details
1. Suitable for use on drilling machines, milling machines and machining centers.
2. Simple installation: a single installation only needs to be equipped with T-shaped screws.
3. Group installation: Install several chucks on the fixed plate to quickly change the mold.
4. Soft jaws and hard jaws can be replaced, saving costs.

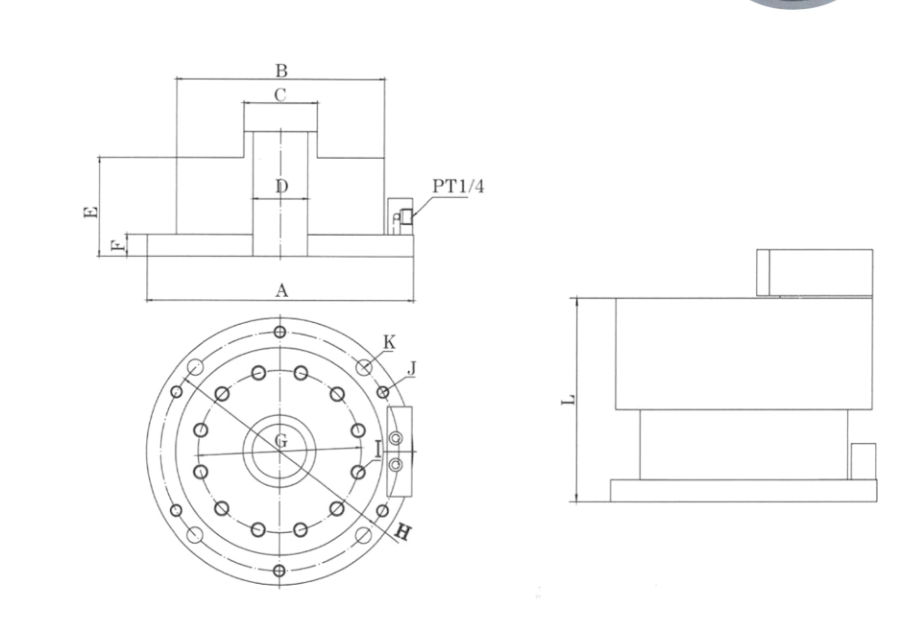

Product Size
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Size parameter | ||||||||||||
| MODEL/SPEC. | A | B | C | D | E | F | G | H | I | J | K | L |
| YK-04''LD | 125 | 85 | M32x1.5 | 21 | 70 | 15 | 70.6 | 105 | M10 | 9 | 125 | |
| YK-05''LD | 155 | 110 | M40x1.5 | 29 | 68 | 15 | 82.56 | 135 | M10 | 11 | 124 | |
| YK-06''LD | 188 | 140 | M55x2 | 45 | 72 | 15 | 104.8 | 165 | M10 | M10 | 11 | 148 |
| YK-08''LD | 218 | 170 | M60x2 | 45 | 81 | 18 | 133.4 | 195 | M12 | M12 | 13 | 167 |
| YK-10''LD | 276 | 220 | M85x2 | 70 | 107 | 20 | 171.4 | 250 | M16 | M16 | 17 | 202 |
-
