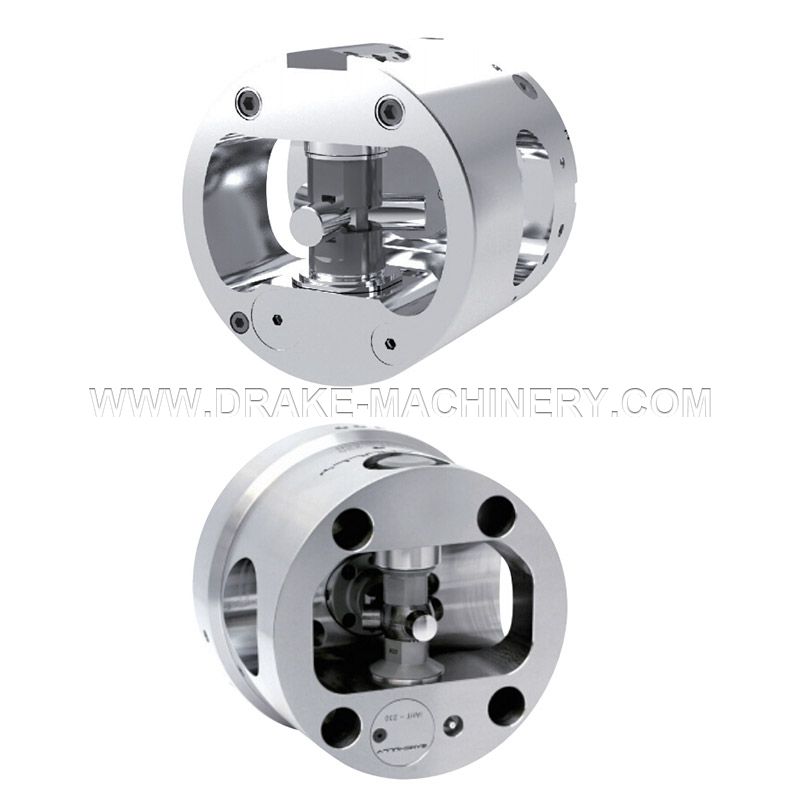

YFD Full Automatic Index Power Chuck

Inquire Now Next

Product Details

Note

● Only in the maximum pressure, the highest speed can be achieved when using the jaw of no more than the weight shown in the table above.

● The processed workpieces and two jaws must be well balanced rotating the axis. If do not meet this condition, or jaw is overweight, the speed must be reduced.

● The workpiece can index when the shaft is rotating. When the workpiece at high speed, to avoid vibration as a result of workpiece’ weight unbalance in the middle position, the speed is proposed to reduce 30-50%.

Product Size

YFD Full Automatic Index Chuck

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance Parameters
Can achieve indexing angle of 490°,845°,3120°.660°and special angle
MODEL/SPEC.	The maximum axial loading window G(mm)	Jaw stroke U(mm)	Piston area (cm²)	Maximum pressure (bar)	Maximum speed (r.p.m)	Rotating moment (kg.m²)	Clamping jaw weight (kg)	Body weight (kg)
YFD-168''	125	9	13	25	3000	0.12	0.5	18
YFD-210''	175	15	30	35	3000	0.16	0.6	24
YFD-235''	197	15	30	35	2800	0.27	0.6	32
YFD-250''	216	17	43	35	2500	0.47	1.3	42
YFD-280''	239	17	43	35	2200	0.88	1.3	52
YFD-315''	261	23	63.6	35	2000	1.45	2	80
YFD-360''	301	23	63.6	35	1700	2.05	2	95
YFD-400''	333	30	86.6	35	1200	3.4	4	128
YFD-460''	395	30	86.6	35	1000	6.4	5	170
YFD-570''	466	40	113	35	800	12	6	285
YFD-680''	576	40	113	35	600	29	7	490

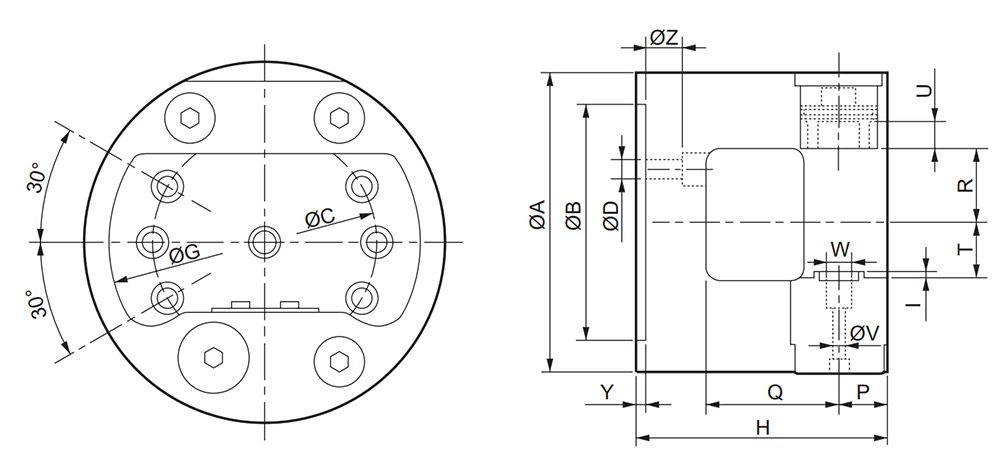

Size Parameter
MODEL/SPEC.	A	B	C	D	G	H	I	P	Q	R	T	V	W	Y	Z
YFD-168''	172	140	104.8	11	125	152	2	30	46	33	33	M8	18	5	30
YFD-210''	215	170	133.4	13	175	180	3	35	95	48	36	M8	20	6	28
YFD-235''	235	170	133.4	13	197	190	3	35	102	53	40	M8	25	8	28
YFD-250''	254	220	171.4	17	216	210	3	44	112	56	46	M8	25	10	32
YFD-280''	275	220	171.4	17	239	218	3	44	125	70	58	M8	25	12	32
YFD-315''	315	220	171.4	17	261	235	3	50	136	77	63	M10	25	12	29
YFD-360''	360	220	171.4	17	301	260	3	50	150	100	86	M10	25	12	29
YFD-400''	400	300	235	21	333	291	3	58	170	110	91	M10	25	12	24
YFD-460''	460	300	235	21	395	321	3	58	200	140	121	M10	25	12	24
YFD-570''	570	380	330.2	27	466	435	5	85	270	180	150	M10	50	18	50
YFD-680''	680	380	330.2	27	576	485	5	85	320	235	205	M10	50	18	50
