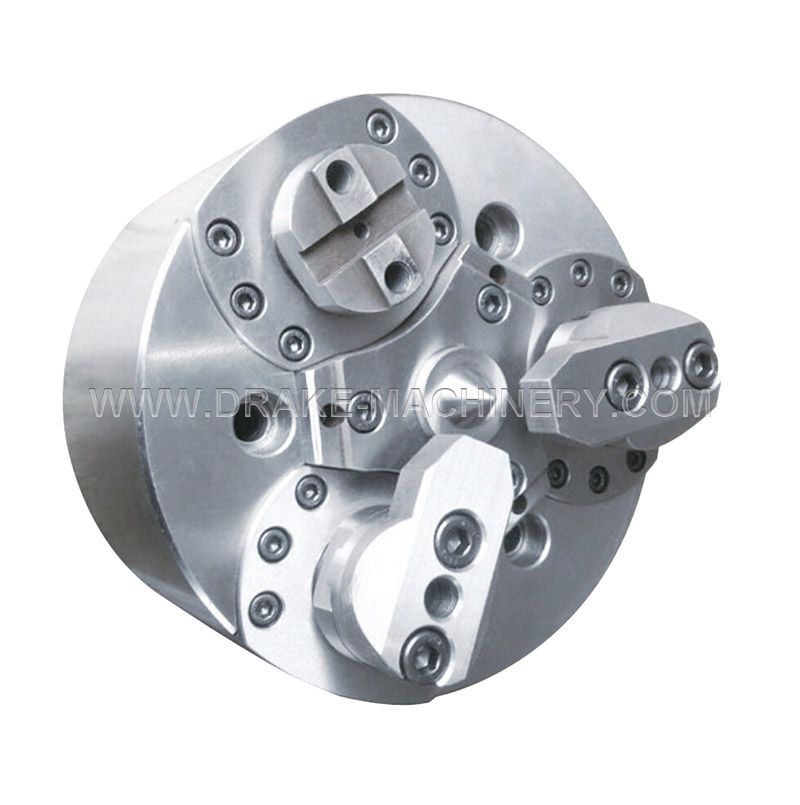

YF Floating Claw Hydraulic Dynamic Power Chuck

Inquire Now Next

Product Details

Technical features:

Back pull action (ensure axial length).

Key slot type basic claw (powerful and steady).

Compensation clamp (the clamping jaw is with multi-directional swing function).

Centrifugal force compensation (overcome high-speed rotation).

Applications:

Used for tow top ways for machining axis parts.

Clamping is convenient, replying on orientation of center hole for rapid clamping.

The workpiece can be aligned by reference diameter of fixed top, and clamping jaw only provides driving torque and pulls back to a fixed reference point.

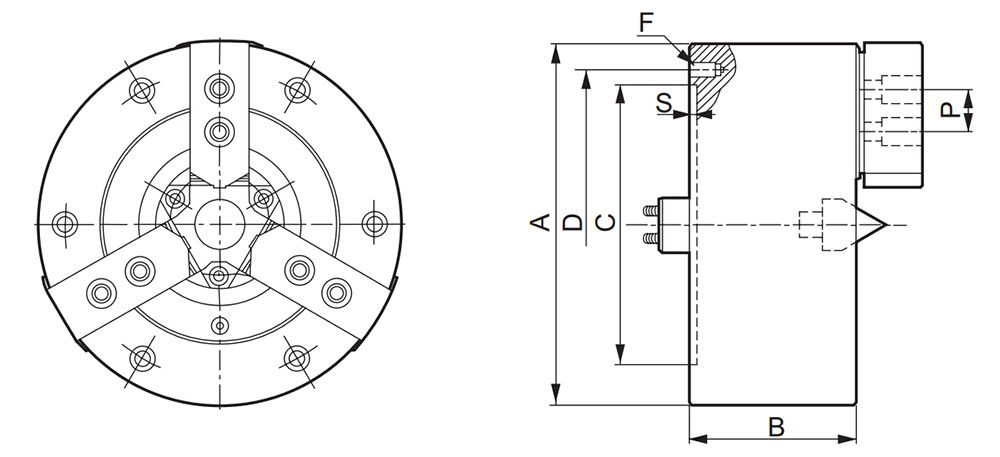

Product Size

YF Floating Claw Dynamic Chuck

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters
MODEL/SPEC.	Angular travel of clamping jaw U(deg)	Radial travel of clamping jaw-height h(mm)	Back pull travel V(mm)	Axial travel of piston (mm)	Compensation amount(diameter) height h(mm)	Max. clamp force (kN)	Maximum speed (r.p.m)	Eeight (kg)
YF3-06''	5°	5	0.1(0.5)	16	±1	40	4500	15.8
YF3-08''	5°	5	0.1(0.5)	16	±1.5	60	4000	26
YF3-10''	4°	7	0.1(0.5)	18	±2	95	3500	39.5
YF3-12''	4°	7	0.1(0.5)	18	±2.5	98	2800	68

Size parameter
MODEL/SPEC.	A	Bf	Ba	C	E	F	W	Hf	Yf	h reference height	f	V	Ha
YF3-06''	175	140	82.563	104.8	38	M28*105	25	85	5	50	27	0.1(0.5)	102
YF3-08''	212	170	106.375	133.4	38	M32*1.5	25	105	5	55	33	0.1(0.5)	105
YF3-10''	250	220	139.719	171.4	48	M38*1.5	25	108	5	70	33	0.1(0.5)	110
YF3-12''	315	220	139.719	171.4	48	M38*1.5	25	108	5	70	33	0.1(0.5)	115
