QK3-L Vertical Through Hole Pneumatic Power Chuck

Inquire Now Next

Product Details

Product Feature:

Patent product, vertical type with baseboard.

Built -in cylinder structure, convenient for installation.

This chuck is applicable for machining center, driller and miller.

Two-claw and four-claw are available.

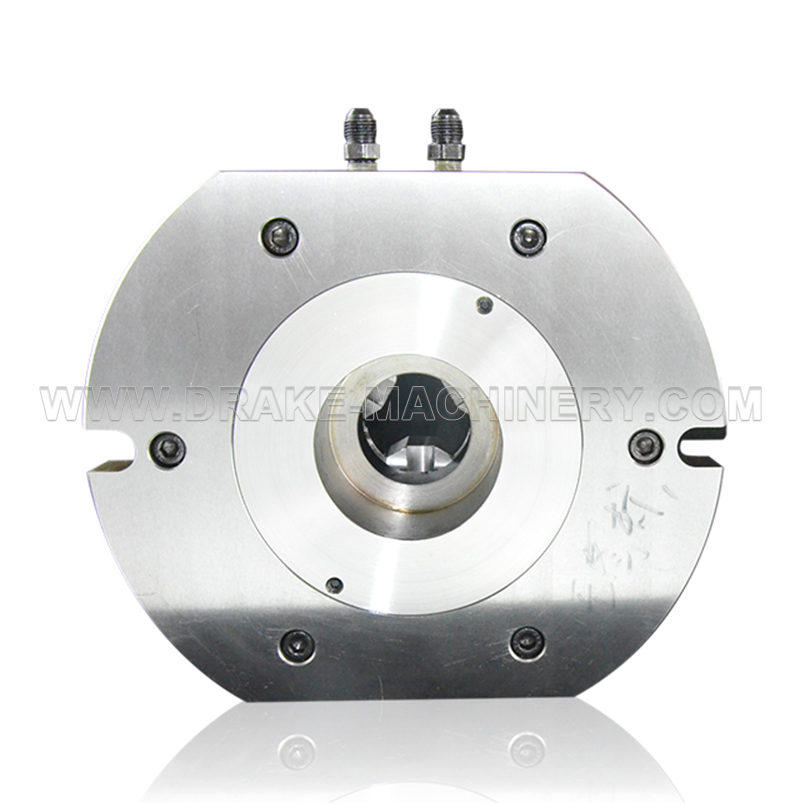

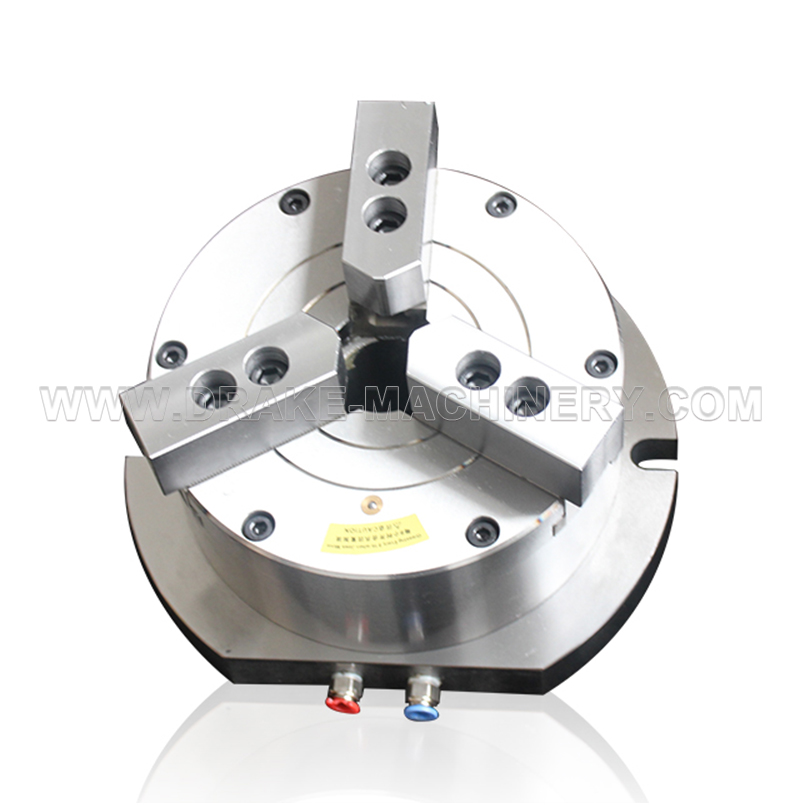

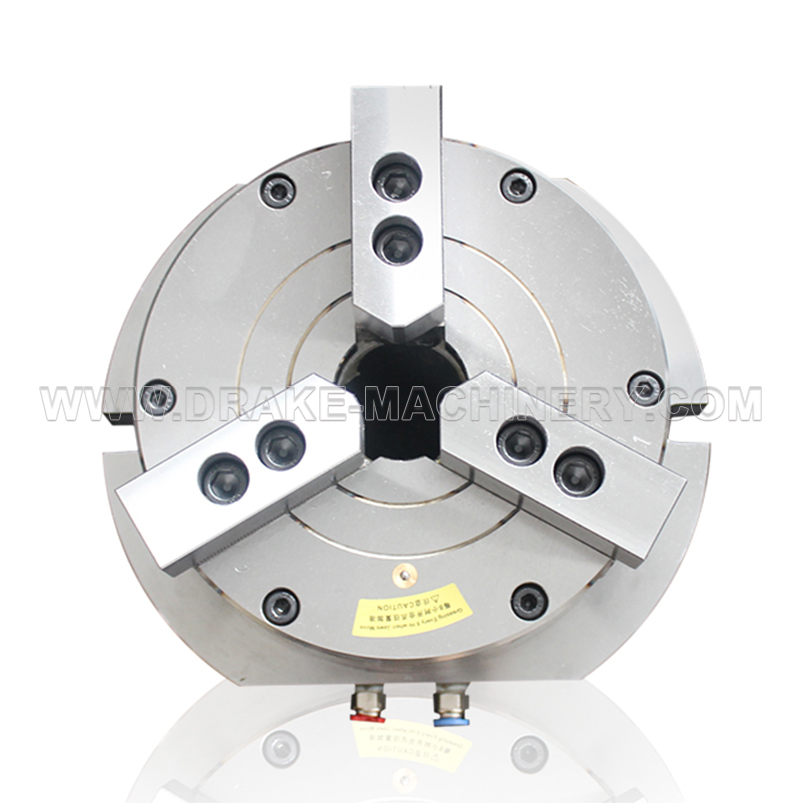

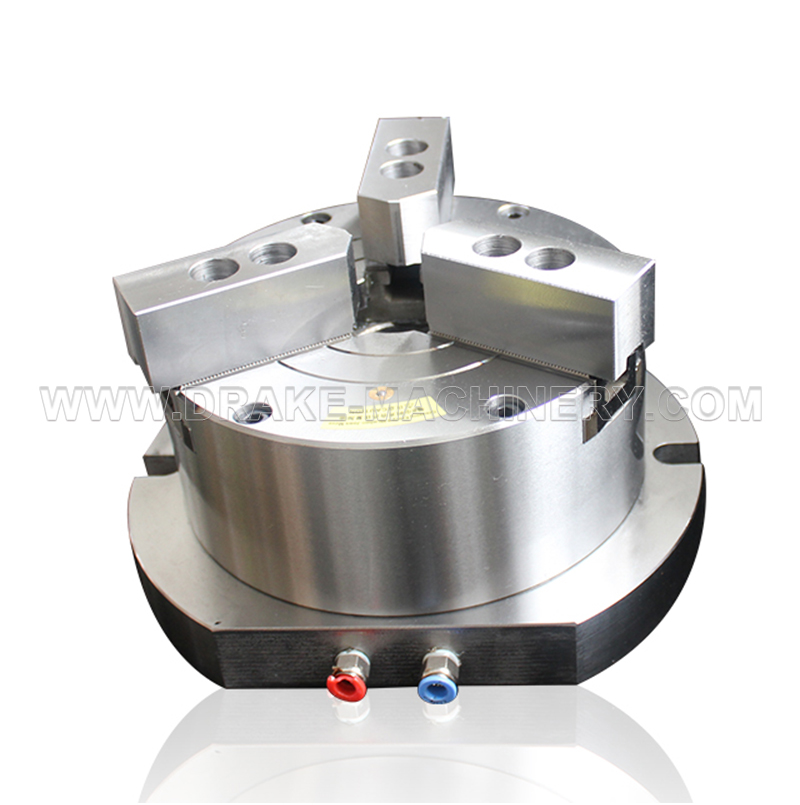

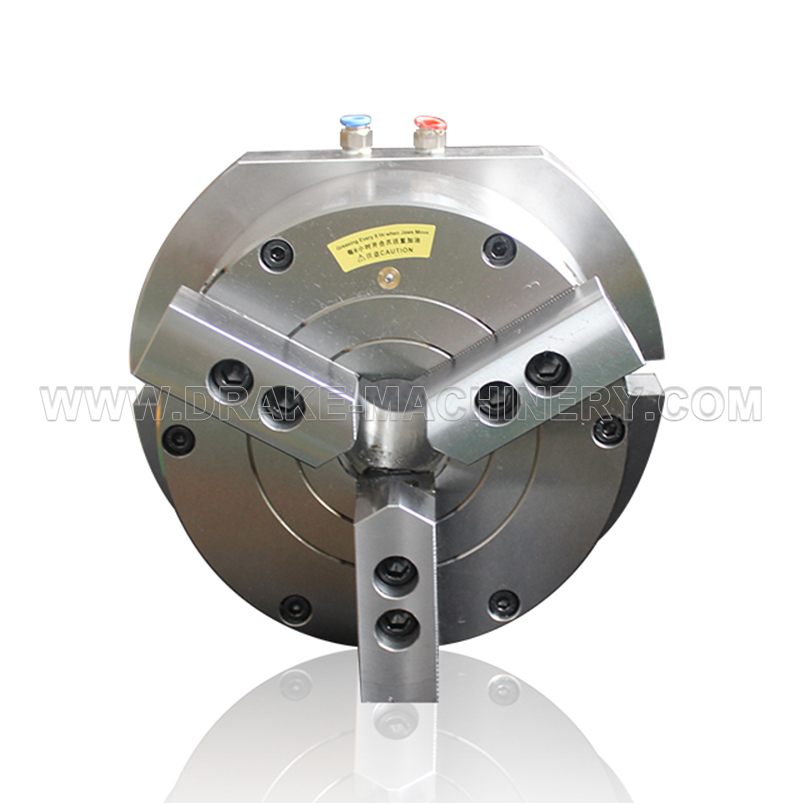

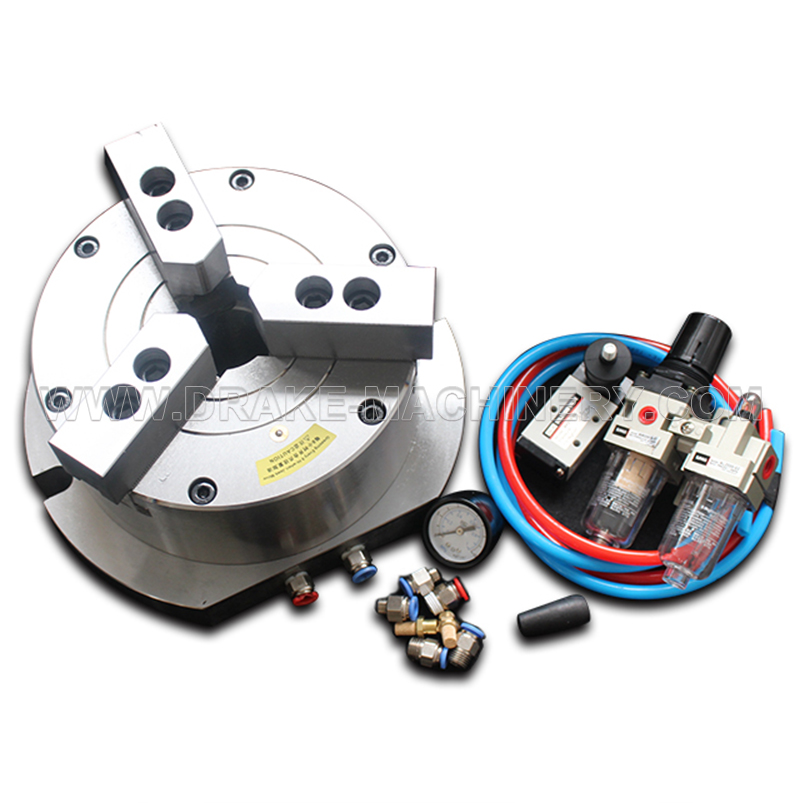

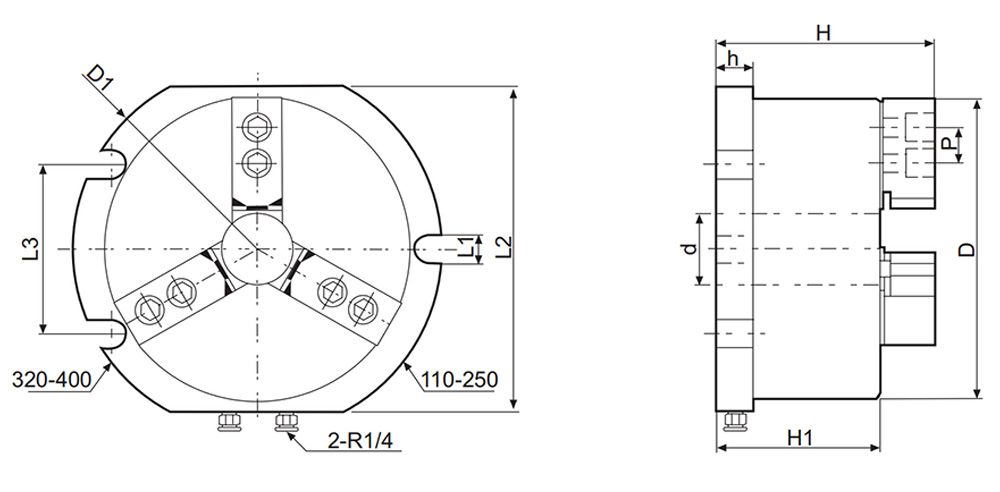

Product Size

QK3-L Vertical Through Hole Pneumatic Chuck

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters
Model/Spec.	Jaw stroke (diameter)(mm)	Maximun static clamping force (Kgf)	Maximum static holding force (Kgf)	Permissible pressure (Mpa)	Clamping range	Holding range	Net weight (Kg)
QK3-04"L	3.2	1830	1120	0.4-0.8	3-115	15-120	8
QK3-05"L	3.7	1630	1020	0.4-0.8	5-130	15-140	11
QK3-06"L	4.2	3060	2240	0.4-0.8	5-170	20-180	18
QK3-08''L	5	4890	3670	0.4-0.8	10-210	25-230	28
QK3-10''L	6.5	6830	5100	0.4-0.8	20-250	30-260	40
QK3-12''L	8.5	10910	8160	0.4-0.8	30-320	40-340	75
QK3-15"L	12	15300	11730	0.4-0.8	40-400	60-420	120

Size parameters
Model/Spec.	D	D1	d	L1	L2	L3	H	H1	h	p
QK3-04"L	115	160	/	2/15	120	/	116	92	20	14
QK3-05"L	135	175	20	2/15	140	/	120	97	26	14
QK3-06"L	180	218	35	2/17	180	/	142	109	26	20
QK3-08''L	208	265	40	2/17	220	/	155	115	26	25
QK3-10''L	252	310	60	2/20	260	/	157	115	26	30
QK3-12''L	322	400	80	4/20	340	150	185	133	30	30
QK3-15"L	400	480	100	4/20	430	150	220	148	35	43
