Product Details

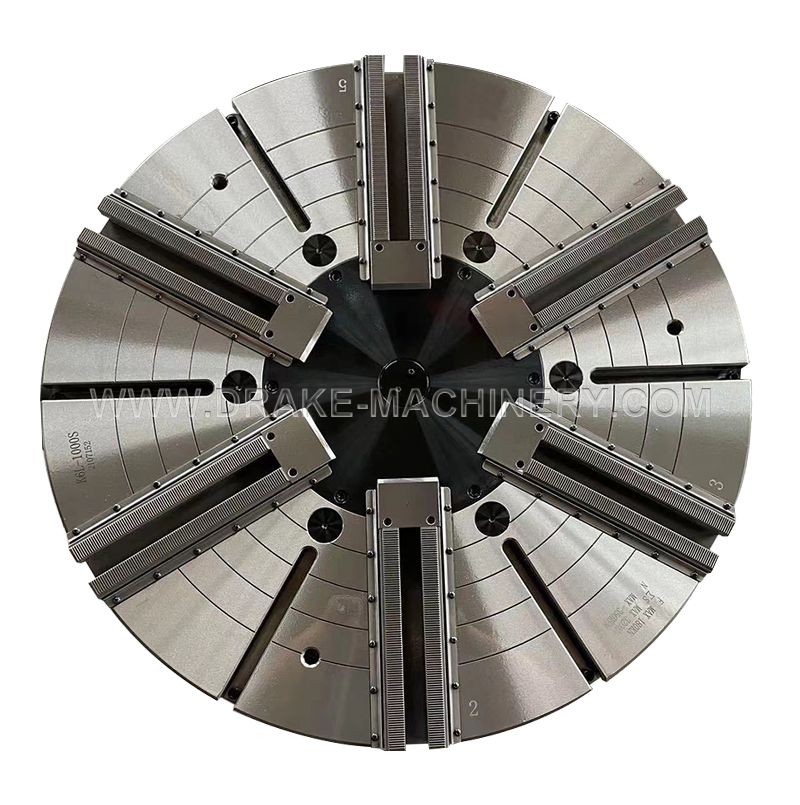

KL series vertical lathe chucks are suitable for vertical lathes. The end of the disk body is sealed to prevent iron filings and cutting water from entering the inside of the chuck, extending the service life of the chuck. It can also be used for three, four, and six jaws according to user special requirements the design of. And can be equipped with various forms of flanges according to requirements.

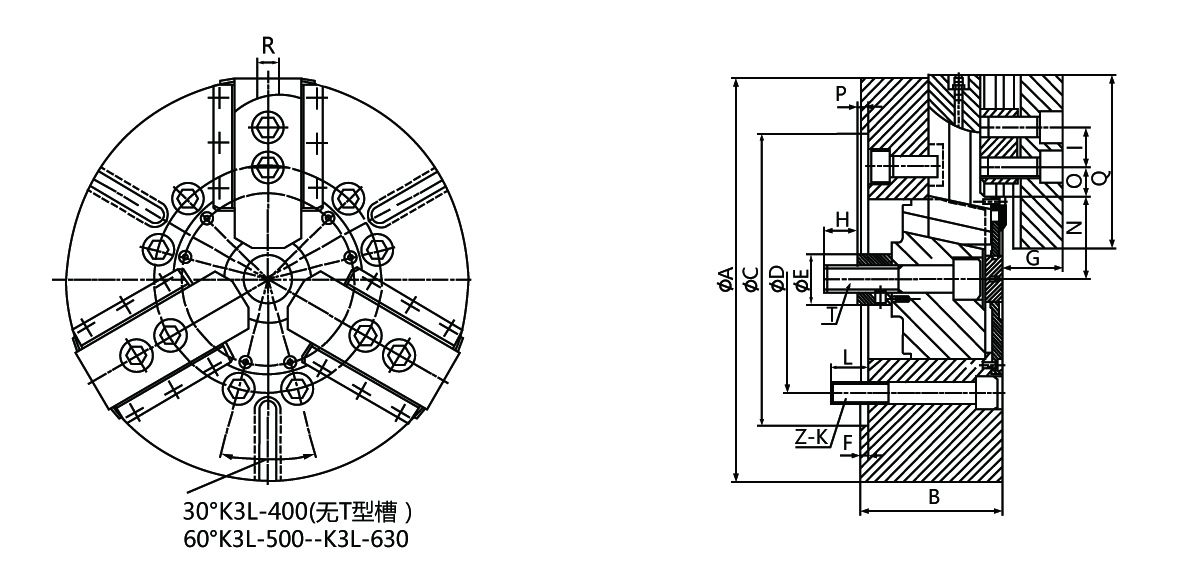

Product Size
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | |||||||
| Model | Wedge sleeve stroke （mm） | Jaw stroke （mm） | Maximum push-pull force （kn） | maximum clamping force （kn） | maximum speed （r.p.m） | Equipped with oil cylinder | |
K3L | 400 | 35 | 14.8 | 81 | 245 | 1600 | SH150 |
| 500 | 33 | 17.6 | 81 | 245 | 1200 | SH150 | |
| 630 | 38 | 20.3 | 81 | 245 | 1000 | SH200 | |
| 810 | 35 | 18.7 | 90 | 225 | 800 | SH200 | |
| 1000 | 57 | 30.5 | 180 | 320 | 500 | SH250 | |
| Size parameters | |||||||||||
| Model | A | B | C | D | E | F | G | H | I | Z-K | |
K3L | 400 | 400 | 125 | 300 | 235 | 60 | 6 | 76 | 57 | 43 | 6-M20 |
| 500 | 500 | 130 | 380 | 330.2 | 60 | 6 | 76 | 52 | 43 | 6-M24 | |
| 630 | 630 | 132 | 380 | 330.2 | 60 | 6 | 76 | 61 | 43 | 6-M24 | |
| 810 | 810 | 135 | 380 | 330.2 | 60 | 6 | 101 | 60 | 60 | 6-M24 | |
| 1000 | 1000 | 180 | 520 | 463.6 | 70 | 8 | 114 | 65 | 60 | 6-M24 | |
| Model | L | N | O | P | Q | R | T | Comb Teeth | ||||
| MAX | MIN | MAX | MIN | MAX | MIN | |||||||
K3L | 400 | 23 | 94.5 | 87.1 | 50 | 25 | 44 | 9 | 160 | 25 | M30 | 1.5*60° |
| 500 | 34 | 108.5 | 99.7 | 88 | 25 | 37 | 4 | 180 | 25 | M30 | 2.5*90° | |
| 630 | 32 | 108.5 | 98.4 | 152 | 25 | 31 | -7 | 180 | 25 | M30 | 2.5*90° | |
| 810 | 37 | 117 | 107.7 | 212 | 33 | 89 | 54 | 225 | 25 | M30 | 2.5*90° | |
| 1000 | 42 | 208.5 | 193.3 | 199 | 37 | 22 | -35 | 240 | 30 | M36 | 3*60° | |
-
