Product Details

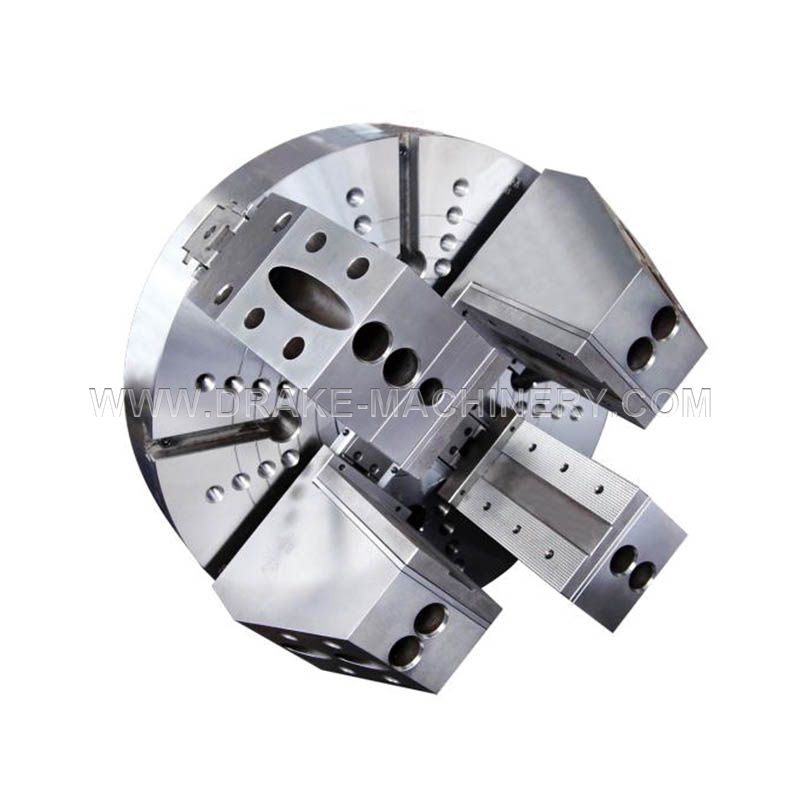

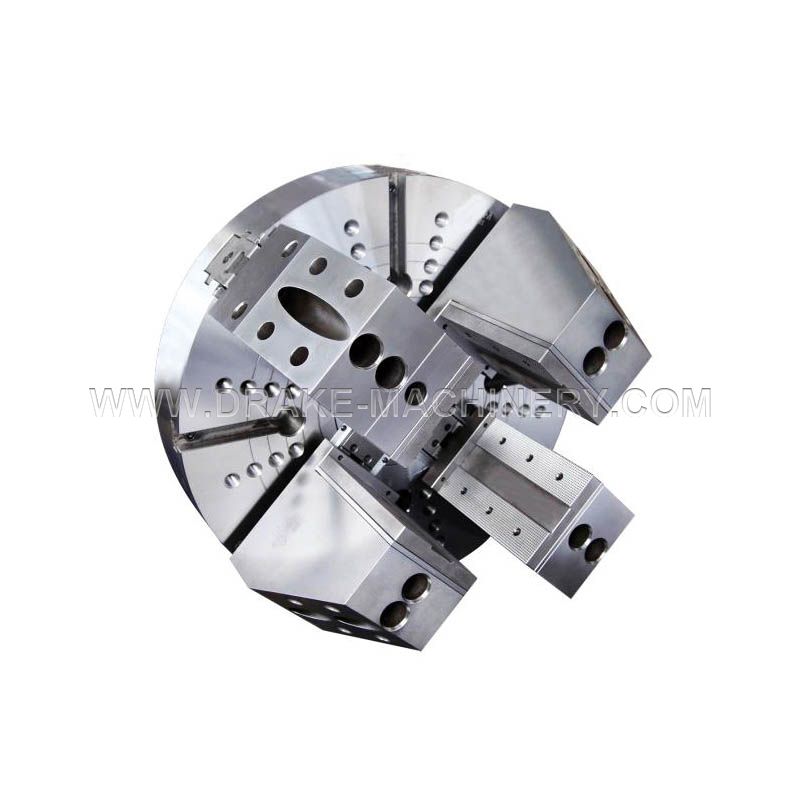

K4L series breaker chucks are suitable for use on lathes for processing breaker cylinders. We can specially design special jaws according to the workpieces processed by users, which can realize one set of jaws for processing several different sizes of workpieces. If need can install oil cylinders, hydraulic stations, etc., and can provide various forms of flange according to the requirements.

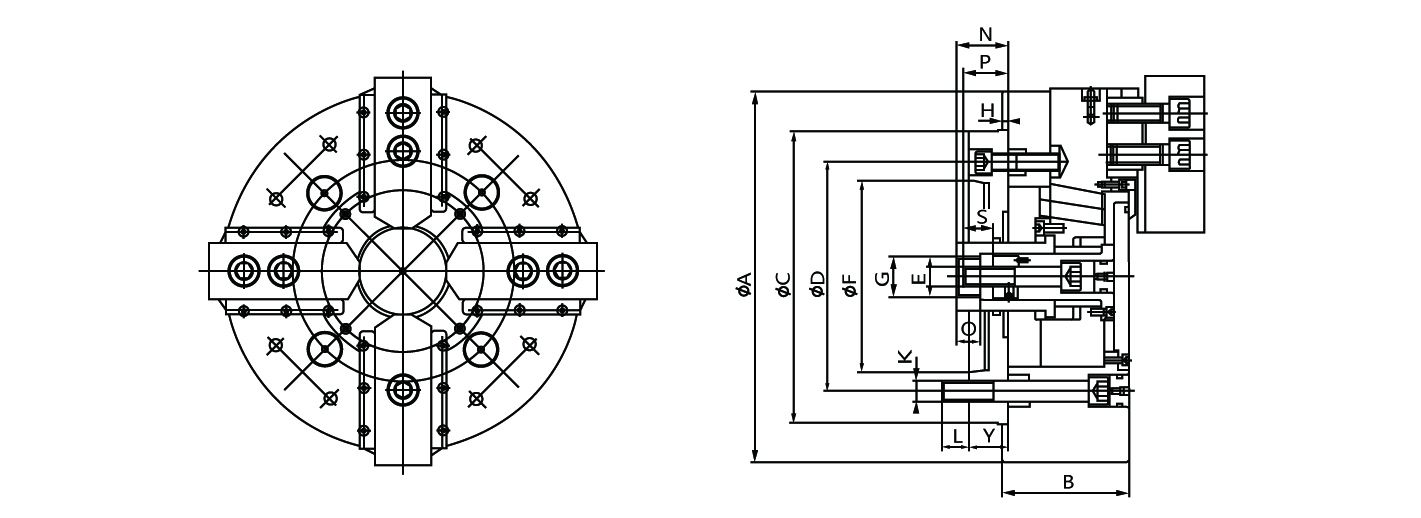

Product Size
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | |||||||
| Model/Specification | Wedge sleeve stroke（mm) | Jaw stroke（mm） | Maximum push-pull force（KN) | maximum clamping force（KN) | maximum speed（r.p.m) | Equipped with oil cylinder | |
| K4L | 500 | 33 | 17.6 | 81 | 245 | 900 | SH200 |
| 630 | 38 | 20.3 | 81 | 245 | 700 | SH200 | |
| 800 | 40 | 21.4 | 81 | 245 | 500 | SH200 | |
| 910 | 57 | 30.5 | 92 | 276 | 400 | SH250 | |
| 1000 | 57 | 30.5 | 92 | 276 | 300 | SH250 | |
| Size parameters | |||||||||||||
| Model | A | B | C | D | E | F | G | H | I | J | Z-K | L | |
K4L | 500 | 500 | 130 | 380 | 330.2 | 60 | 6 | 248 | 62 | 43 | 100 | 4-M24 | 32 |
| 630 | 630 | 132 | 380 | 330.2 | 60 | 6 | 268 | 61 | 43 | 140 | 4-M24 | 36 | |
| 800 | 800 | 152 | 520 | 463.6 | 70 | 8 | 386 | 65 | 50 | 150 | 8-M24 | 38 | |
| 910 | 910 | 180 | 520 | 463.6 | 70 | 8 | 376 | 65 | 50 | 150 | 8-M24 | 38 | |
| 1000 | 1000 | 180 | 520 | 463.6 | 70 | 8 | 376 | 65 | 50 | 150 | 8-M24 | 38 | |
| Model/Spec | M | N | O | P | Q | R | S | T | U | comb teeth | ||||
| MAX | MIN | MAX | MIN | MAX | MIN | |||||||||
K4L | 500 | 200 | 108.5 | 99.7 | 88 | 25 | 37 | 4 | 170 | 25 | 115 | M30 | 240 | 2.5*90° |
| 630 | 220 | 108.5 | 98.4 | 152 | 25 | 31 | -7 | 205 | 25 | 125 | M30 | 260 | 2.5*90° | |
| 800 | 340 | 158 | 147.3 | 129 | 32 | 45 | 5 | 204 | 30 | 215 | M36 | 380 | 3.0*60° | |
| 910 | 340 | 158.5 | 143.2 | 136.5 | 32 | 45 | -12 | 252 | 30 | 270 | M36 | 380 | 3.0*60° | |
| 1000 | 340 | 158.5 | 143.2 | 161.5 | 32 | 45 | -12 | 252 | 30 | 305 | M36 | 380 | 3.0*60° | |
-
