Why Use A Power Chuck?

1. What is a Power Chuck?

2. Advantages

3. Applications

3.1 Drilling/milling

3.2 Turning

What is a Power Chuck?

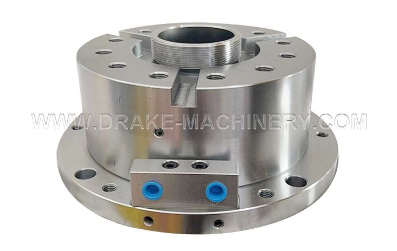

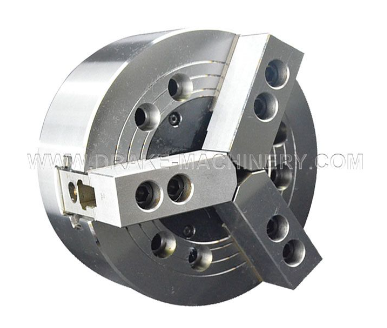

The power chuck is a work-holding device that uses jaws (typically 3 or 4 jaws) to secure the workpiece. The clamping force comes from an automated power source (mechanical, electrical, or other mechanisms), hence the name. Such a work-holding approach is designed primarily for cylindrical objects with radial symmetry and it comes with several advantages.

Advantages

The main advantage of a power chuck is its efficiency. The design allows the chuck to clamp much faster, which makes it an ideal choice for high-volume production. When it comes to large-volume production, manual clamping approaches greatly increase the time. This is why power chucks are often the better choice when efficiency is the top concern.

Another advantage is that there are various jaw designs to choose from. The modern models allow different jaws to be installed depending on the actual requirement (workpiece type, specification, etc.). If you happen to own a workshop, you've probably already learned that selecting the right tool for the right task is more important than anything.

Applications

A great number of machining processes today involve the use of power chucks, including drilling, milling, turning, just to name a few. They not only clamp the workpieces but also the tooling of machine tools. In the following section, we will focus the use of power chucks on these three processes.

Drilling/milling

Power chucks can hold rotating cutting tools, such as drill bits and milling cutters, or serve as additional support to the workpiece. For example, a chuck is installed on the tailstock of a turning lathe to support a long (or large) workpiece. When the chuck is used to hold a workpiece in place for drilling/milling, it does not spin. If it clamps a drill bit or a milling cutter, it spins (driven by the spindle) to perform the cutting process.

Turning

In lathe turning, the power chuck is mounted onto the spindle in the headstock. Workpiece spinning machines and tool spinning machines have some similar functions and outstanding processing characteristics. For example, in a lathe, the power chuck and cylinder system work together to execute the clamping mechanism, and the assembly of the two determines the output precision of the machine.

Compared with other machine tools, turning machines are one of the oldest machine tools with thousands of years of history. Lathes can be divided into two main types according to the way it grips the workpiece.

The two types are vertical lathe and horizontal lathe. In a vertical lathe, the workpiece is clamped vertically, and the cutting tool is installed in the same direction so that the machining is performed vertically. Compared with horizontal lathes, the vertical clamping mechanism is more stable. Therefore, vertical lathes are often developed for high precision machinings, such as automotive parts, aerospace parts, sports facilities, or some large workpiece processing tasks.

For vertical clamping, the lathe spindle is located behind the chuck. The spindle may be driven by a belt or other drive mechanisms. Like milling machines and machining centers, lathes can also be equipped with powered tools and tool magazines to improve their functionality and versatility and provide users with a wider range of machining possibilities. For horizontal clamping, on the other hand, the spindle of a horizontal lathe is parallel with the floor. While is it often considered the more prevalent of the two, both vertical and horizontal clamping offers their own advantages.

Should you run into any difficulties, please do not hesitate to contact us.
