A collet chuck is a versatile and precise tool used in machining to hold workpieces or cutting tools securely. It is an essential component in various manufacturing processes, ensuring stability and accuracy. This article explores the nature, types, applications, and benefits of collet chucks.

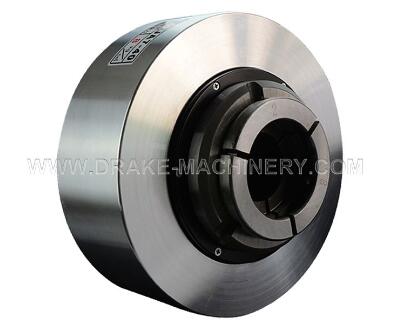

A collet chuck consists of a cylindrical sleeve (collet) and a clamping mechanism (chuck). The collet has a series of slits that allow it to expand and contract, creating a tight grip around the workpiece or tool when clamped. This mechanism provides excellent concentricity and repeatability, making it ideal for high-precision machining tasks.
Construction: Collet chucks are typically made from high-strength materials such as hardened steel or carbide, ensuring durability and long-term performance. The collet itself is designed to deform elastically, providing a firm grip while minimizing damage to the workpiece or tool.
Operation: When the chuck is tightened, the collet contracts around the workpiece or tool, holding it securely in place. This clamping force is evenly distributed, reducing the risk of slippage and ensuring accurate machining.
There are several types of collet chucks, each designed for specific applications and machinery. Understanding the different types helps in selecting the appropriate collet chuck for a given task.
ER Collet Chucks: ER collet chucks are among the most common and versatile. They are used in milling, drilling, and tapping operations. ER collets can accommodate a wide range of tool sizes, making them highly adaptable.
R8 Collet Chucks: R8 collet chucks are commonly used in milling machines, particularly in older or smaller mills. They provide a secure grip and are easy to change, making them popular in various machining operations.
5C Collet Chucks: 5C collet chucks are used primarily in lathe operations for holding small workpieces or bar stock. They offer high precision and are widely used in metalworking and woodworking industries.
TG Collet Chucks: TG collet chucks, or taper grip collet chucks, provide high clamping force and are used in heavy-duty machining operations. They are suitable for applications requiring strong holding power and rigidity.
Collet chucks are used in a variety of machining applications, thanks to their precision and versatility.
Milling: In milling operations, collet chucks are used to hold end mills, drills, and other cutting tools. Their high accuracy ensures precise cuts and fine finishes.
Turning: On lathes, collet chucks hold workpieces securely, allowing for accurate turning and facing operations. They are ideal for small-diameter workpieces and high-speed operations.
Grinding: In grinding machines, collet chucks hold grinding wheels and workpieces, ensuring stable and precise grinding processes. They are essential for achieving tight tolerances and fine surface finishes.
Drilling: Collet chucks are also used in drilling operations to hold drill bits securely. Their even clamping force prevents bit slippage, resulting in accurate and efficient drilling.
Using collet chucks in machining operations offers several advantages, making them indispensable tools in the manufacturing industry.
Precision: Collet chucks provide high concentricity, ensuring that the workpiece or tool is held accurately and reducing runout. This precision is crucial for achieving tight tolerances and high-quality finishes.
Versatility: With various types and sizes available, collet chucks can accommodate a wide range of tools and workpieces. This versatility makes them suitable for numerous machining applications.
Ease of Use: Collet chucks are easy to set up and change, improving workflow efficiency. Quick tool changes reduce downtime and increase productivity in manufacturing processes.
Secure Clamping: The even clamping force of collet chucks minimizes the risk of slippage and damage to the workpiece or tool. This secure grip is essential for maintaining accuracy and safety in machining operations.
A collet chuck is a vital tool in machining, providing precision, versatility, and secure clamping for various applications. Understanding the different types and benefits of collet chucks helps in selecting the right one for specific tasks, enhancing efficiency and accuracy. For more information or to source high-quality collet chucks, contact us for expert guidance and assistance. As a trusted supplier, we are committed to providing the best tools tailored to your specific needs.
