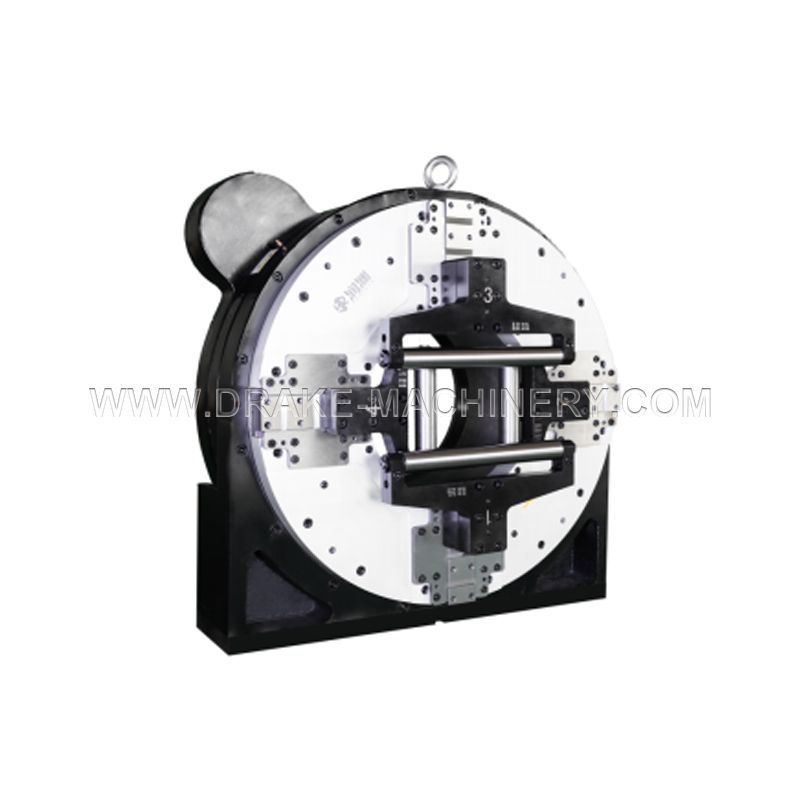

Product Details

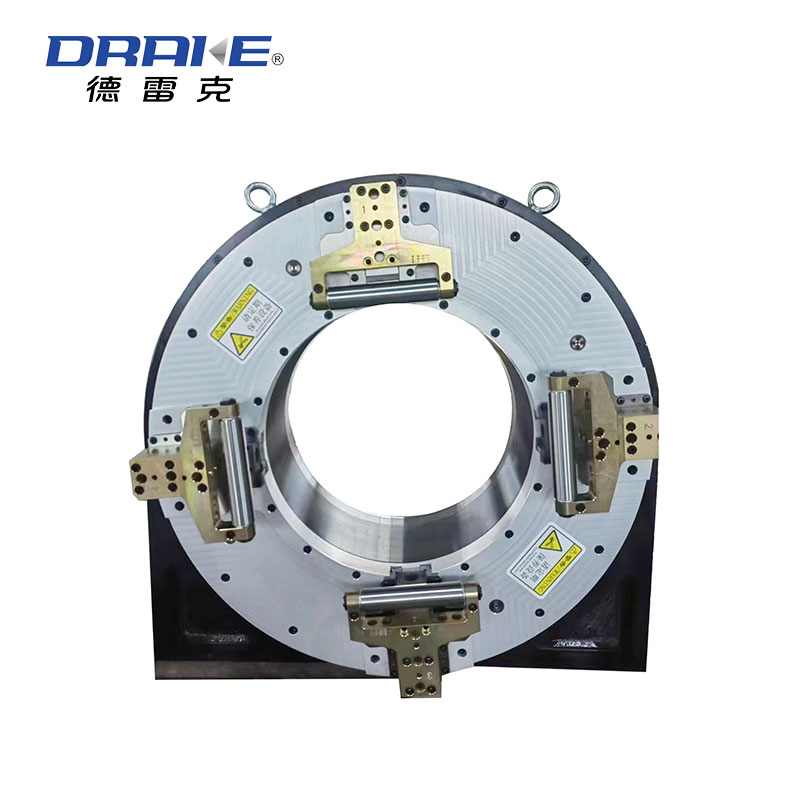

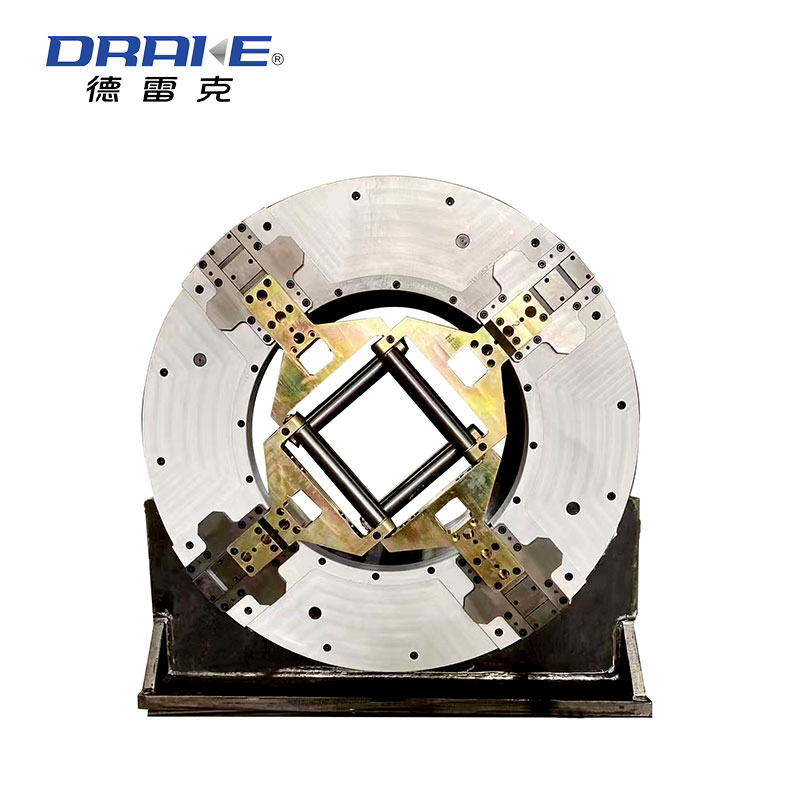

Optional chuck claw
（1）Standard Jaw;(2) Other specifications customization
（2）Jaw gripping range:first position:20-140mm; second position: 135-255mm; third position: 250-365mm.
Recommended gear
Driven gear:RY370-00-0080 driven gear (Mn4Z192)
Drive gear: RY370-00-0070 drive gear (Mn4Z32), the drive gear can be custom made.
uRecommended speed reducer and motor power
Recommended reducer: Xinbao VRB-140 reducer speed ratio: 7
Recommended motor power: 5.5KWu

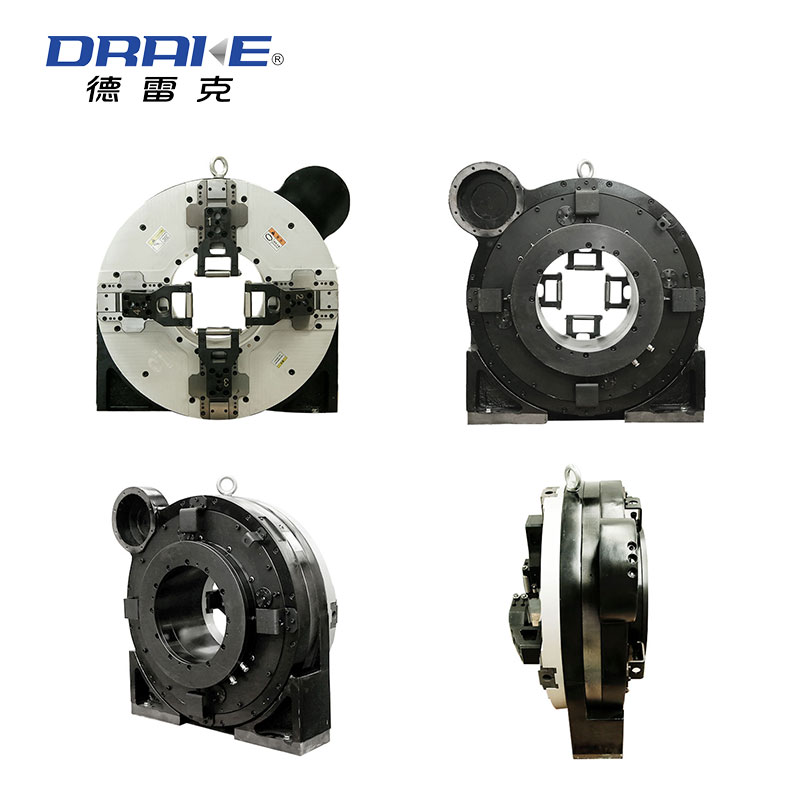

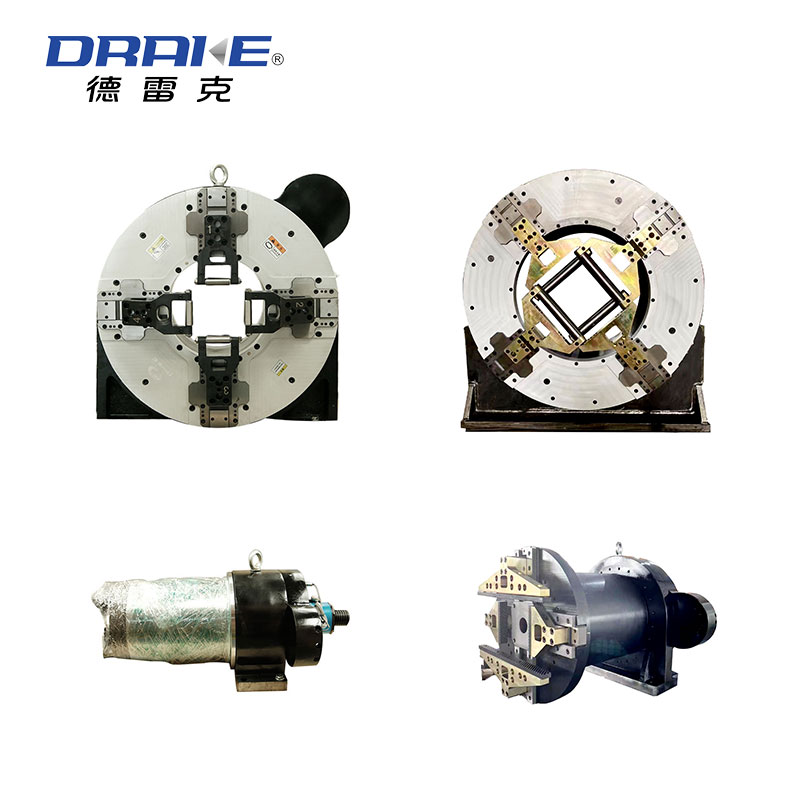

Structural features:
1. One-piece fully enclosed helical gear transmission structure: higher dustproof performance and operational stability, longer service life and better user experience;
2. Convenient concentricity debugging and locking components: allow end users to easily correct the rotational concentricity of the whole machine, and enhance the accuracy and stability of the whole machine;
3. Standard claw opening in-position induction detection: The short tail cutting mode is safer, realizes automatic short tail cutting, and reduces the risk of collision of the whole machine;
4. Structural design of automatic chip removal and ash removal of the slider: automatic chip removal when the chuck is clamped, reducing the possibility of jamming and reducing the need for manual cleaning and maintenance;
5. Self-contained channel steel I-beam jaws: up to 28 gauge I-beam and 28 gauge channel steel.

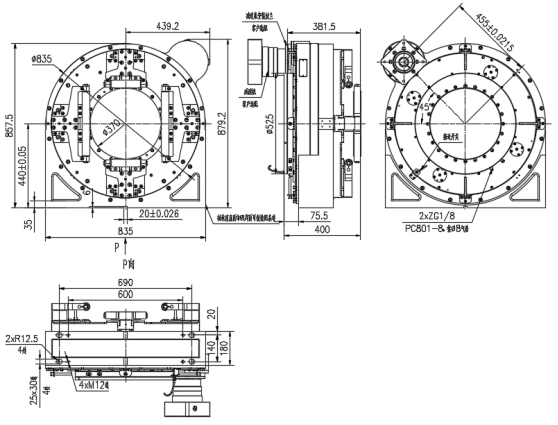

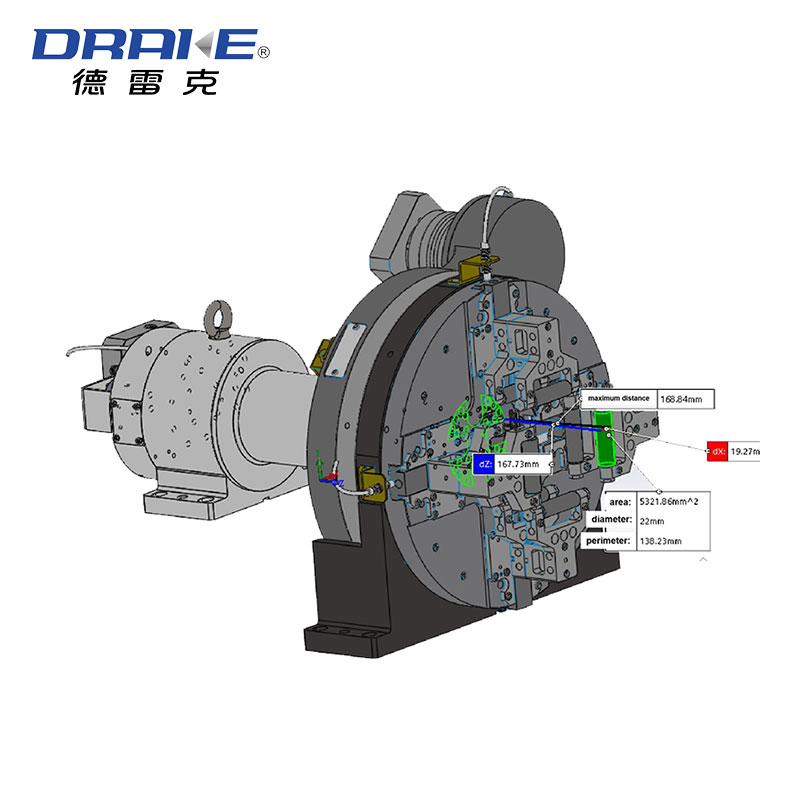

Product Size
Product Parameters
| Specification | Outer Diameter( mm) | Spindle Bore(mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ835 | Φ370 | 440±0.05 | 562 | 200000 | ≤0.05 | ≤0.05 | |
| RY350-00-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | Holdup Time (h) | IP Grade |
| 60 | 9.2±10% | Φ20-φ365 | 0.4-0.9 | 150 | 12 | / |
| Appropriative jaws can be customized according to pipe fittings | |
| Standard option | GB / T3094-2000 Cold drawn special-shaped steel pipe, GB / T706-2008 Hot-rolled Steel, GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation |
| Chuck model | RY350 Front chuck |
| Clamping range | 20-365mm (the specification is within the allowable load-bearing range)( first position:20-140mm; second position: 135-255mm; third position: 250-365mm) |
| Standard jaw roller length | 155mm |
| Lengthen jaws | 335mm |
| Round Tube | 20-365mm |
| Square Tube | The circumscribed circle is less than 365mm square tube (the maximum square tube is 250mm) |
| Rectangular Tube | The minimum short side is 20mm, and the circumscribed circle is less than 365mm rectangular tube (maximum size 250*200) |
| Oval Tube/Flat Oval Tube | The minimum short axis is 20mm, and the long axis is less than 250mm oval tube |
| I-beam | With Lengthen jaws：Holds up to No.32 gauge I-beams |
| Channel steel | With Lengthen jaws：Holds up to No.32 Channel steel |
| Equilateral angle steel | With standard jaws：Maximum clamping equilateral angle steel No. 14 |
| Other specifications customization | |
| Unequal angle steel | With standard jaws：Clamping No.3.2/2-No.14/9 unequal angle steel |
| Other specifications customization | |
-
