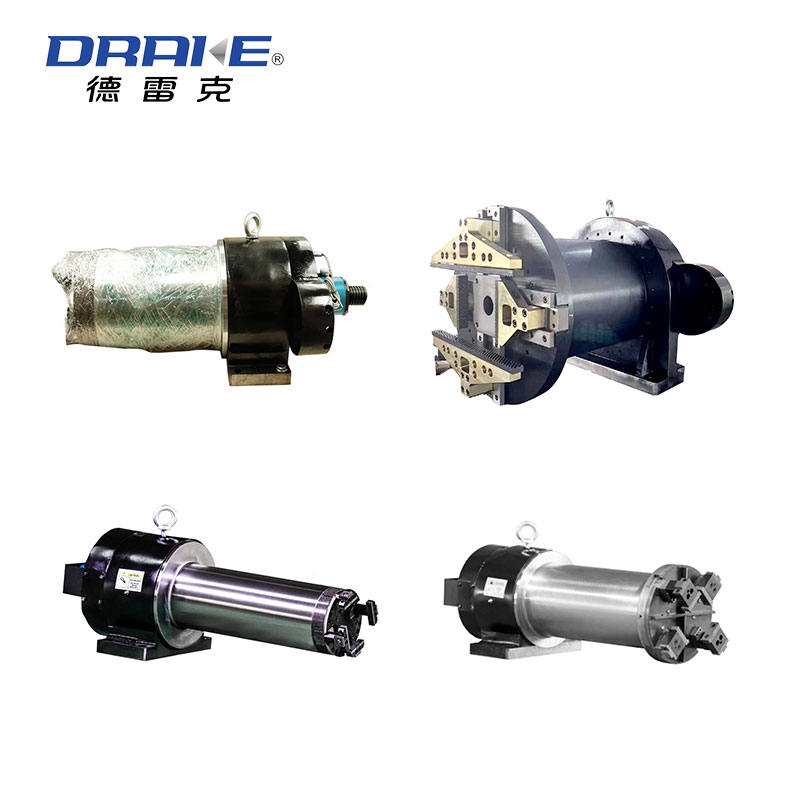

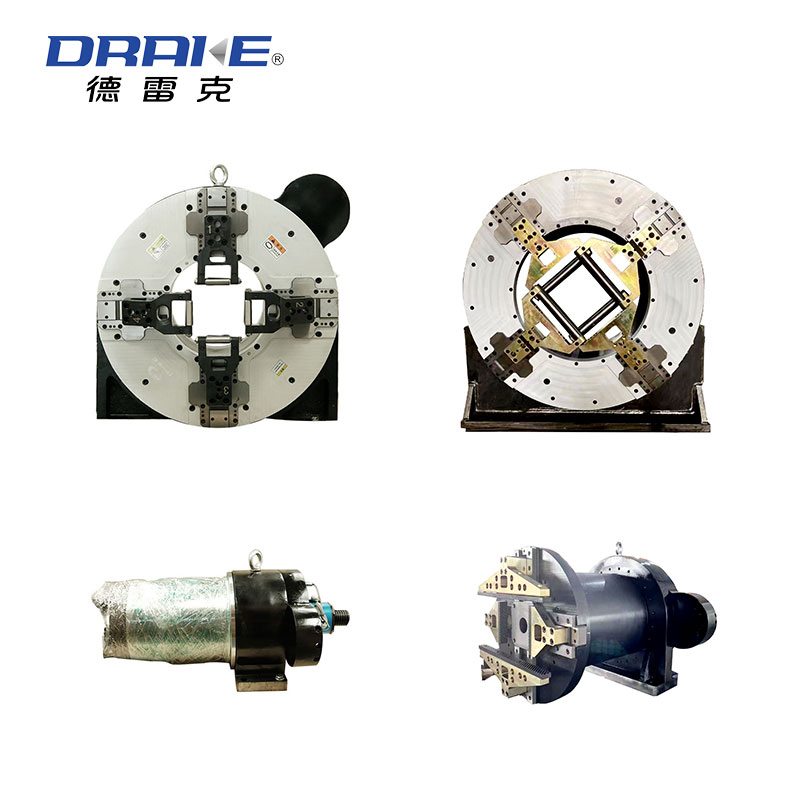

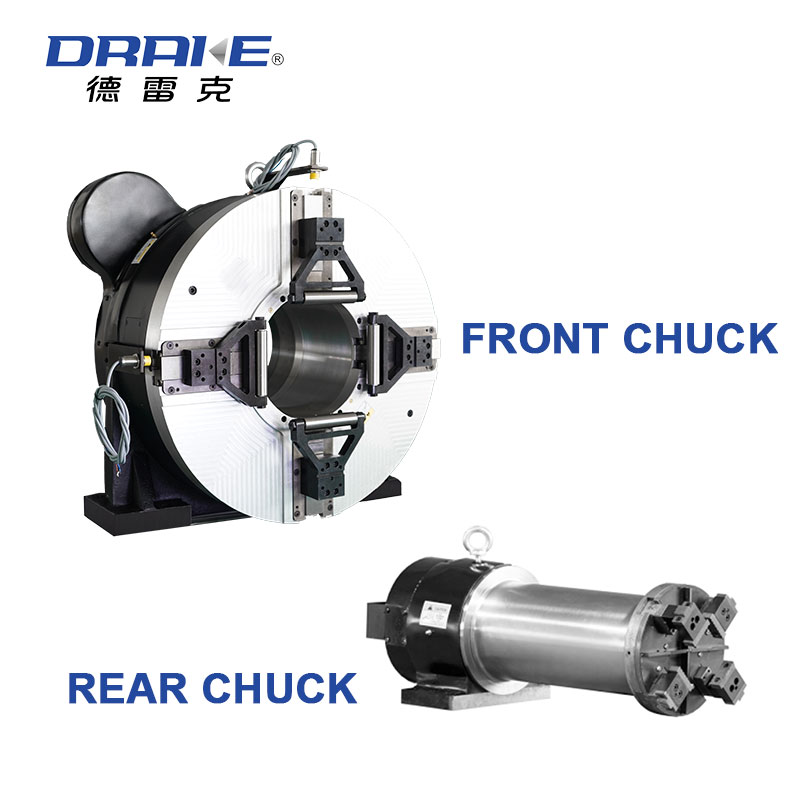

Product Details
Optional chuck claw
（3）Standard claw;Optional jaws:I-beam and Channel steel jaw;
（4）Claw gripping range:
Recommended gear
Driven gear: RY240-10-0060 driven gear (Mn2.5Z72)
Drive gear: RY240-10-0070 Active gear (Mn2.5Z24), the drive gear can be customizable.
uRecommended speed reducer and motor power
Recommended reducer: Xinbao VRB-090, reducer speed ratio:7
Recommended motor power: 1.8KW

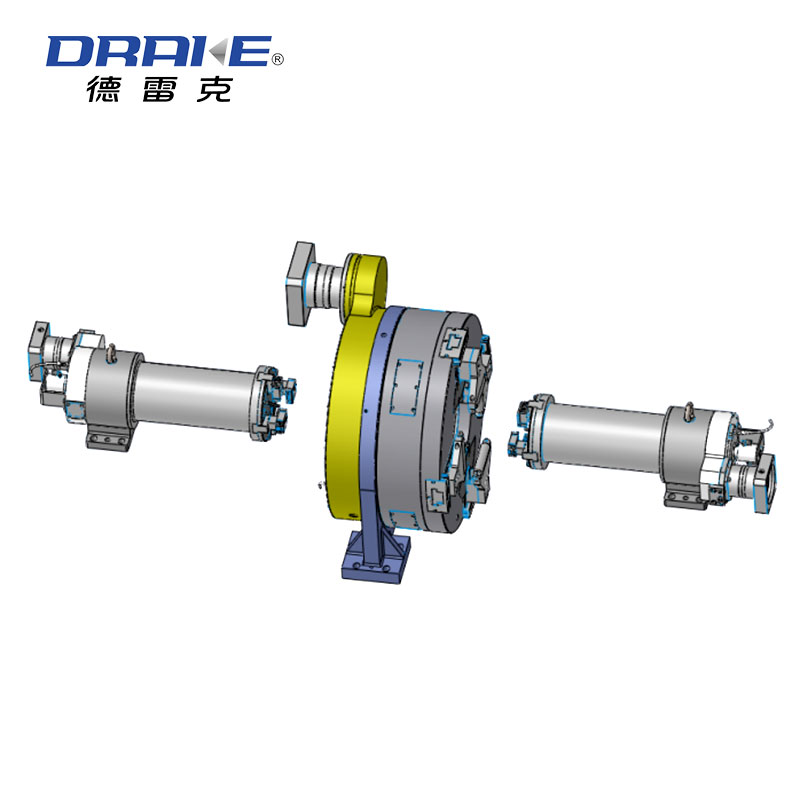

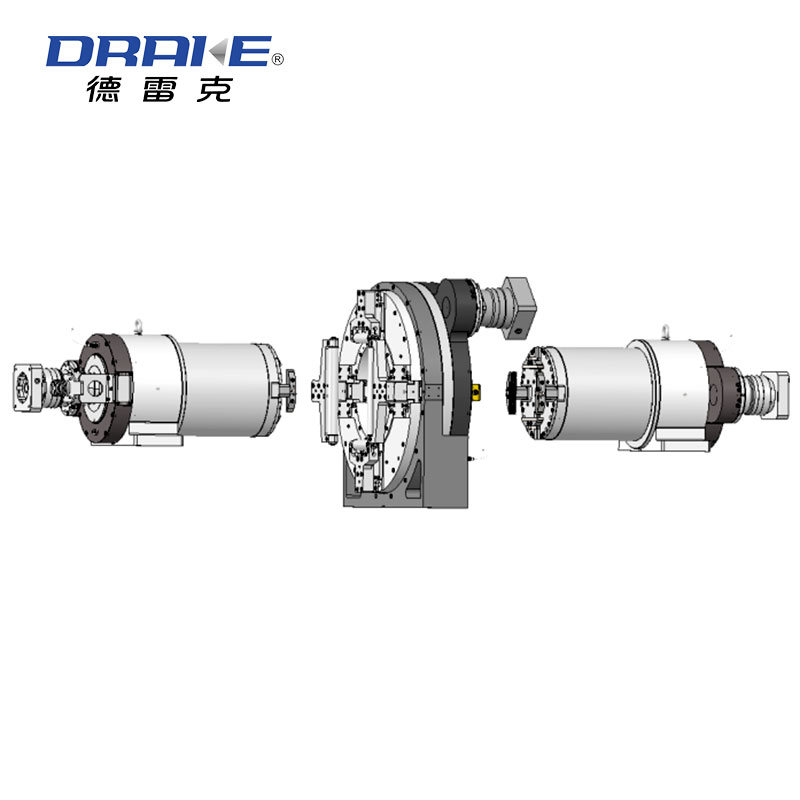

Structural features:
1. One-piece fully enclosed helical gear transmission structure: higher dustproof performance and operational stability, longer service life and better user experience;
2. Universal installation dimensions of the whole series: RY130, RY160, RY220 series of universal dimensions of the rear chuck, saving the cost of bed management for each user;
3. The whole of the fine grinding chuck: The whole of the chuck is used as the reference surface for installation and positioning, which is convenient for users to install and debug;
4. Internal front cylinder transmission structure: the cylinder is directly pushed, and the clamping force is stable and reliable with the change of air pressure, which provides the basis for high bearing capacity performance;
5. Fully-sealed design of jaws: RY130. RY160. RY220 series barrel rear chuck has unique fully-sealed jaws, which reduces the possibility of jamming and reduces the need for manual maintenance.

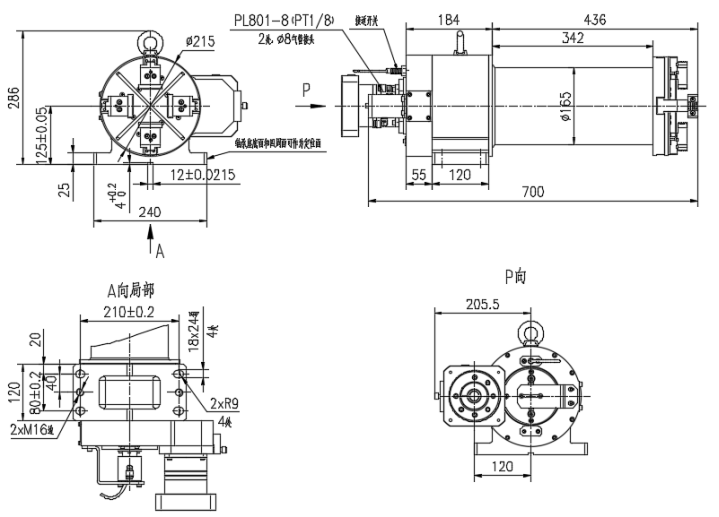

Product Size
Product Parameters
Specification | Outer Diameter( mm) | Centre-height (mm） | Total Weight （Kg） | Inertia (K g.cm ²) | Repeatability (mm) | Rotary precision (mm) |
| Φ 215 | 125±0.05 | 85 | 2900 | ≤0.10 | ≤0.10 | |
| RY220-10-0000 | Single jaw stroke( mm) | Single Claw thrust(KN) | Processing Range(mm) | Permissible pressure (M pa) | Rated speed (rpm) | IP Grade |
| 30 | 1.2±10% | 10-220 | 0.3-0.9 | 150 | / |
| Appropriative jaws can be customized according to pipe fittings | |
| Selection criteria | GB / T3094-2000 Cold drawn special-shaped steel pipe GB / T706-2008 Hot-rolled Steel GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation. |

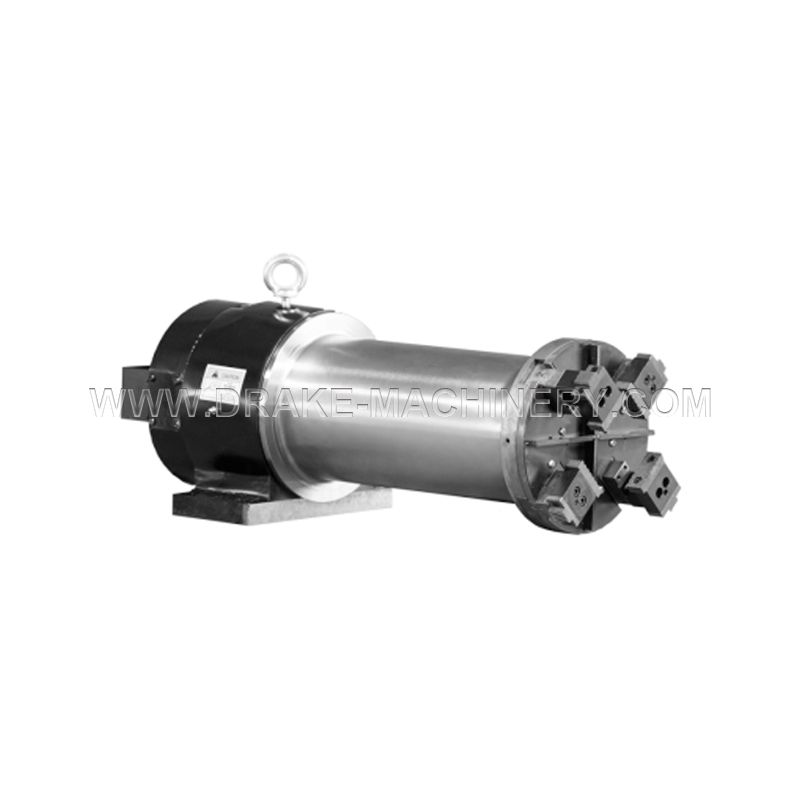

| Chuck model | RY220 rear chuck |
| Clamp range | Clamping block 1:The first position of inner clamp is10-70mm,the second position is 42-102mm; The first position of outer support is 130-190mm, the second position is 162-222mm; Clamping block 2 : The first position of inner clamp is 68-128mm, the second position is 100-160mm; Clamping block 3( with I-beam channel steel jaws): The first position of short clamp is 110-170mm, the second position is 140-200mm; long clamp is 45-105mm; (specification within the allowable load-bearing range) |
| Jaw length | Length of block 1:length of inner clamp is 50mm,length of out support is 18mm; length of block 2 is 140mm; length of block 3( with I-beam channel steel jaws) :length of short jaw is 31mm,length of long jaws is 205mm; |
| Round tube | The inner clamp is 10-160mm, and the outer support is 130-222mm; individual specifications needs to customize appropriative jaws. |
| Square tube | The maximum size of the square tube is 100x100mm with the first jaw,and 150x150mm with the second jaw ;other specifications need customized special jaws; |
| Rectangular tube | The minimum length of the short side is 10mm, and the maximum length of the long side is 200mm for rectangular tube; other specifications need to customize appropriative jaws; |
| Oval Tube/Flat Oval Tube | The minimum length of the short axis is 10mm, and the maximum length of the long axis is 200mm for oval tube; other specifications need to customize appropriative jaws; |
| I-beam | Using I-beam channel steel jaws can hold up to No. 20a I-beam; |
| Channel steel | The I-beam channel steel jaws can hold up to No. 20 channel steel; |
| Equilateral angle steel | Clamping block 1:hold up to No. 4.5; Clamping block 2:hold up to No. 12.5; other specifications need to customize appropriative jaws; |
| Unequal angle steel | Standard jaws:within No5/3.2; Clamping block 2: within No.12.5/8; other specifications need to customize appropriative jaws; |
-
